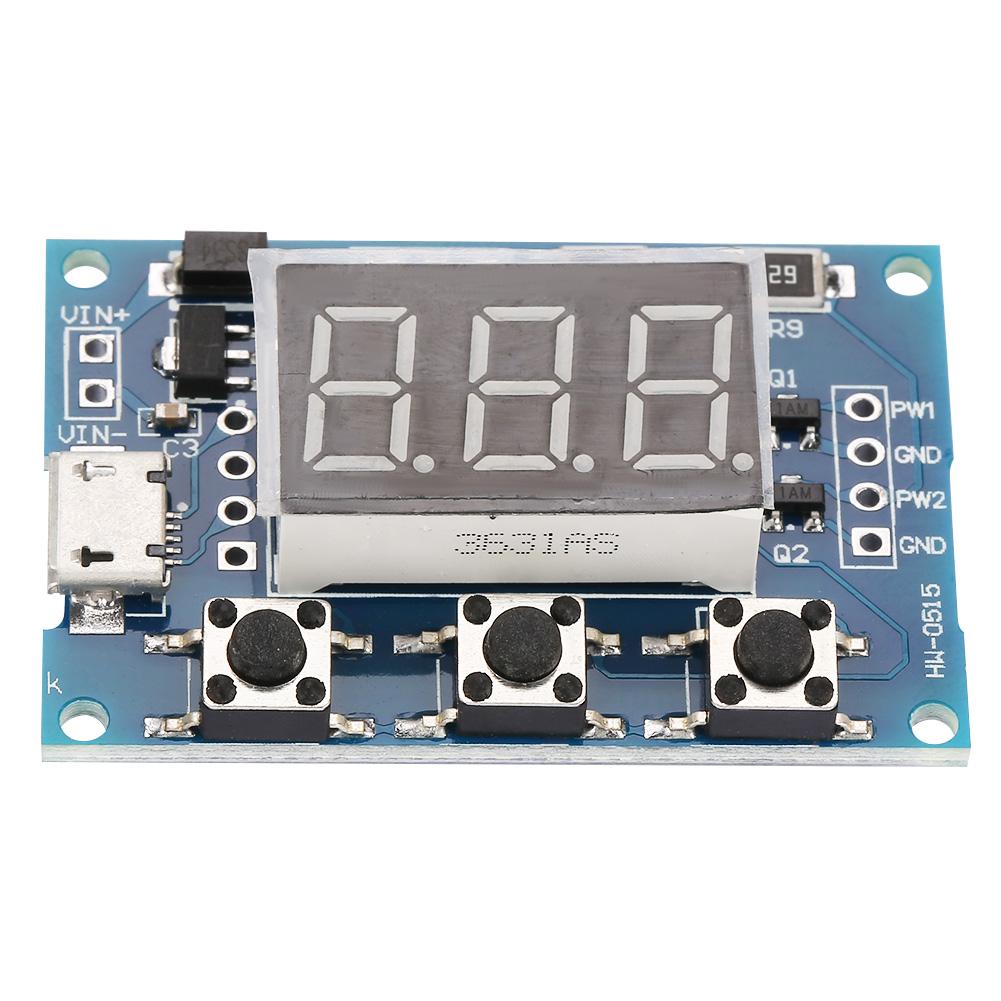

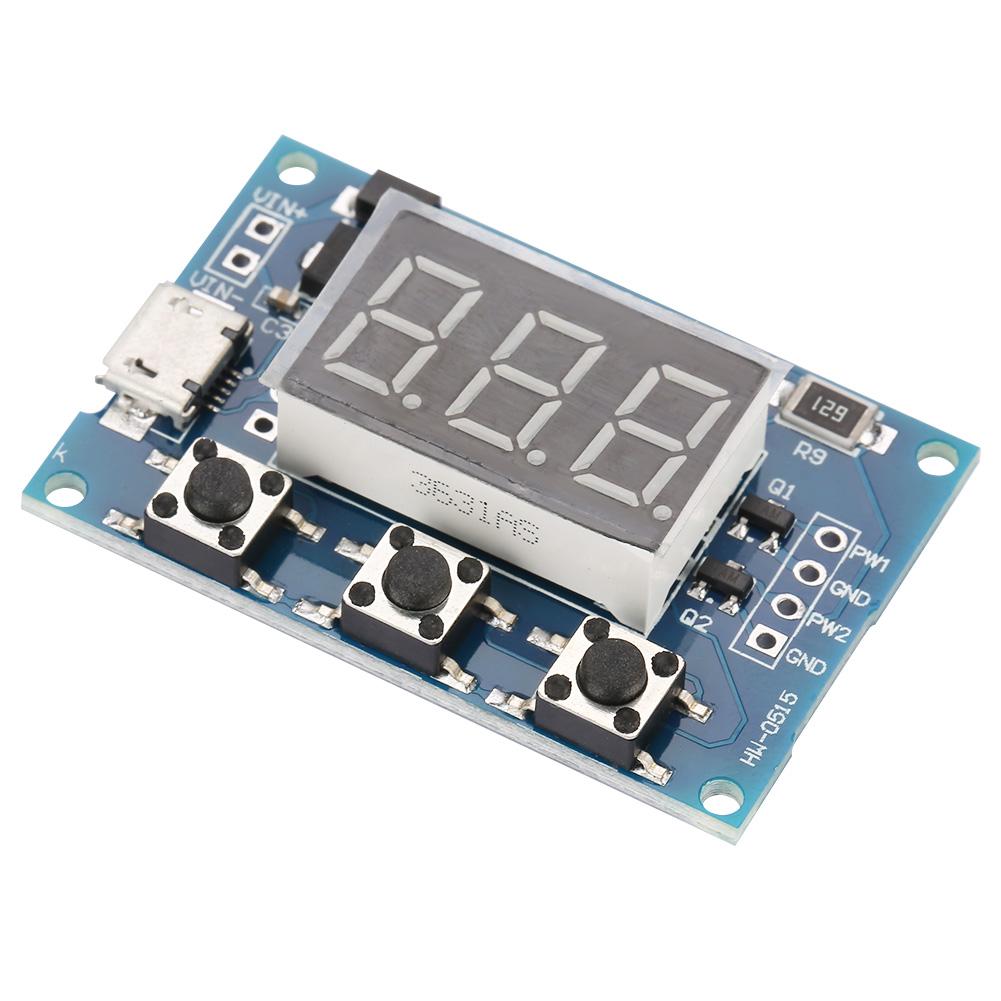

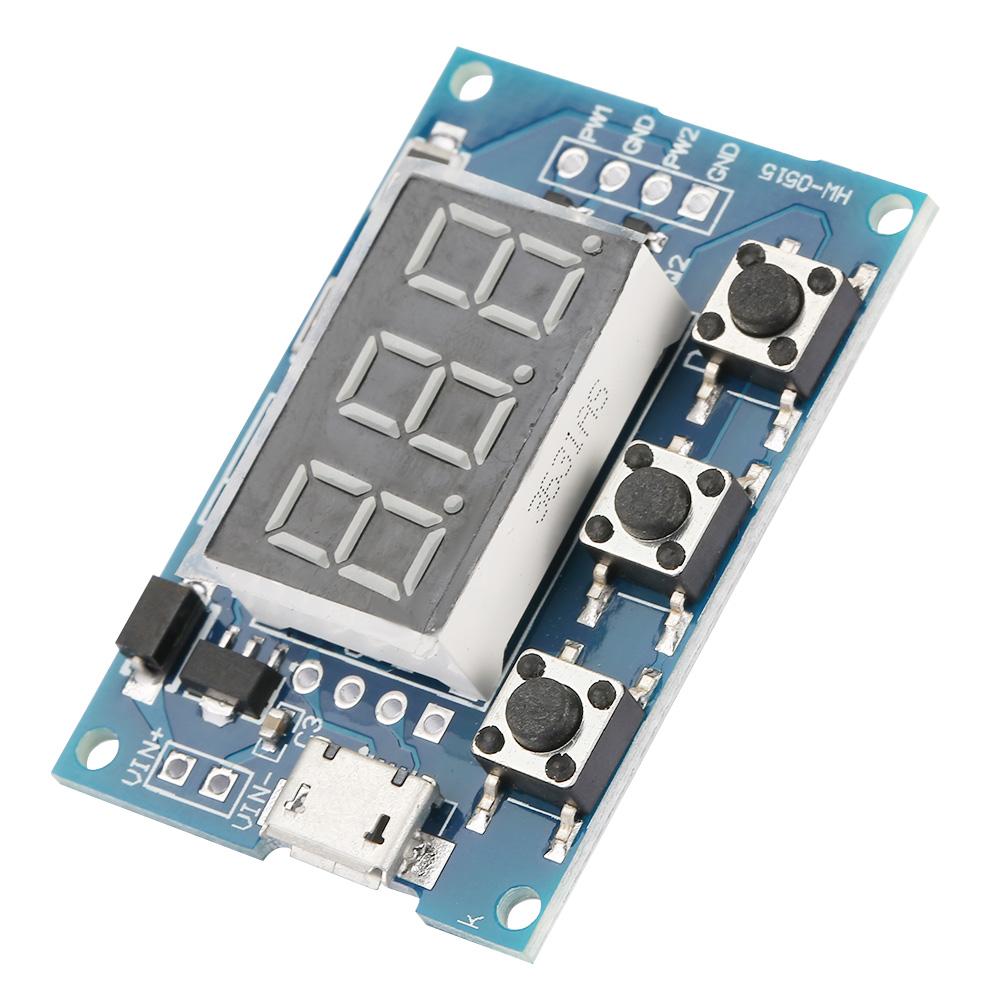

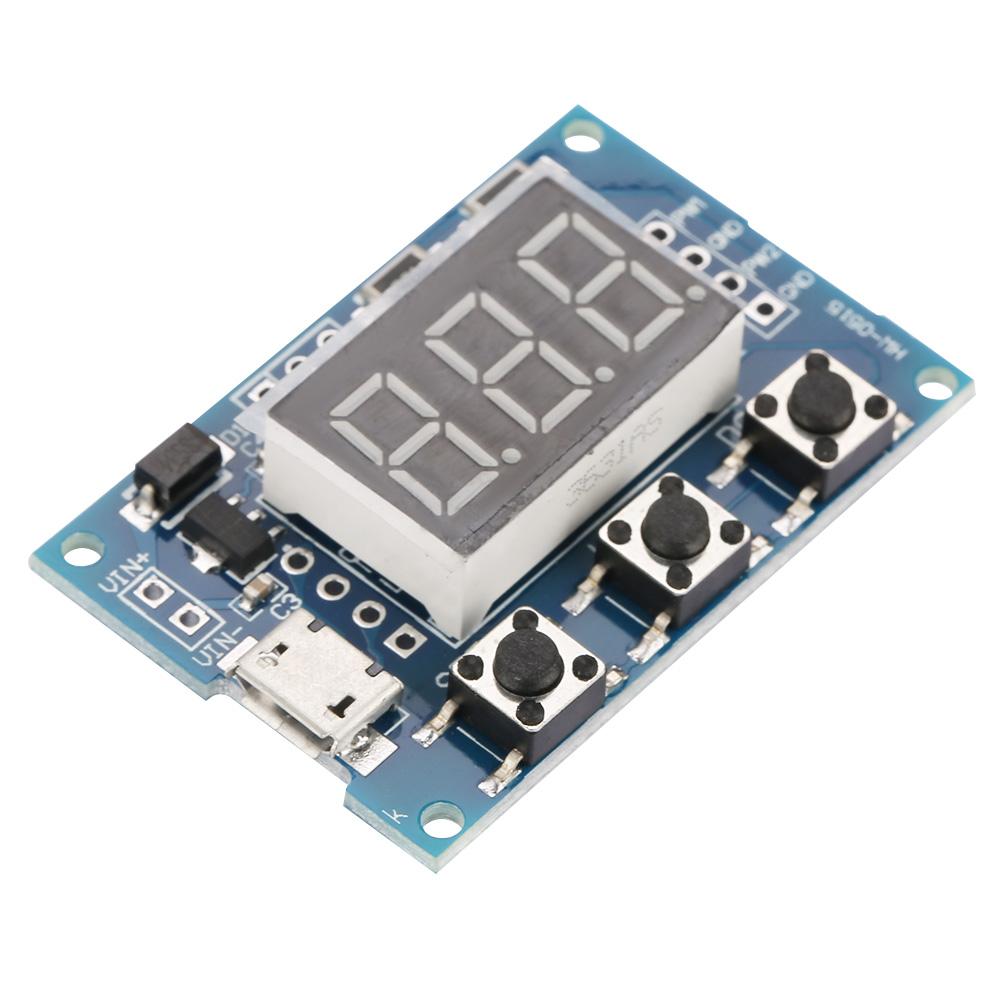

2 Channel PWM Frequency Duty Cycle Adjustable Wave Rectangle Signal Generator

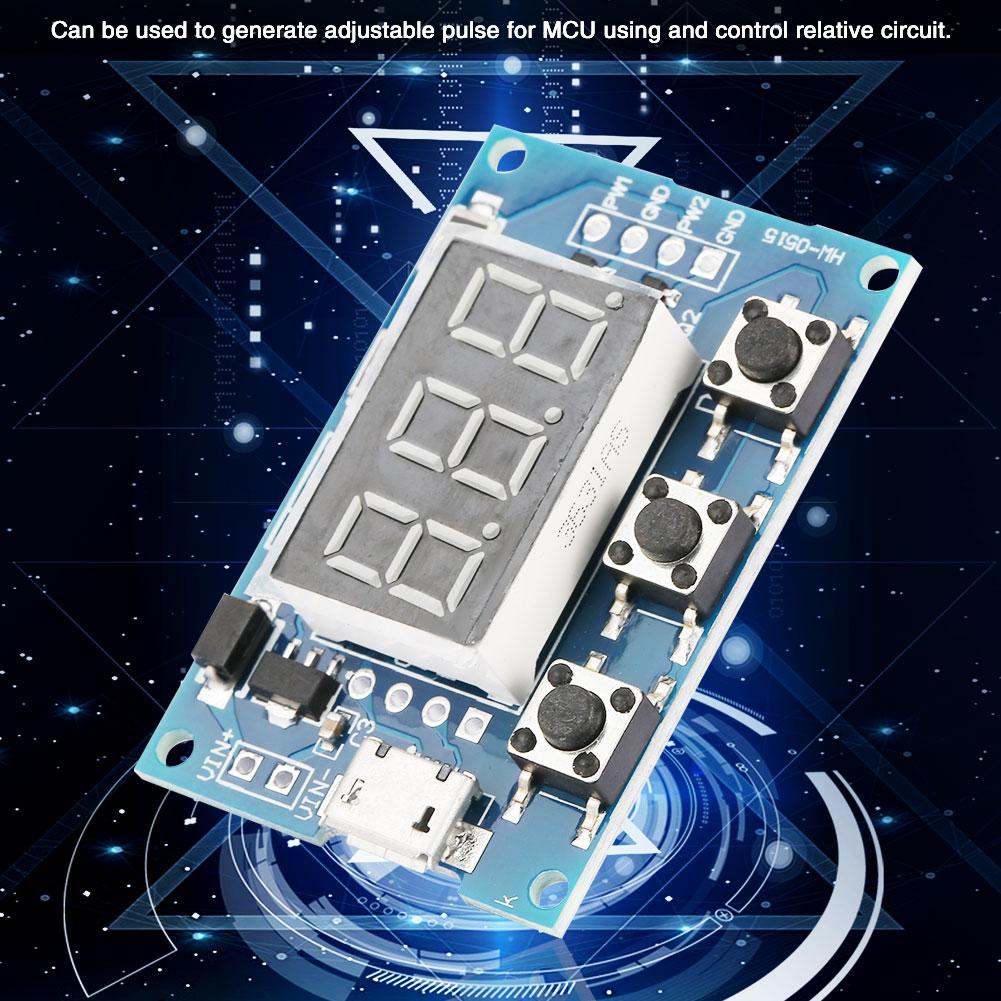

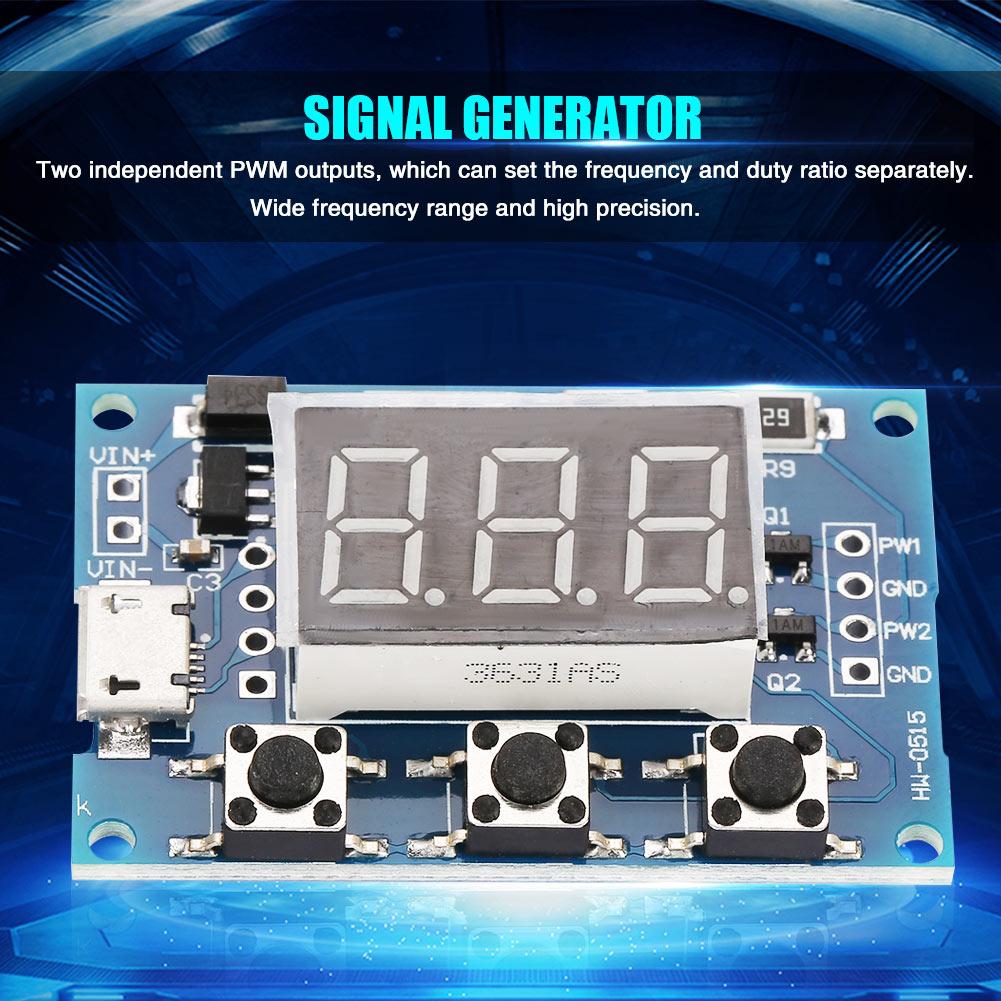

Features: 1. 100percent brand new and high quality. 2. Two independent PWM outputs, which can set the frequency and duty ratio separately. 3. Wide frequency range and high precision. 4. This product can be serial communication. 5. Can be used to generate adjustable pulse for MCU using and control relative circuit. Specification: Condition: 100percent Brand New Operating Voltage: 5 30V , support micro USB 5.0V power supply Frequency Range: 1Hz 150KHz Frequency Precision: 2percent Signal Load Capacity: Output Current is within 8 30mA Output Range: default 5V V pp (can be changed by external power) Environment Temperature: 30 70 celsius Serial Port Control: Communication Standard:9600 bps

Data Bit:8

Stop Bit:1

Verify Bit:none

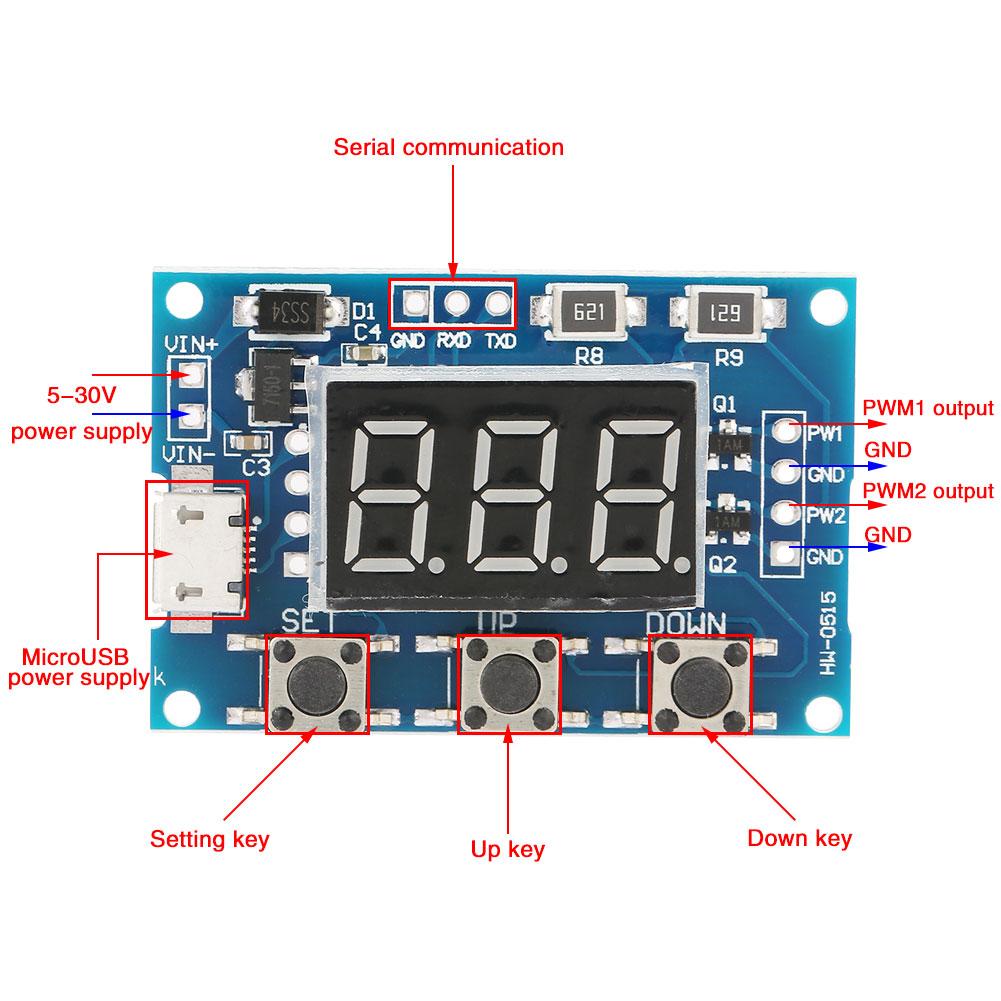

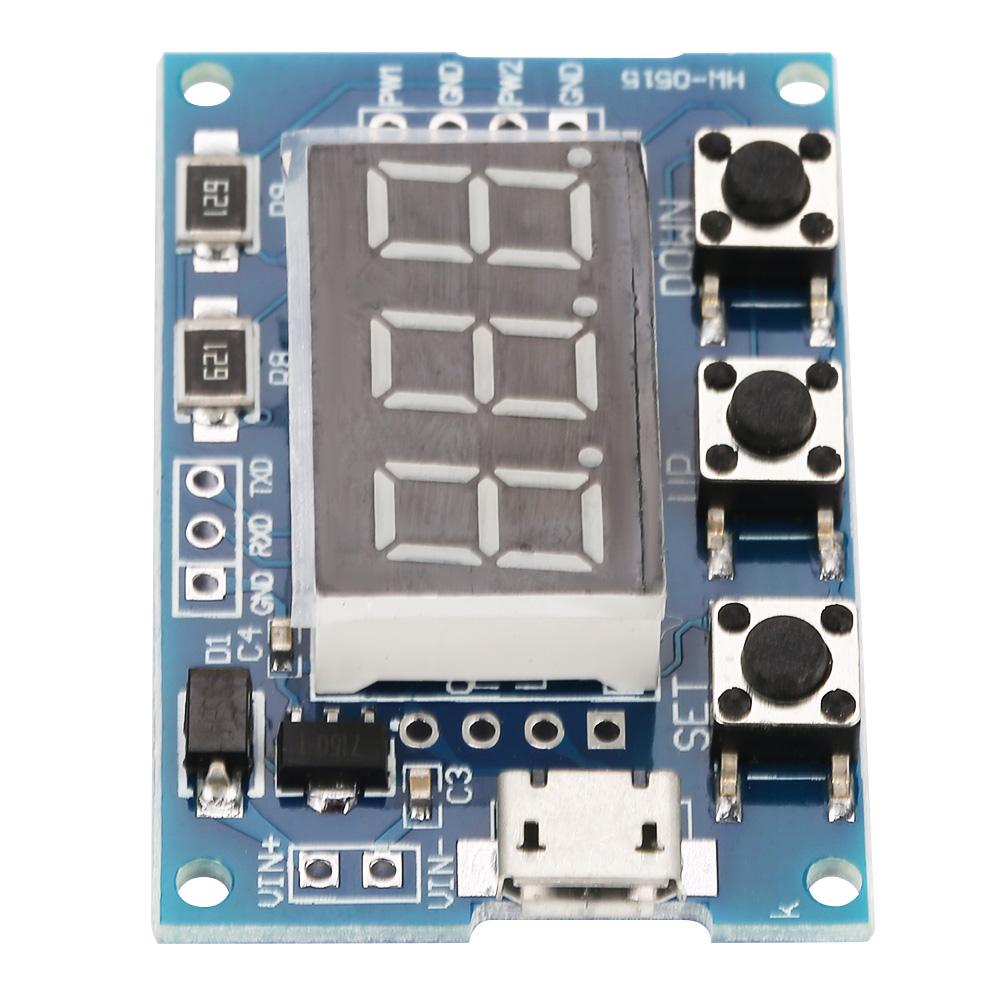

Flow Control:none Weight: Approx. 9g 0.3oz Size: Approx. 41 * 28 * 1.6mm 1.6 * 1.1 * 0.1in Parameter Setting: Module has 3 channel key:Set,Up,Down 1. By short press SET key, can shift display 4 parameter values (FR1:PWM1 frequency; dU1:PWM1 duty cycle; FR2:PWM2 frequency; dU2:PWM2 duty cycle); before shifting,there will be corresponding parameter name flashing 2. Directly press UP,DOWN key to modify current parameter value 3. 2 chhannel PWM are set 3 kinds frequency value, in frequency display interface,by long press SET to shift, 3 kinds frequency s duty cycle are the same (XXX:1Hz 999Hz; XX.X:0.1Khz 99.9Khz;X.X.X.:1Khz 150Khz) Setting PWM Frequency: 1. S1 FXXXT : set PWM1 frequency as XXX HZ (001 999) 2. S1 FXX.XT : set PWM1 frequency as XX.X KHZ (00.1 99.9) 3. S1 F:X.X.X.T : set PWM1 frequency as XXX KHZ (0.0.1. 1.5.0.) 4. S1

: PWM1 5. S2 : PWM2 6. F : frequency 7. D : duty cycle 8. T : stop sign bit Setting PWM Duty Cycle: 1. S1 DXXXT : set PWM1 duty cycle as XXX(001 100) 2. S2DXXXT : set PWM2 duty cycle as XXX(001 100) Setting successfully back: DOWN Setting unsuccessfully back: FALL Package List: 1 * Wave Rectangle Signal Generator
