Features：
1. The product has a compact structure, is easy to use, and can be operated with 1 hand.

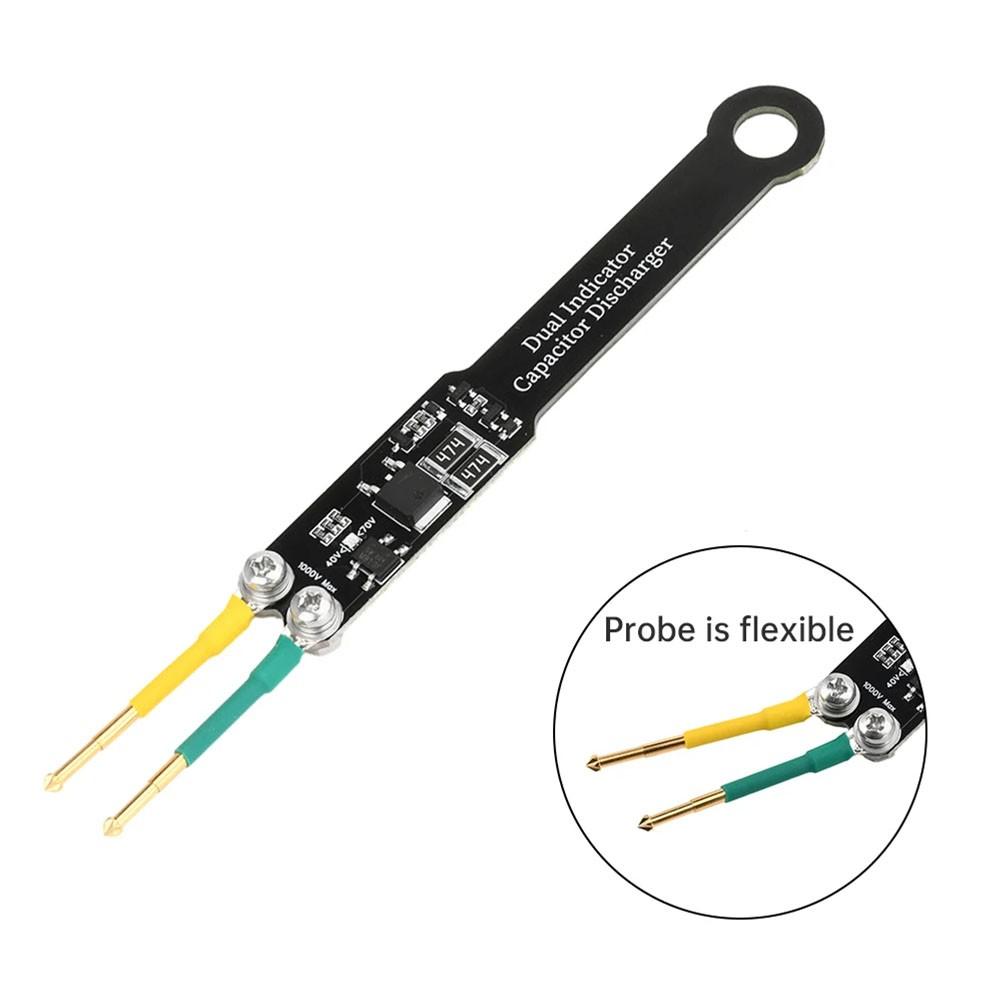

2. The probe is elastic, flexible and not easily crushed. The needle distance can be adjusted.
3. The discharge pen uses a 1000V MOS tube, and the discharge voltage should not exceed 1000V.
4. The discharge pen uses dual LEDs to indicate the discharge process. The red LED is on when the voltage is high, and the green LED is on when the voltage is low. The turning voltage is about 42v.

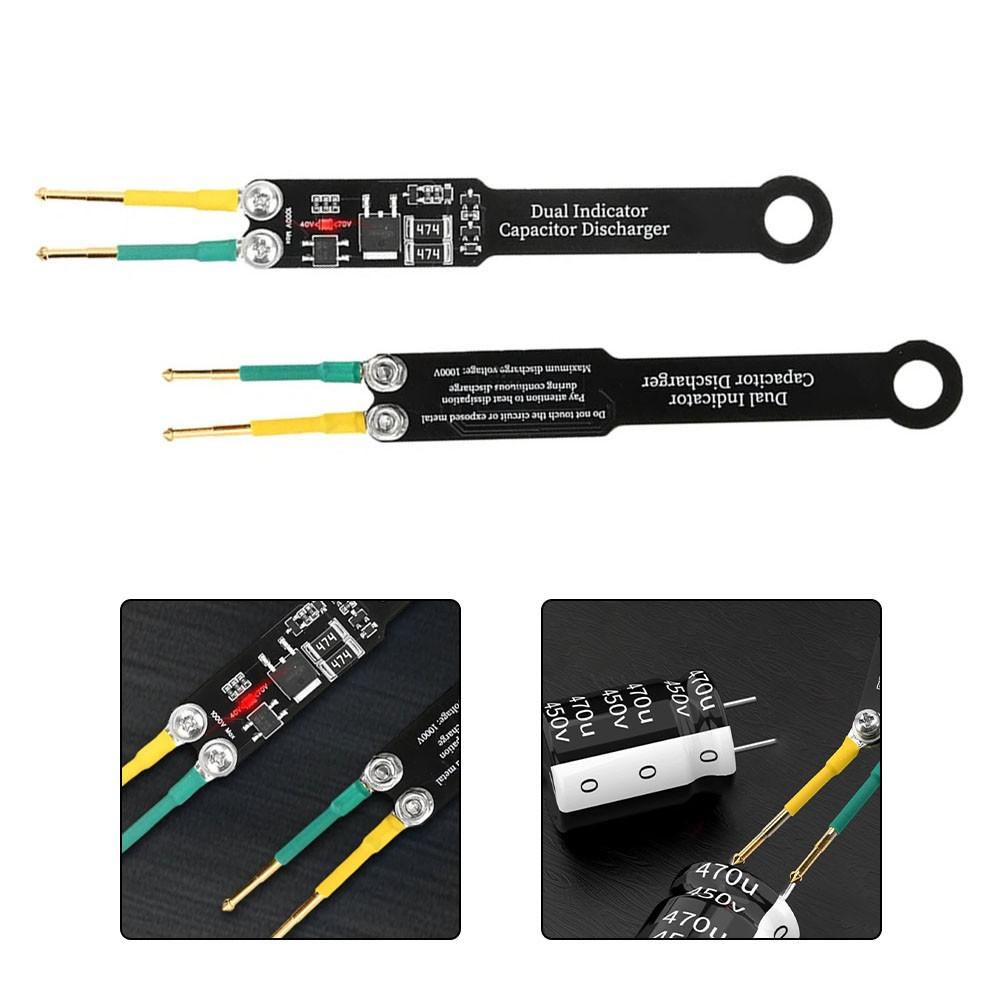

5. Wide range of uses: Suitable for the production, testing and maintenance of electronic products, it can quickly release the residual voltage of the capacitor, protect the operator from electric shock, and prevent product damage.
Specifications:

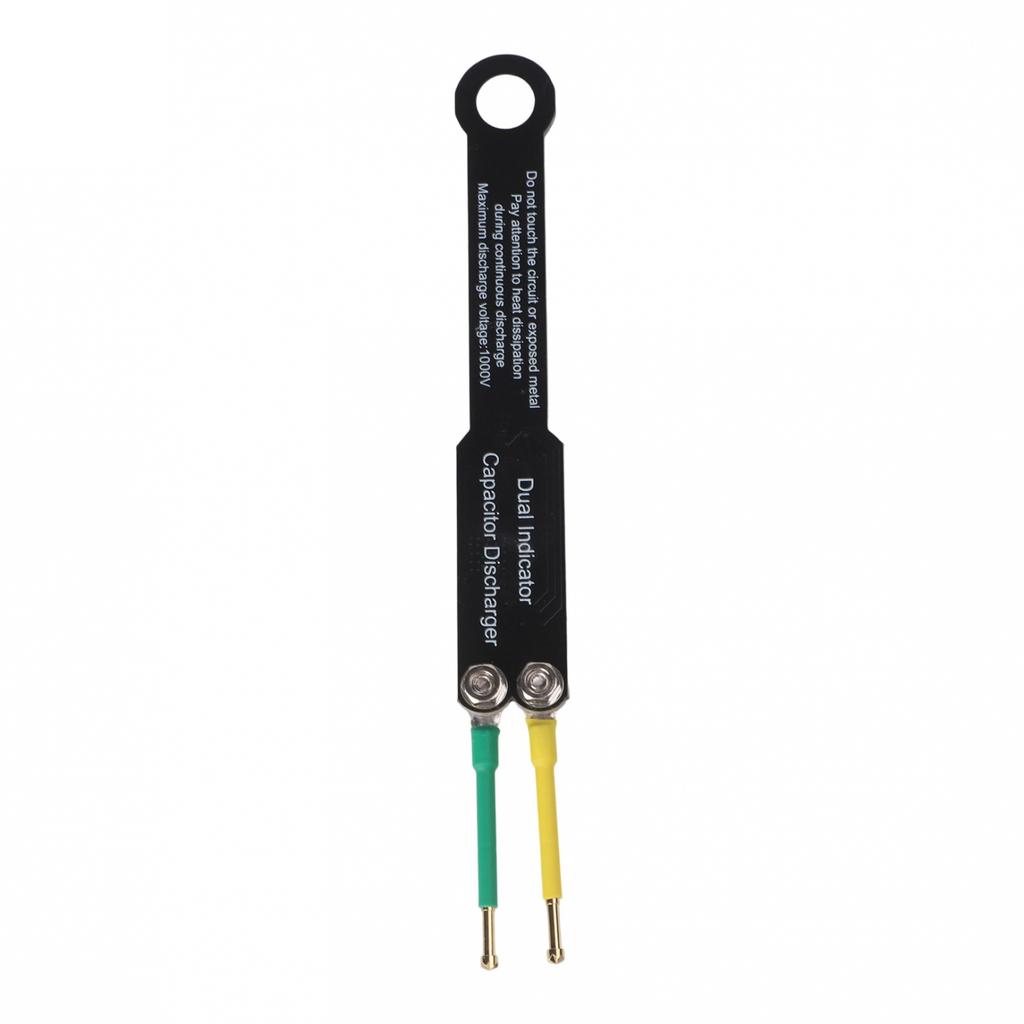

Part name: capacitor discharge pen
Color: black
Size: 133*15mm
Material: as shown
Package contents:
1*capacitor discharge pen
Note:
After the green LED goes out, it means that the discharge is complete. At this time, there is still a residual voltage of about 6V in the capacitor.
Do not touch the circuit or exposed metal during discharge.
Do not discharge for a long time, and pay attention to heat dissipation during discharge.
There is no limit to the discharge capacitance, the larger the capacity, the longer the discharge time.
