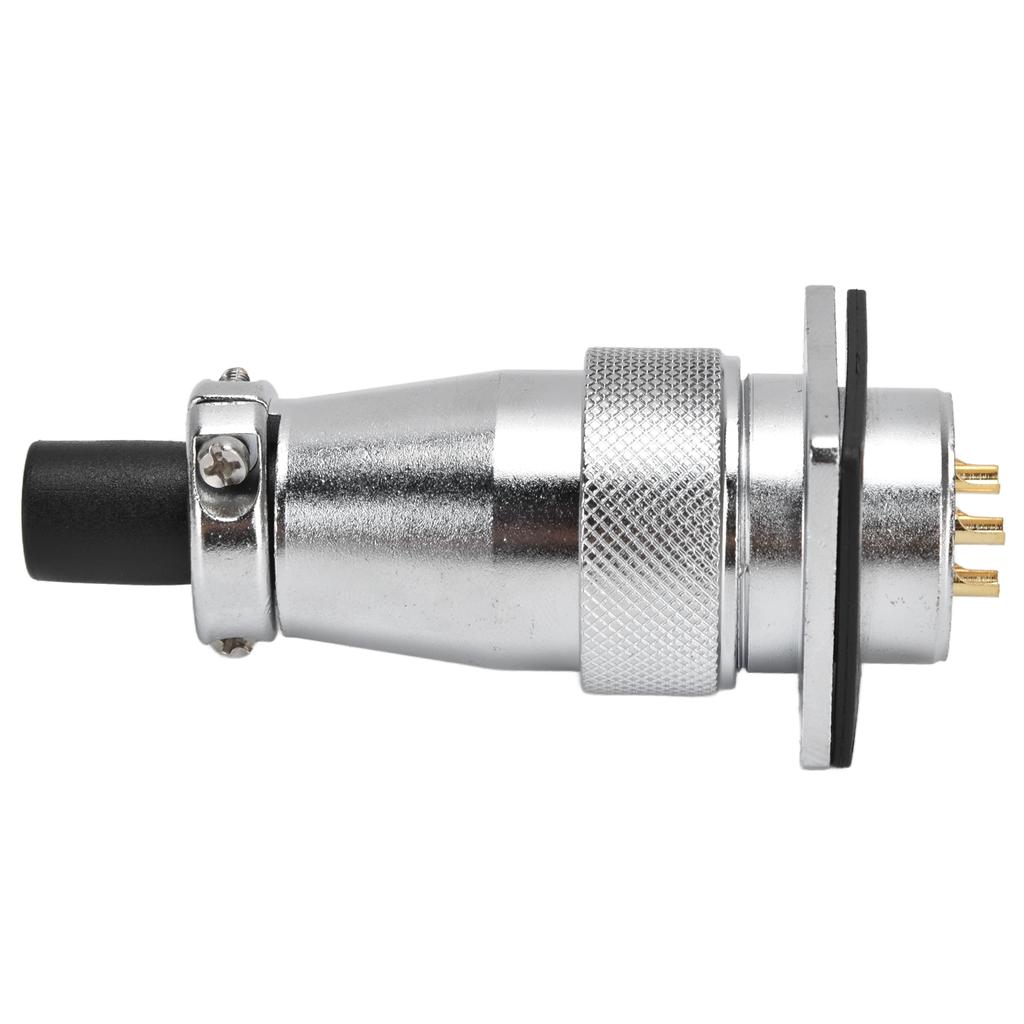

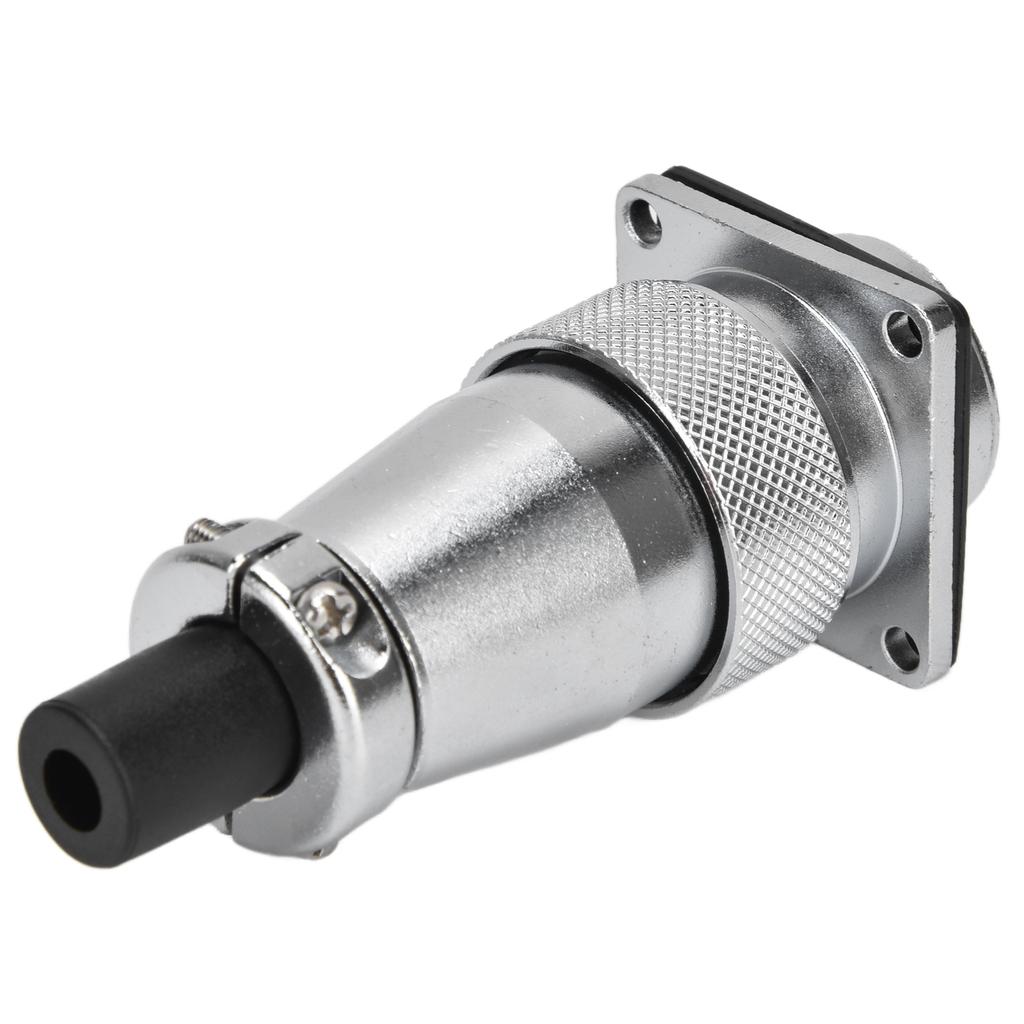

Aviation Connector AC 500V Stable High Strength Waterproof Power Supply Plug Socket Adapter

Feature: 1. [Stable Electrical Performance] The aviation connector has stable electrical performance, excellent performance, explosion proof and corrosion resistance. 2. [High Strength] This plug socket connector has high strength, pressure resistance and high temperature resistance. 3. [Protection] Using sophisticated production technology, the connector has good electromagnetic and radio frequency interference protection. 4. [Multicore Design] With a multicore design, the connector can adapt to different industrial needs and meet different needs. 5. [Material] Made of high quality zinc alloy material, the connector is strong and durable, and can be welded and crimped. Specification: Item Type: Aviation Connector Material: Zinc Alloy Temperature Range: -40℃ to 85℃ Mating Times: 500 Number of Cores: 3 Rated Current (A): 25 Contact Diameter (mm): Φ2.5 x 3 Working Voltage (AC, V): 500 Withstand Voltage (AC, V) 1min: 1500 Contact Resistance (mΩ): 1 Insulation Resistance (MΩ): 2000 Wire Gauge (mm²/AWG): ≤4/11 Package List: 1 x TQ Plug 1 x Z Socket 1 x Waterproof Cover 4 x Screws 4 x Nuts
