Features:
Reliable Electrical Specifications: This exigent stop button is equipped with 4 screw terminals, boasting a rated current of 10A to ensures stable performance in various electrical systems. It features a 1NC contact type and DPST pole configuration, making it suitable for controlling electromagnetic starters, contactors, relays, and other automatic control circuits with accurate and safety.

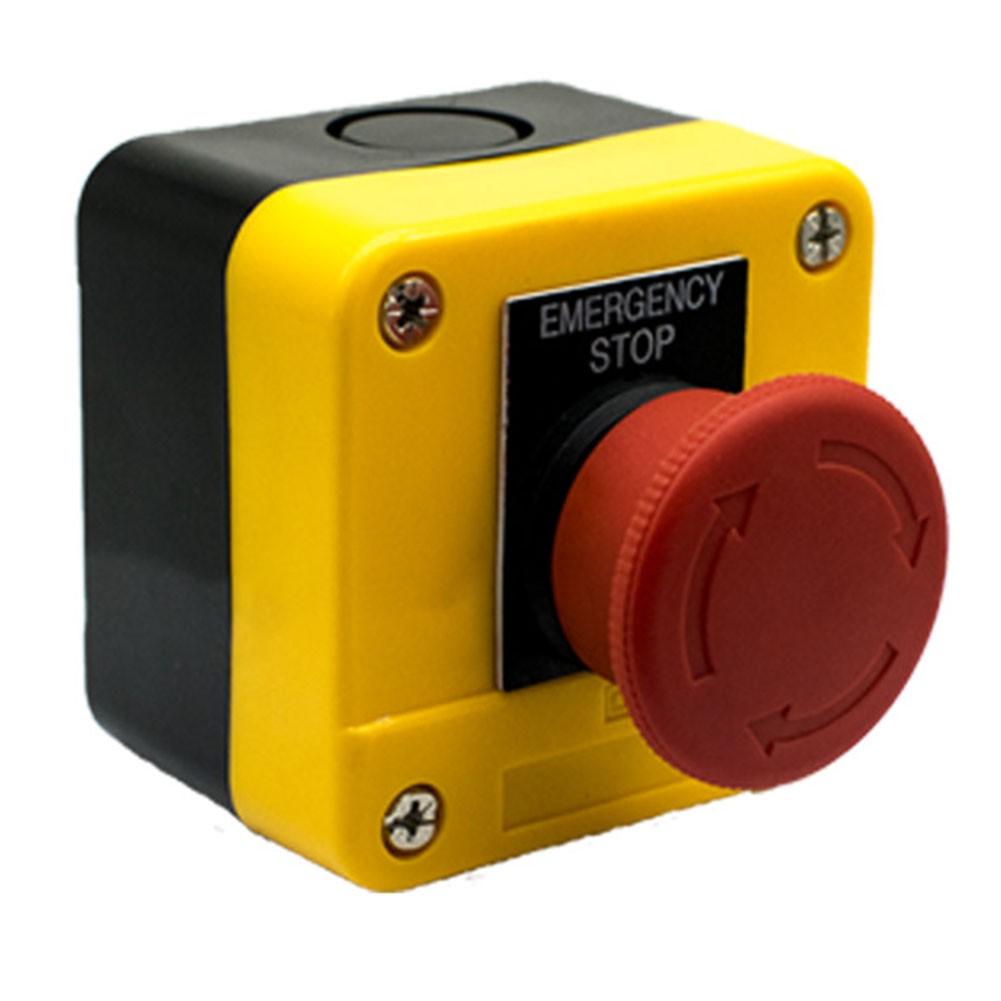

User-Friendly Self-Locking Design: The button comes with a prominent red mushroom head that is compact in structure, allowing for quick and convenient operation. When pressed, it immediately stops the connected equipment and locks in place to prevent accidental restart. Resetting is effortless—simply press the button and rotate it following the arrow indicator, guarantee a hassle-free user experience even in exigent situations.
Effective Waterproof for Protection: Designed with a built-in waterproof rubber ring, this exigent stop switch box offers strong sealing performance. It effectively prevents water droplets from entering the switch, making it reliable for use in environments where moisture or splashes may occur, thus extending the service life of the device.
Perfect Size for Easy Installation: With a standard mounting hole diameter of 22mm, this button is easy to install in control panels or machinery. The mushroom head has a diameter of 40mm (15.7 inches), providing a large, visible target for quick operation. The overall dimensions of approximately 68.568.580mm ensures it fits neatly in various setups without taking up excessive space.
Versatile Application Range: This exigent stop button is widely applicable across different industries and scenarios. It can be seamlessly integrated into automatic control circuits for machinery, industrial equipment, production lines, and more. Its reliable performance and safety features make it an essential component for guarantee operational safety in various electrical systems.
Specifications:
Part Name: E-stop Push Button Switch
Color: Orange Case
Case Material: ABS
Contact Material: Copper
Rated Current: 10A
Rated Voltage: 110V~400V
Operation Type: Latching (Maintained)
Dielectric Strength: 1000V
Number of Cycles: 100,000
for Protection Level: IP40
Operating Temperature Range: -40~+70°C
Configuration: 1NC
Purpose: Exigent stop of electrical equipment
Opening diameter: 22mm
Size: 68.5mm*68.5mm*50.5mm
Package Contents:
1*E-stop Push Button Switch
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
