Manual-Off Hydraulic Circuit Breaker with Integrated 5+2 Way 100A Busbar

Manual-Off Hydraulic Circuit Breaker with Integrated 5+2 Way 100A Busbar

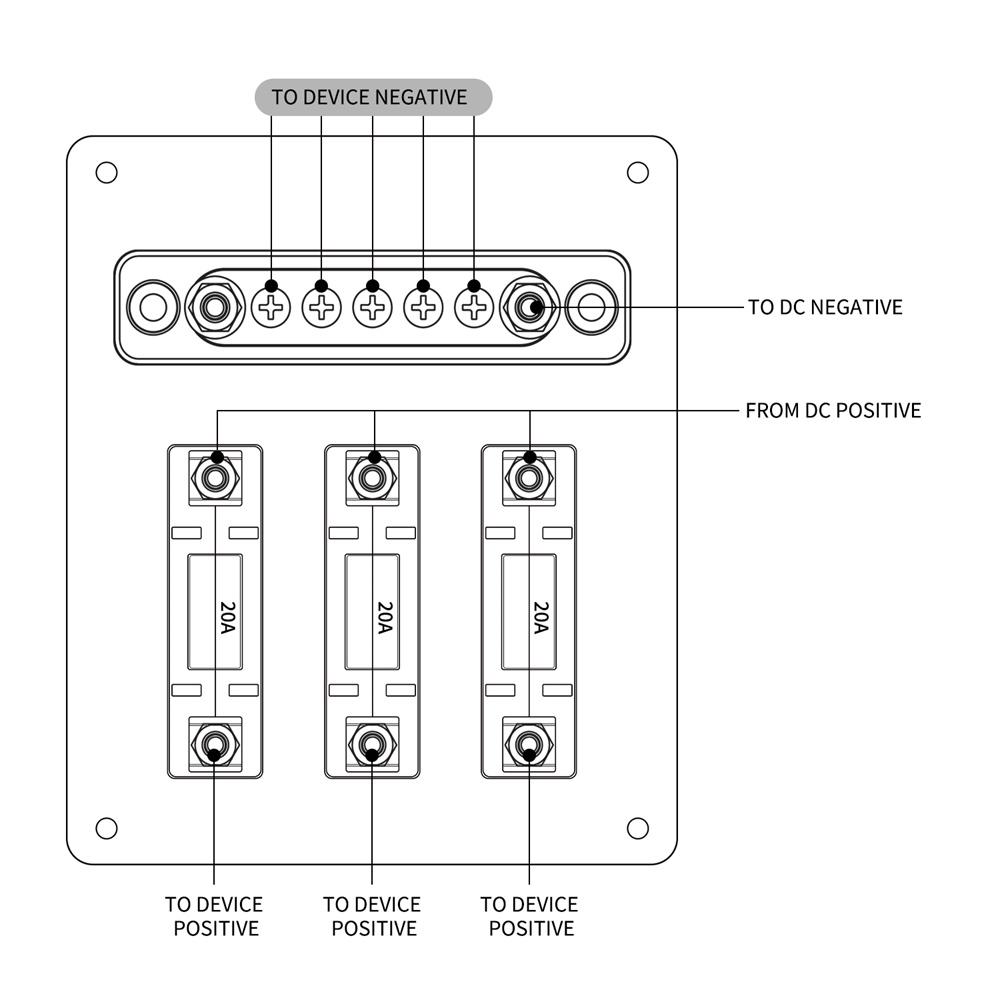

There are 3 purposes of a marine electrical panel: Power distribution Circuit (wire) protection Circuit ON/OFF switching

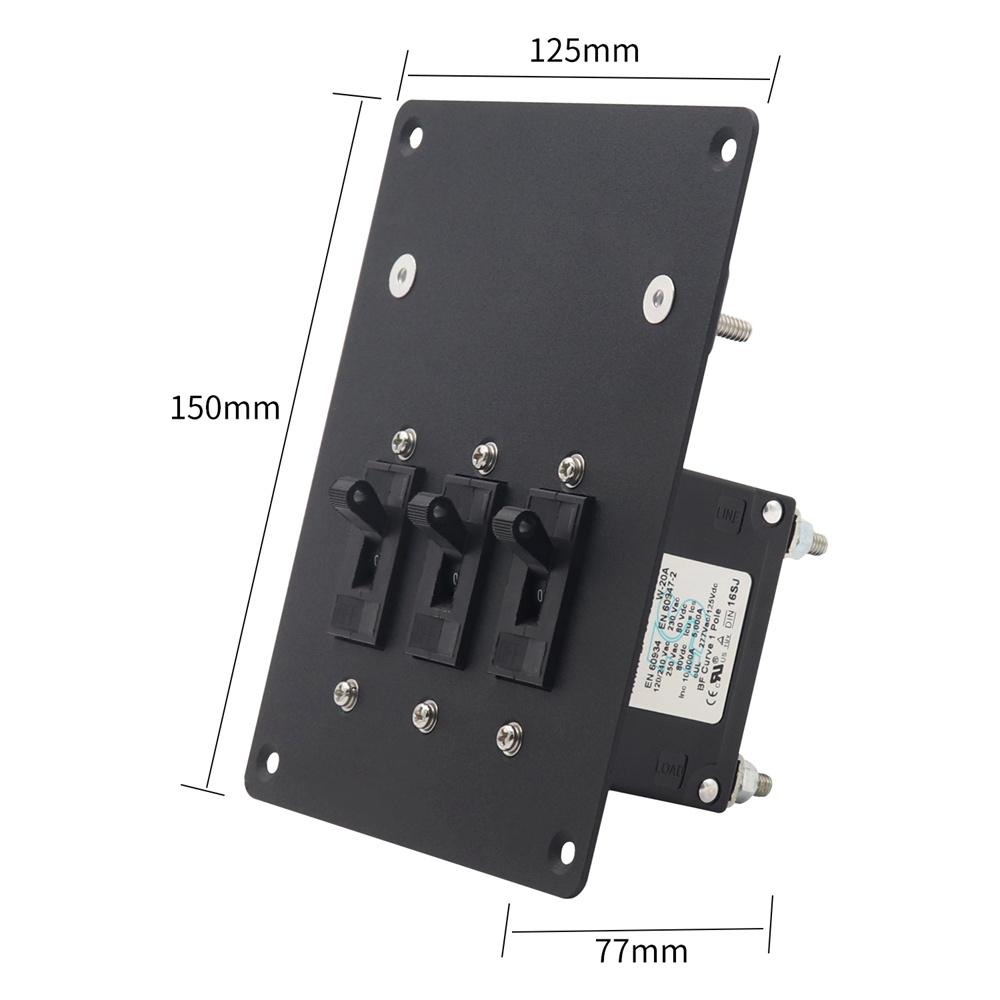

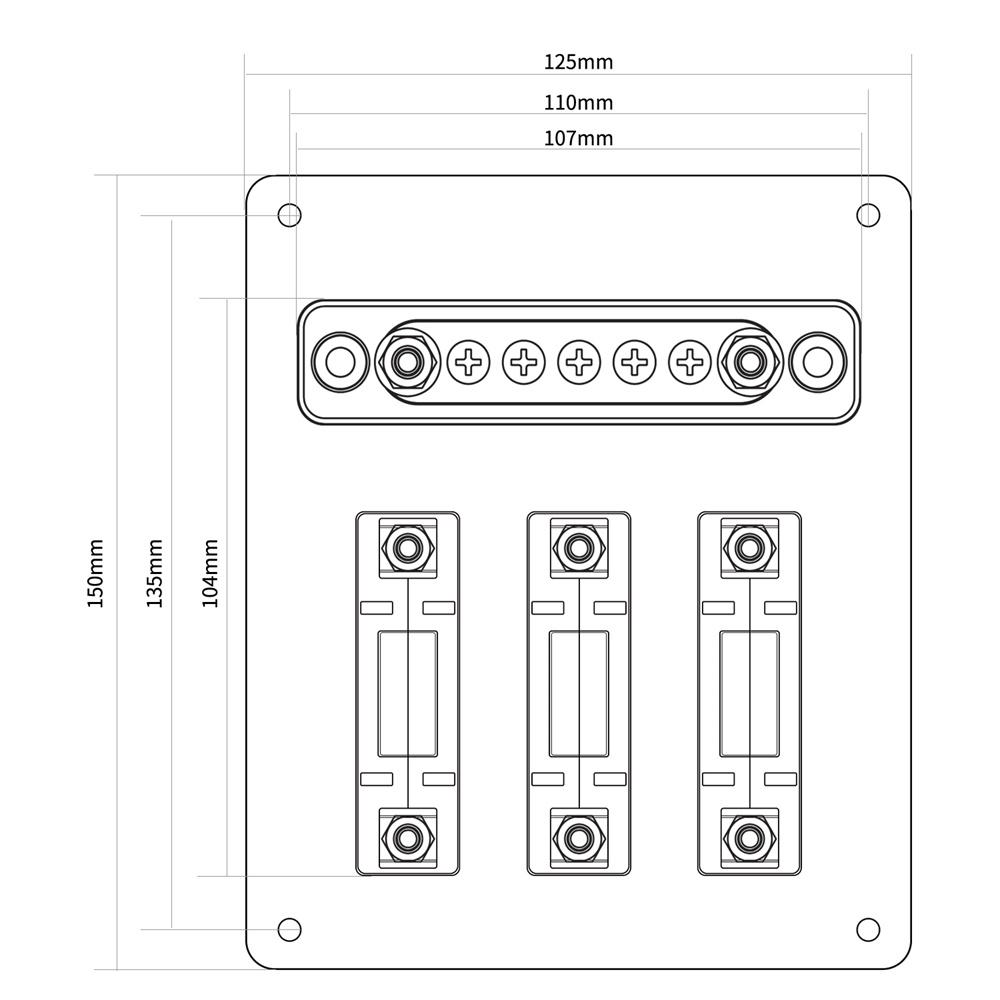

Specifications Material: Aluminum Size:150*125*75mm Opening installation dimensions：107*104mm Circuit Breakers: 20 amp AC/DC Magnetic 80V DC/277V AC Maximum Operating Temperature -40oC (-40oF) to 85oC (185oF) Life : 10,000 Switching opearation Bus bar Amperage Rating: 100 Amps of continuous current Voltage Rating: Panels are rated for 12 or 24 volt DC distribution.

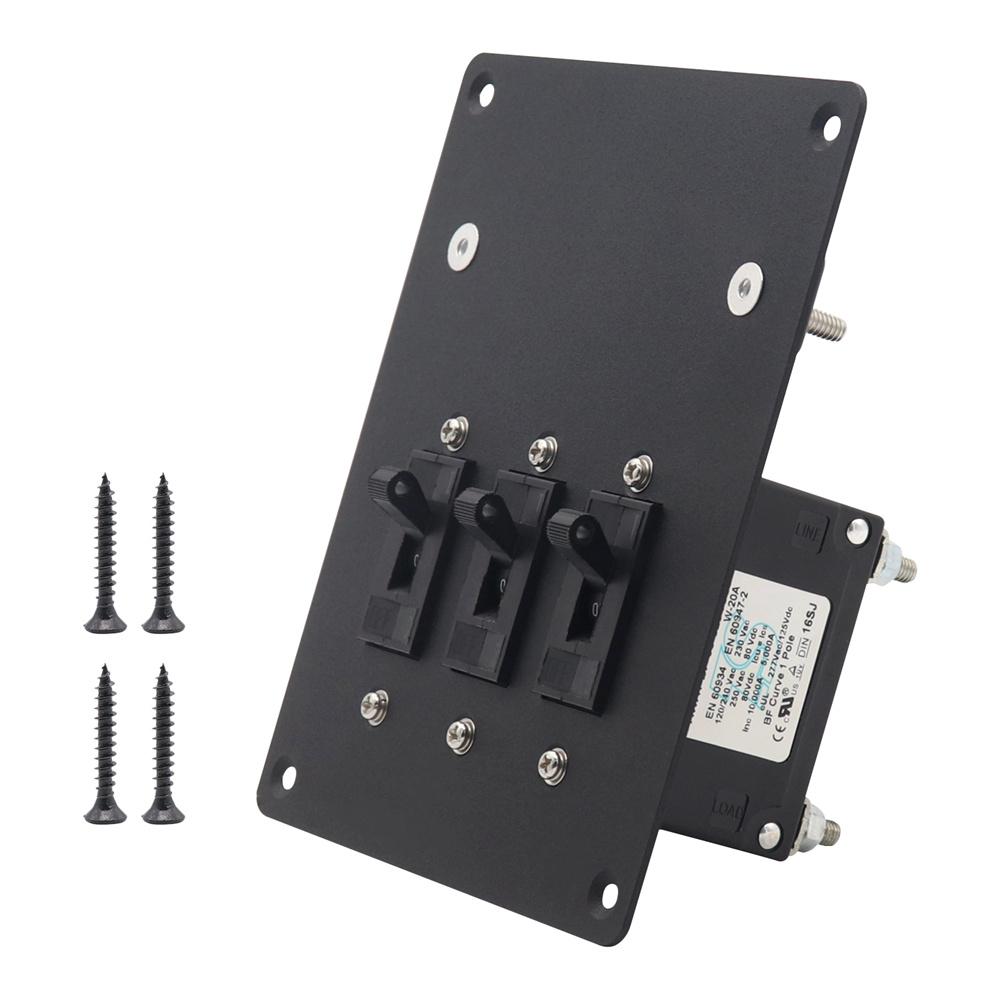

Package included:one set (as the picture shown)
