Temperature range: -9~99℃
Temperature control accuracy: 1℃
Measuring accuracy: 1℃
Refresh rate:approx. 0.5S
Setting range: -9~99℃
Input: DC 12V
Measurement input: Waterproof temperature sensor-NTC(3950-10k 1%)
Output: relay output
Environment: -10~60℃, 20~85%RH
Size: 78*51*2.5mm
Color: blue
Material: plastic
Features:
< Wide application: Widely used in various spatial temperature control, water temperature control, incubators and more.

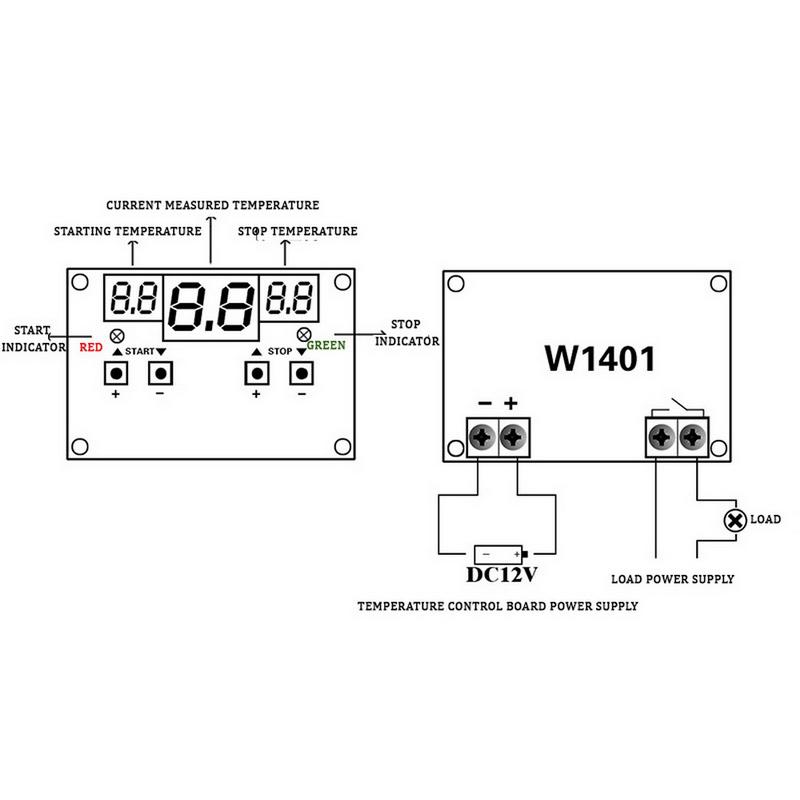

< START indicator light:
Start(red) indicator lights on, that is, the relay is closed and the device begins to work.
< Stop indicator light:
STOP(green)indicator lights on, that is, the relay is disconnected and the device stops working.
< Operation:
1. High temperature start – cooling mode
-- Set the starting temperature value>stop temperature value, when the detected temperature≥starting temperature, the relay is closed, refrigeration equipment works.
-- When the detected temperature≤stopping temperature, the relay is disconnected,refrigeration equipment stops working.
2. Low temperature start – heating mode:
-- Set the starting temperature value<stop temperature value, when the detected temperature≤starting temperature, the relay is closed, the heating device works;
-- When the detected temperature≥stopping temperature, the relay is disconnected, the heating device stops working.
< The automatic identification of work mode: The system automatically identify work mode according to the start/stop temperature
Notes:
1. Please allowed 1-3mm differences due to manual measurement, thank you for your understanding!
2. Due to the difference between different monitors, please understand that the picture may not reflect the actual color of the item.
Package:
1 x temperature controller
1 x NTC probe
