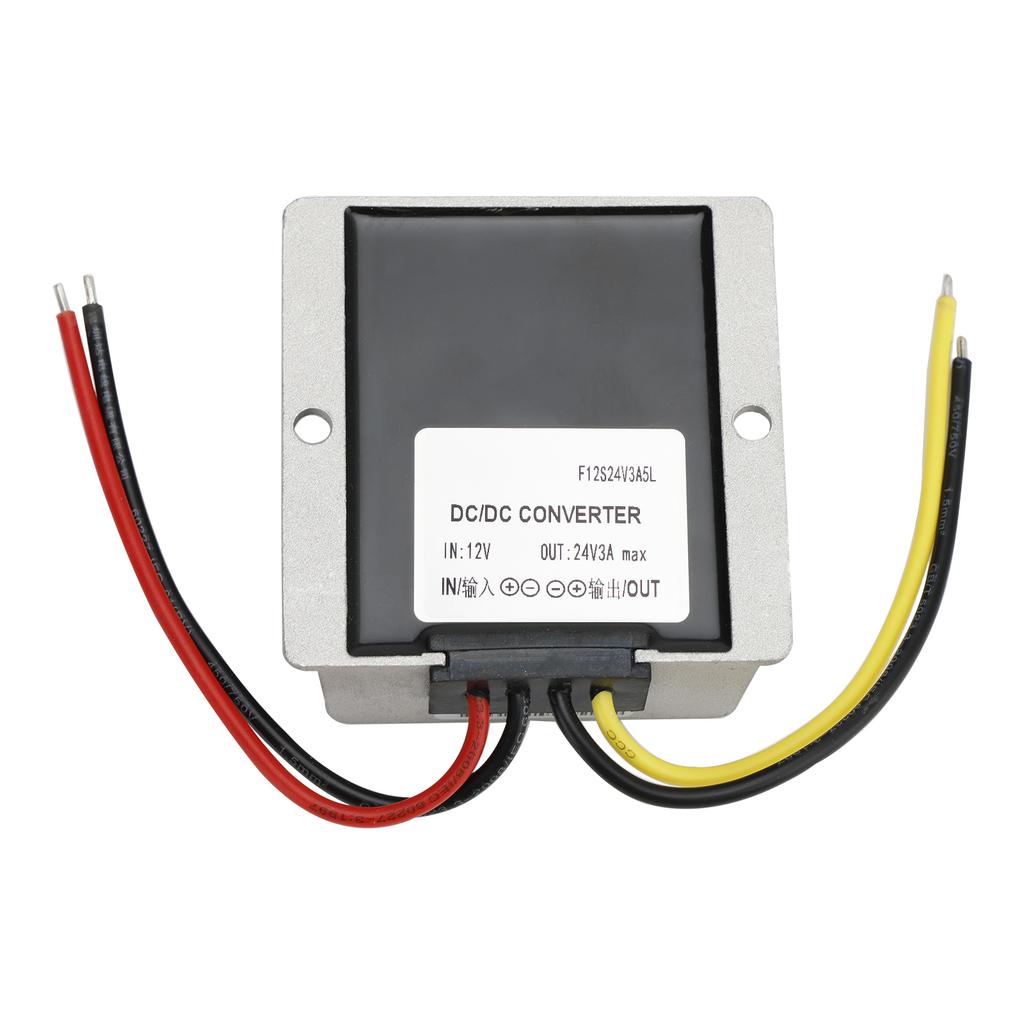

12V to 24V 3A 72W DC-DC Boost Step Up Power Converter Voltage Regulator Module
Feature:
1:Made of high-quality materials, long service life, long term stable and reliable.
2:With overcurrent, overvoltage, overtemperature and short circuit protection, reliable multi-protection design to enhance your using safety.
3:Waterproof, shockproof Design,good heat dissipation, easy to install
4:This product does not have the function of charging the battery, it is only used for voltage conversion.
5:Widely used in LED photo lighting, LED display screens, monitoring systems, power automation, communication systems and other fields.
Specifics:
Condition: 100% Brand New
Shell Material: Die-cast aluminum alloy
Input rated voltage: 12V DC
Input voltage range: 10 ~ 20V DC
Output voltage: 24V DC
Output current: 3A (max), 72W
Conversion efficiency: Over 90%
Static consumption: Less than 20MA
No-load adjustment rate: 2%
Load regulation: 3%
Operating temperature: -25°C ~ +65°C
Wire lengths: About 12~13cm
Waterproof Rating: Ip67
Size: 74 x 74 x 32mm/2.91 x 2.91 x 1.26inch
Weight:approx.280g
Input wire color : (+)Red, (-)Black.Output wire color : (+)Yellow, (-)Black.
Note:
1.Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2.Please take with an average load, do not merge,if there are multiple output cables in the output port.
3.You need to pay attention to make the power module cool,if output is up to the maximum current value.
4.In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment
Package Included:
1x DC/DC Converter Regulator
