Feature:
1. The main control chip adopts industrialgrade singlechip microcomputer, with accurate time and strong antiinterference.
2. The power supply adopts RC buck, direct AC access, saves the buck circuit, and solves the problem of troublesome wiring.
3. The relay has a large delay range, adjustable from 0.2 seconds to 5 hours.
4. Small size, easy to carry and store, convenient to use and with good performance.
5. Strict quality control and quality assurance, high safety factor, can be used with peace of mind.
Specification:

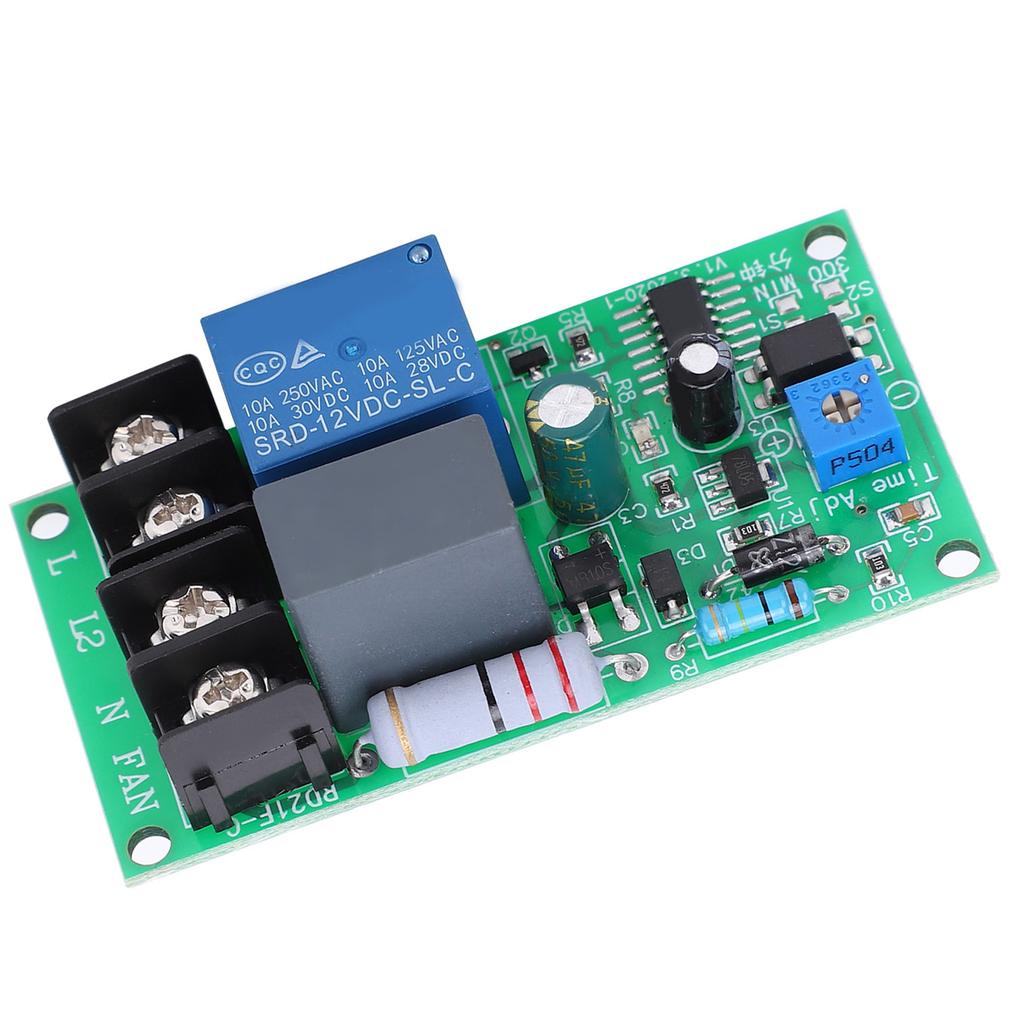

Item Type: Relay ModulePower Supply Voltage: 220V AC (range 100V250V wide voltage)
Module Power Consumption: 0.8W (0 power consumption in standby mode)
Load Capacity: 10A
Output Form: Active output
Action Life: >100,000 times (full load), noload >10 million times
Size (mm): Approx. 68 x 36 x 22mm 2.7 x 1.4 x 0.9in
Screw Hole: Center Distance: Approx. 63 x 31mm 2.5 x 1.2in
Hole Diameter: Approx. 3.2mm 0.1in
Terminal:
1. Connect live wire to L and neutral wire to N
2. The switch is connected to L, L2
3. The load is connected to the FAN end, N
Time Range Setting:
S2 is used to set the time value
S2 is not welded up and down, which means 030 adjustable
S2 is welded up and down, which means 0300 adjustable
S1 is used to set the unit
S1 is not welded up and down, the unit is: second
S1 is welded up and down, the unit is: minute
S1
S2
Scope
Accuracy
Disconnect
Disconnect
030s
0.1s
Disconnect
Connection
0300s
0.5s
Connection
Disconnect
030 minutes
2.0s
Connection
Connection
0300 minutes
20s
The potentiometer has 10 divisions and the time is equally divided.
Typical Application:
1. Delayed turn off of exhaust fan
2. Delayed shutdown of the cooling fan of the heating system
3. Delayed turnoff of stair lights
4. Other industrial control places.
Package List:
1 x Relay ModuleThe main control chip adopts industrialgrade singlechip microcomputer, with accurate time and strong antiinterference.
The power supply adopts RC buck, direct AC access, saves the buck circuit, and solves the problem of troublesome wiring.
The relay has a large delay range, adjustable from 0.2 seconds to 5 hours.
Small size, easy to carry and store, convenient to use and with good performance.
Strict quality control and quality assurance, high safety factor, can be used with peace of mind.
