Quantity : 1
Hign-concerned Chemical : None
Package : SMD
Model Number : YX850
Dissipation Power : ...
Supply Voltage : 5-48V
Application : All
Type : Relay
Operating Temperature : ...
Origin : China
Condition : New
Product Parameters
Product Name: power failure automatic switching module
Product model: YX850
Scope of application: DC5V-48V
Product load: 10A
Product size: 61*30*18mm (length * width * height)
Mounting hole size: 3mm
Installation hole spacing: 23mm
Product weight: about 22g
Connect the DC terminal to the battery for charging when there is power
The charging parameters have nothing to do with this module,but depend on your DC terminal,battery and load.

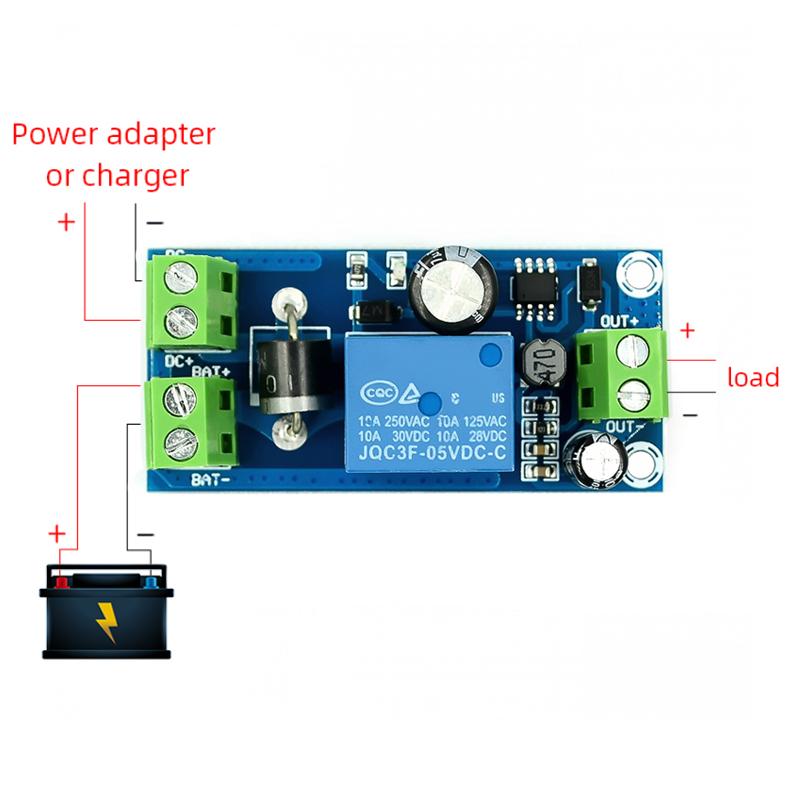

Product Wiring Example
Be Careful
1. power off for a few tenths of a second during switching.
2. the power supply,battery and load shall have the same voltage.
3. when there is power at the DC end,it is preferred to supply power to the load.
When the DC terminal is powered on,connect the battery for charging (the specific parameters confirmed by yourself have nothing to do with this module)
4. when there is no power at the DC end,the automatic battery will supply power to the load.
