【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
----------------------------------------------------------------------
【UlatraHD 5MP Quality】CMOS 1/3 inch image sensor and 5.0 megapixels (2880 x 1620P) at 20 fps create clearer and smoother images/videos with more details.
[Supports 48V 802.3af POE function] Supports POE function (Power Over Ethernet), reducing the hassle of cable wiring. It also has an auxiliary power connector, allowing it to be powered from a traditional 12V 2A power supply and used as a non-POE IP camera.

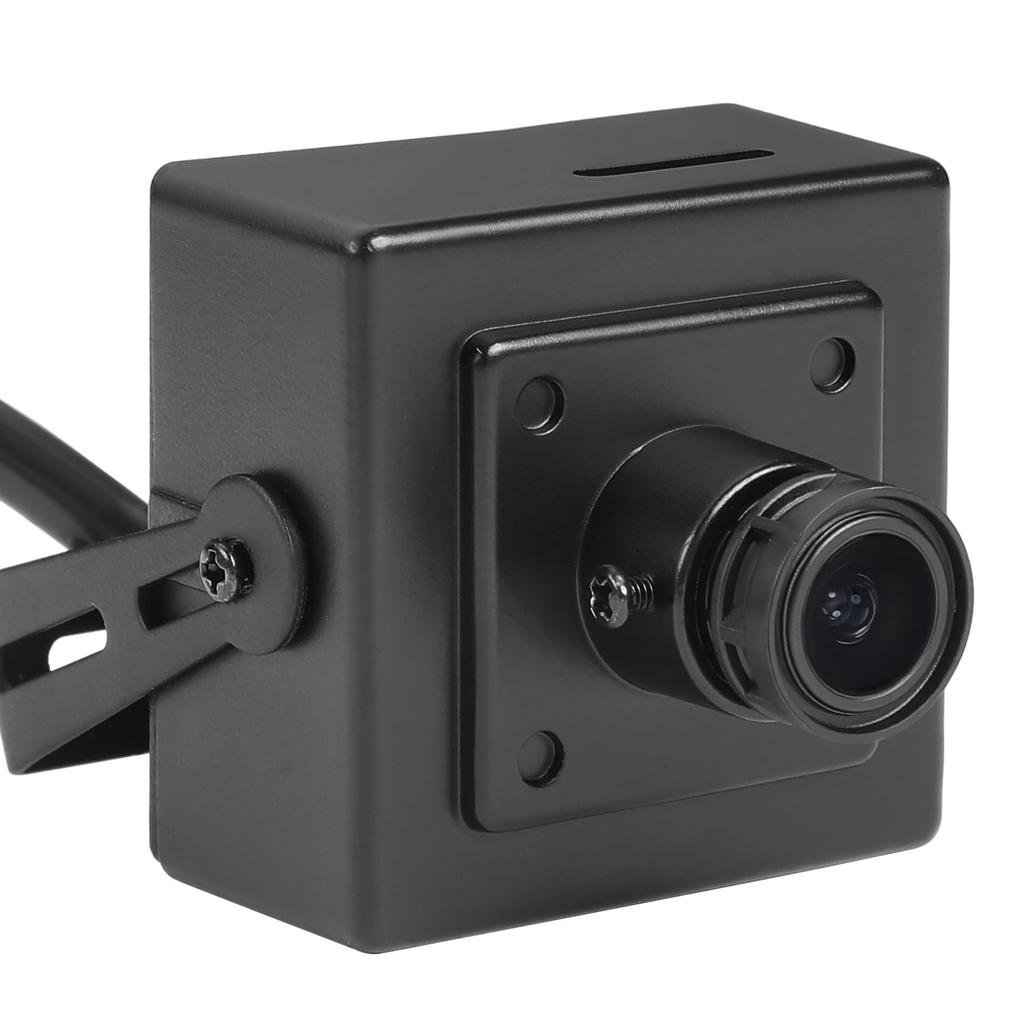

【Mini Size IP Camera & 3.6mm Lens】This IP camera has a small size of 5.3 x 4.5 x 4 cm and is equipped with a camera stand, making it easy to install it in a place where others won't notice. This camera's 3.6mm fixed lens provides a 75° viewing angle to cover and protect your area. You can clearly see the room/space through this camera.
【Micro SD Card】Videos can be saved to a micro SD card (up to 256GB), NVR or computer. Package contents do not include Micro SD card.
[Service] We have the smartphone app "TSEYE" available on the App Store and VMS software for Windows (does not work on MAC OS or Linux).
Notes:
1.This product is powered by POE. Must be connected to an 802.3AF standard 48V POE switch.
2.This product does not include a Micro SD card.
3.The default of this camera is 5MP and H.265, but if your NVR doesn't support 5MP or H.265, you can change our camera to 1080P (2MP) and H.264.
4.IP camera generates more heat, and the case of this camera is small, so the camera will feel hot after operating the camera for a while. Don't worry. This is normal and safe. I hope you understand.
* High resolution 5.0 megapixel 1/2.8 inch CMOS sensor
*5MP 2880*1620P resolution
*Supports POE and reduces the hassle of cabling.
* It has an auxiliary power connector and can be used like a non-POE IP camera.
* Supports iPhone, Android smartphones
* Supports up to 256G Micro SD card.
* P2P remote viewing
* Supports web interfaces for IE8.0 and above (device embedded web server), Edge, Chrome, Firefox, and Safari browsers.
* Support motion detection, email alarm function
* Metal shell
camera
Model: I706-POE-TS-SD
Resolution: 2880 x 1620P 5.0 megapixel camera
Sensor: FH8852V201+SC523A
Minimum illuminance: 0.1Lux @(F1.2, AGC ON)
Frame rate: 20fps
Lens: 3.6mm
O NVIIF compliant port: 8088
Lens interface type: M12
Shutter: 1/25 seconds to 1/100,000 seconds
Compression format: H.265/H.264
Compression rate output: 128Kbps ~ 8Mbps
Storage: SD card (up to 256G), NVR or computer
IP address: Static (default 192.168.1.108) / Dynamic
Smart alarm: motion detection, email alarm
Support protocols: HTTP, TCP/IP, RTSP, RTP, UPNP, SMTP, DHCP, DDNS, DNS, FTP, NTP
General features: key recovery, dual stream, password protection, video hiding
Ethernet: 10M/100M Mbps Ethernet (RJ-45)
general
Operating temperature: -25°C~60°C
Operating humidity: 10%~90%
Power supply: POE
Dimensions (cm): 5.3 x 4.5 x 4cm
Weight: 0.2kg
Package contents:
1 x Camera
1 x User manual
1 x screw set
