Features:
*Input voltage: AC 85-265V，Output voltage: DC 24-46V，Output current: 300mA±5%，Output power: 8-12W
* Using high-efficiency, low-consumption, and stable imported chips to achieve energy-saving and purposes
*Constant output current, low ripple. Ensure the safety and stability of LED use, improve the light efficiency of LED, and reduce light decay
* Overload, overvoltage, short circuit, overcurrent protection to ensure the safety of the power supply
* Widely used in LED ceiling lights, down lights, spotlights, track lights, street lights, panel lights, bulb lights, flood lights, etc
Specification:

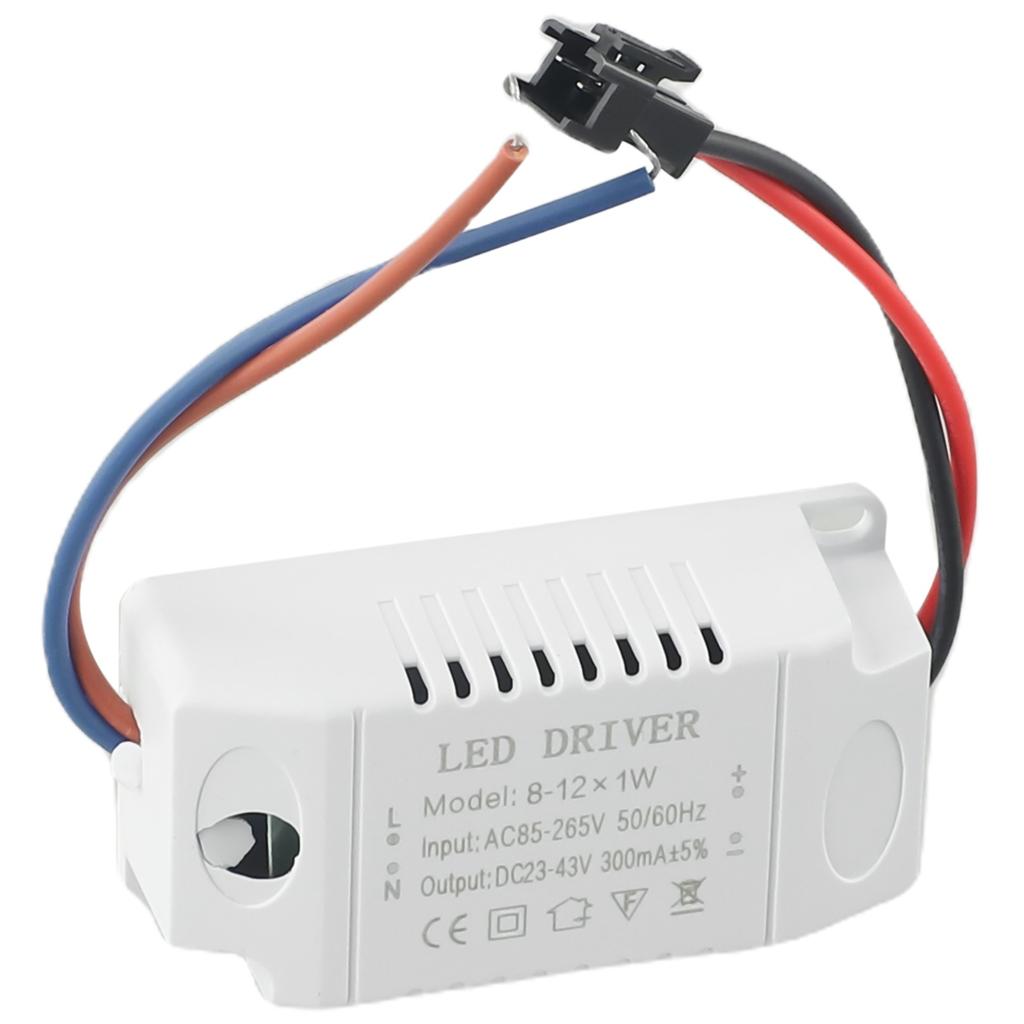

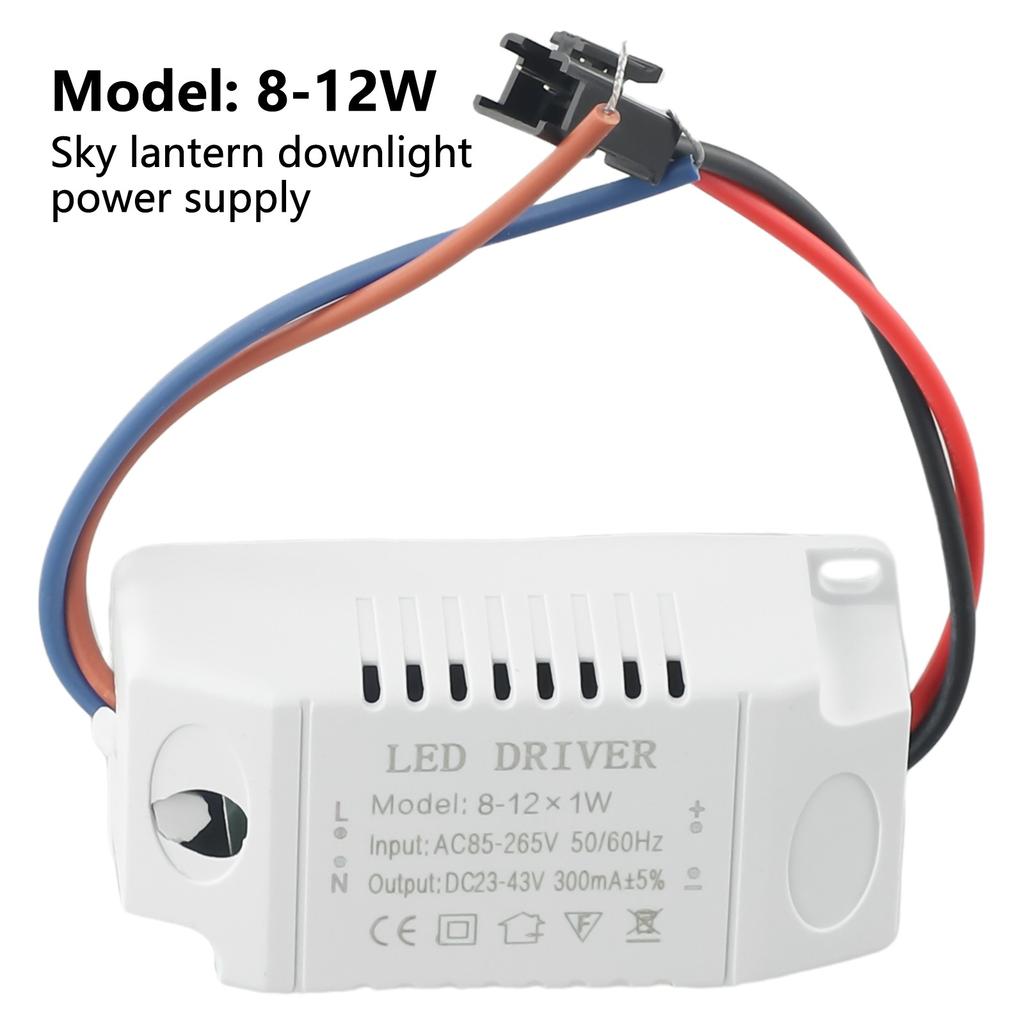

Model: 8-12X1W
Type: Isolated Power
Input voltage: AC 85-265V
Input frequency: 50/60Hz
Surge current: 5A
Output voltage: DC 24-46V
Output current: 300mA±5%
Output power: 8-12W
Efficiency: 88 (%)
Power factor: 0.5-0.7
Protection: short circuit protection, over voltage protection, over current protection, others
Installation position: external
Lifespan: 8000H
Working temperature: 125°C
Applicable lamps: ceiling lamp, downlight, ceiling lamp, etc.
Dimensions (L*W*H): 65*33*20 (mm)
Packing list:
1*LED driver
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
