This is a kind of fine quality CNC arbor, made of fine toughness and hardness material, can provides long service life. Fine low temperature impact toughness, improved the surface gloss of the cutting pieces. It can reduce the tool grinding cost and improve the cutting efficiency. You can have a try.
Features:
High grip strength, impact resistance and strong, clear speed advantage in cutting off a large margin and processing.
Fine toughness and hardness, long service life.
It can reduce the tool grinding cost and improve the cutting efficiency.
Fine low temperature impact toughness, improved the surface gloss of the cutting pieces.
To maintain tight tolerances unmatched performance.
User clamping and convenient way to replace, only a wrench to complete the replacement of the insert and pad.
Warning:
Use safety precaution such as guards and eye-protect device before using the tool.
Exchange a tool when it occurs problem such as a noise, vibrations and a flame.
Specifications:
Name: Milling Tool Holder
Material: stainless steel + plastics
Model(turning tool+insert): S08K-12+SDUCR07, S08K+SCLCR06, SCMCN+0808F06, SCLCR+0808F06, SDJCR+0808F07, SDNCN+0808F07, MGEHR+0808-02 (ALL)
Wrench:
MGEHR: T10
SDJCR: T8
S08K-12: T8
SDNCN: T8
SCLCR: T8
SCMCN: T8
S08K: T8
Turning tool size:
MGEHR: 100 * 8 * 8mm / 3.94 * 0.31 * 0.31in
SDJCR: 81 * 8 * 8mm / 3.19 * 0.31 * 0.31in
S08K-12: 125 * 8 * 8mm / 4.92 * 0.31 * 0.31in
SDNCN: 81 * 8 * 8mm / 3.19 * 0.31 * 0.31in
SCLCR: 81 * 8 * 8mm / 3.19 * 0.31 * 0.31in
SCMCN: 82 * 8 * 8mm / 3.23 * 0.31 * 0.31in
S08K: 123 * 8 * 8mm / 4.84 * 0.31 * 0.31in
Turning tool with box weight:
MGEHR: 72g / 2.54ounce
SDJCR: 60g / 2.12ounce
S08K-12: 71g / 2.50ounce
SDNCN: 60g / 2.12ounce
SCLCR: 63g / 2.22ounce
SCMCN: 61g / 2.15ounce
S08K: 65g / 2.29ounce
Insert with box weight: 20g / 0.71ounce
Package size: 222 * 150 * 45mm / 8.74 * 5.91 * 1.77in
Package weight: 542g / 19.12ounce / 1.19lb

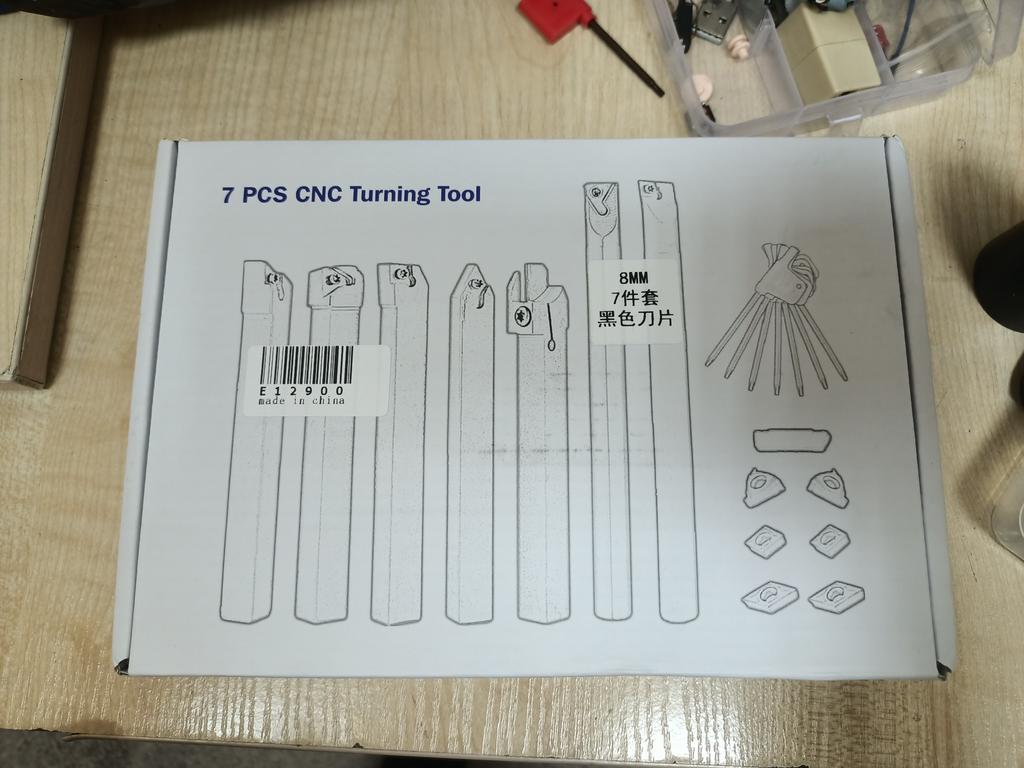

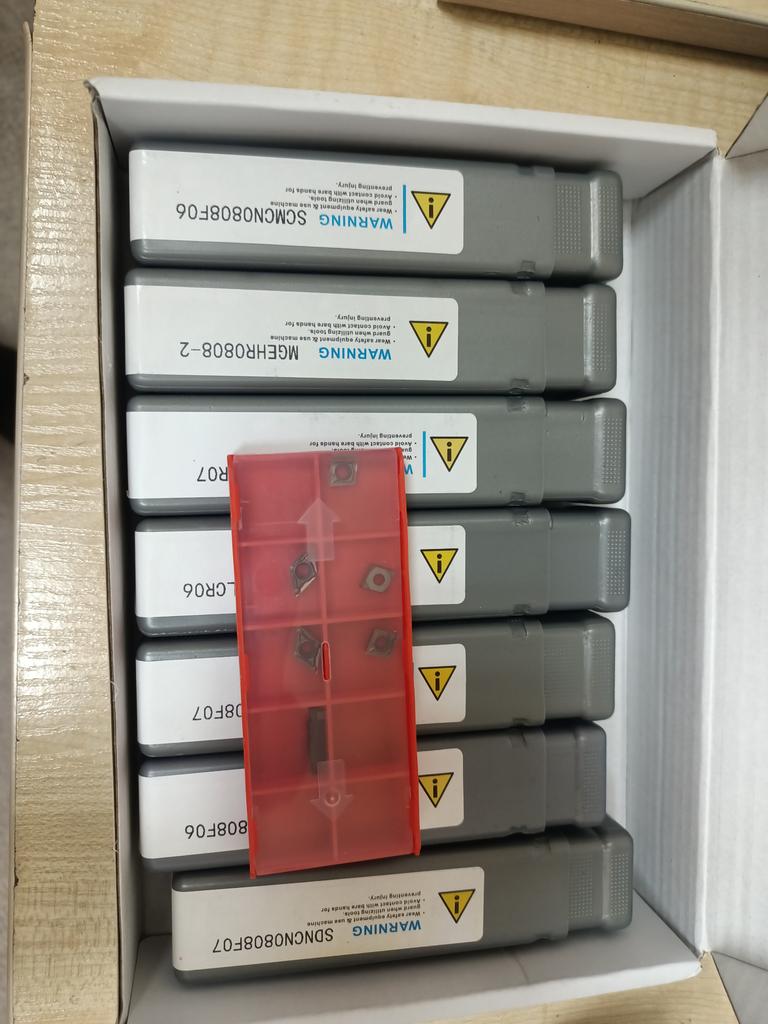

Packing List:
7 * 8mm Milling Tool Holder?
7 * Wrench
7 * Insert
