LCR-T4 Mega328 Transistor Tester Diode Triode Capacitance ESR Meter MOS/PNP/NPN
Features:
*Transistor Tester adopts Atmega328 chip,can test inductors, capacitors, diodes, dual diode, mos, transistor, SCR, the regulator, LED tube, ESR, resistance, adjustable potentiometer.
*Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFET, diode (including double diode), thyristor, transistor, resistor and capacitor and other components.
*Can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage.

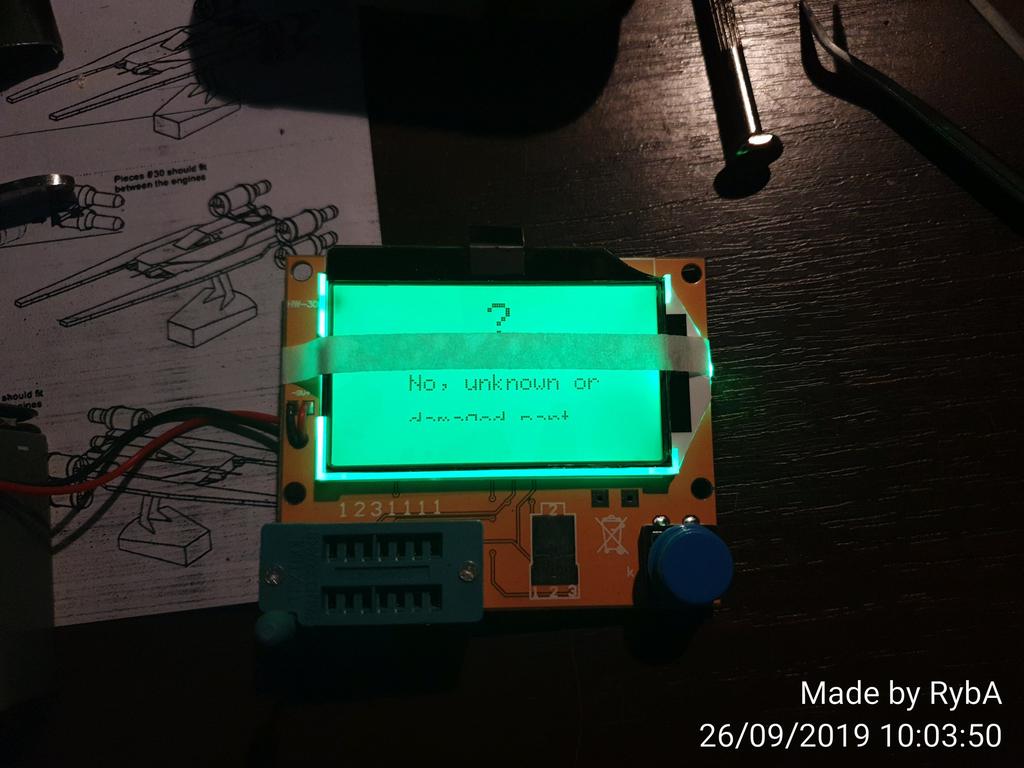

*Automatic test the pin of a component, and display on the LCD.
*Measure the gate and gate capacitance of the MOSFET threshold voltage
*12864 LCD display with green backlight.
Specifications:
*Item Condition:100% Brand New
*Color:As Pictures Show
*Type:Acrylic Case/LCR-T4 Transistor Tester/Transistor Tester+Battery Box/Transistor Tester+Case/Transistor Tester+Case+Battery Box (Optional)
*Power supply:9V battery(Not included)
*Test range:
Resistance:0.1 ohm resolution, maximum 50M ohm;
Capacitor:25pf -100,000 uf;
Inductors:0.01mh-20H.
*One -button operation, automatic shutdown .
*Only 20nA shutdown current.
*Automatically detect NPN, PNP bipolar transistors, N -channel and P-channel MOS FET, JFET, diodes, two diodes, thyristors small power unidirectional and bidirectional thyristor.
*Automatic identification components pin arrangement .
*Measuring bipolar transistor current amplification factor and base - emitter threshold voltage.
*Via the base - emitter threshold voltage and high current amplification factor to identify Darlington transistors.
*Can detect bipolar transistors and MOS transistors protection diodes.

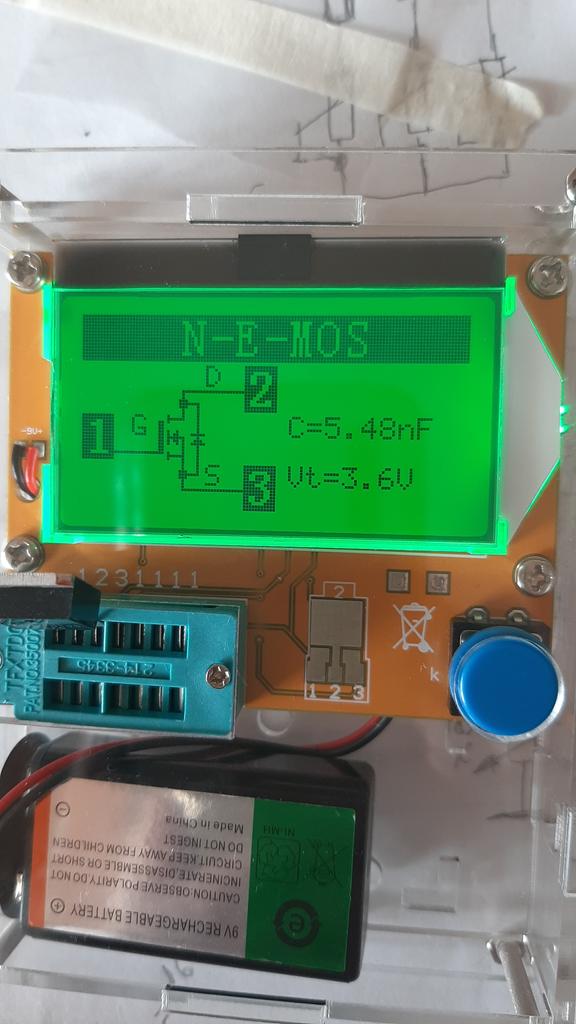

*Measuring the gate MOS FET threshold voltage and the gate capacitance.
*Can simultaneously measure two resistors and resistor symbol is displayed.
Package Contents:
1*Acrylic Case+1*LCR-T4 Transistor Tester
Warm tips:
1.It is DIY item, Not assembled.
2.Before measuring capacitance, the capacitor must be discharged, otherwise very likely damage the meter .
Notes: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
