TT685O II Compatibility: TT685IIO is compatible with Olympus: E-M10II, E-M5II, E-M1, E-PL8, E-PL7, E-PL6, E-PL5, E-P5, E-P3, PEN-F and Panasonic: DMC-GX85, DMC-G7, DMC-GF1, DMC-LX100, DMC-G85, DMC-GH4, DMC-FZ2500GK, etc.

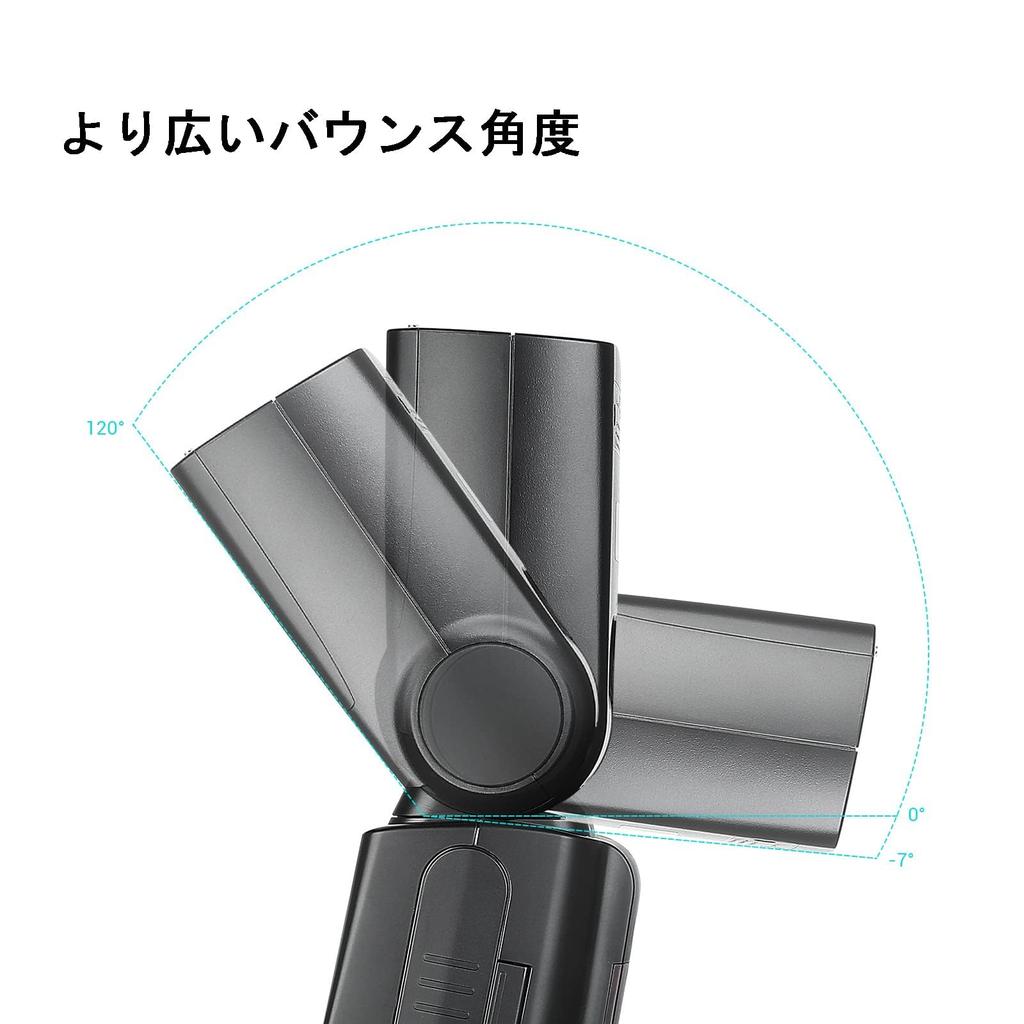

Flexible Rotation: Upgraded TT685II video light, the lamp head can rotate flexibly from -7°-120° vertically and 0-330° horizontally, providing more operating space for flash photography.
Powerful Functions: TT685II photography light has creative flash modes, such as high-speed synchronous strobe flash and rear curtain sync; TCM function added, supporting real-time conversion from TTL mode to manual mode.
Wide flash coverage: The TT685II studio flash has two zoom modes: automatic and manual; the flash coverage is set to accommodate lens focal lengths from 20 to 200mm.
Upgraded hot shoe: TT685II adopts hot boot snap for quick installation, quick mounting and dismounting.
Product Specifications
Model: TT685II-O
Guide number (1/1 gear, focal length 200mm): GN≈60 (m ISO100)
Flash Duration: 1/300sec-1/20000sec
Flash coverage: 20~200mm
Flash head rotation/tilt, horizontal 0~330°, vertical -7°~120 (bounce flash)
Manual Zoom
Auto zoom (automatically sets flash coverage appropriate for lens focal length and image size)
Strobe flash: Available (100 flashes; 199Hz)
Sync Mode: High-speed sync (up to 1/8000 sec), front-curtain sync, rear-curtain sync
Exposure control system: TTL I1 auto flash, manual flash
Flash Exposure Lock (FEL): Use the camera's "FEL" or "*" button
Flash Exposure Compensation (FEC): Manual, Flash Bracketing: Adjusts in 1/3 gear increments between +3 gears (Manual flash exposure compensation and flash bracketing can be used in combination)

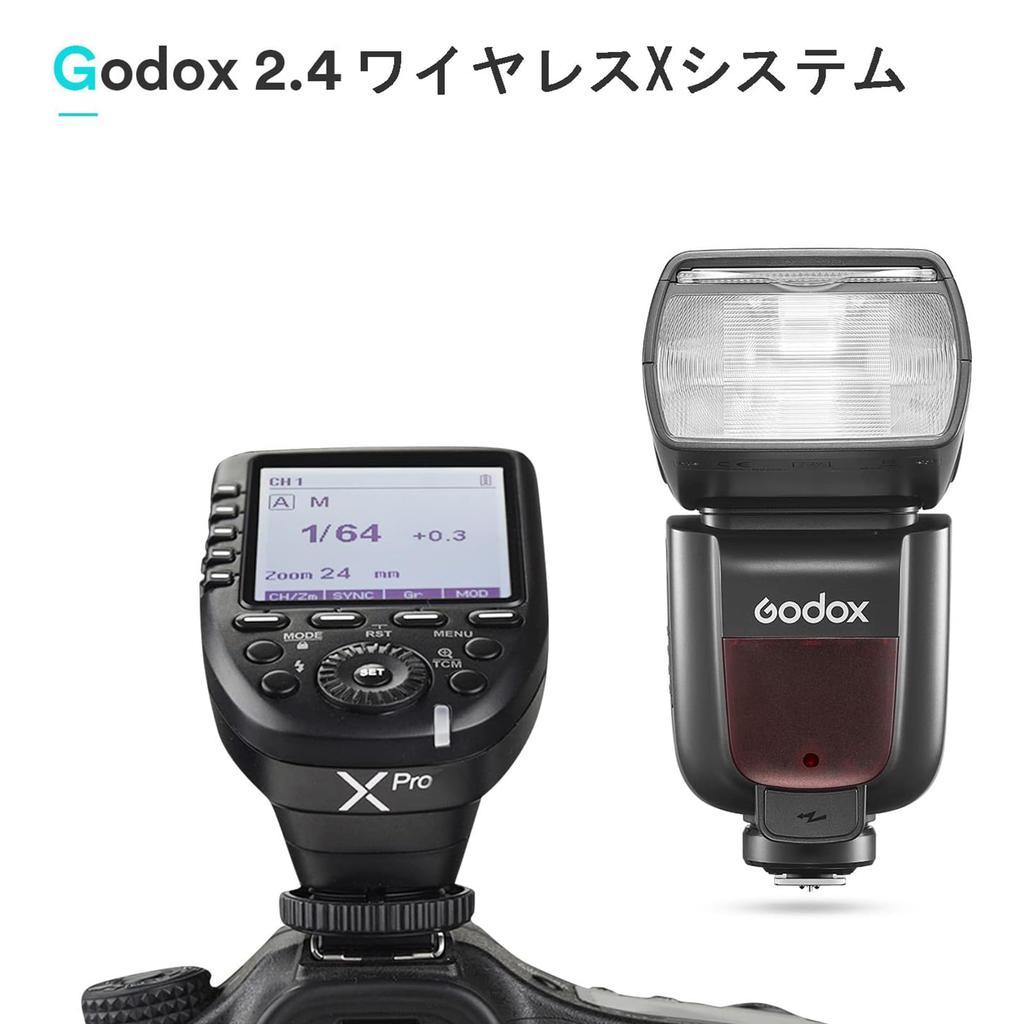

Wireless flash: Radio 2.4G transmission
Main control unit group: A, B, C, D
Channels: 32 (1 to 32)
Flash modeling: Flash using the camera's depth of field preview button
Wireless Function: Master unit, Slave unit, Off
Transmission range (approx.): 100 meters
ID: 01-99
Controllable slave unit groups: A, B, C, D, E (Group E can be controlled by X-series flash triggers)
Approximate range of autofocus assist light: Center: 0.6-10 meters / Edge: 0.6-5 meters
Full power flash time: Approx. 290 times (Ni-MH rechargeable)
Recycle time: 0.1 to 2.6 seconds
AA batteries: NiMH batteries (recommended) or LR6 alkaline batteries * 4
Sync trigger mode: Hot shoe, 2.5mm sync line
Energy saving: The flash will automatically power off after about 90 seconds of unattended use, and will sleep for 60 minutes when set as a slave unit.
Net weight (without): 405g
Size: 64*76*190mm
