Label:Yes
4.The gold - plated double - row pins have a long service life. Using screw terminal block, which is convenient to connect wires.
5.Widely used in educational experiments, electronic engineering design or test trimming is an excellent application.
2.The resistance range can be set flexibly and quickly from 0.1R to 9999999R, with a step accuracy of 0.1R. Each resistor has an accuracy of 1% and the rated power of each resistor is 1/2 W.
1.Design Based on the "Resistor Series" Theorem
3.8 jumper caps with accessories for programmable resistors: 0.1 to 9999999 ohms, with a step of 0.1 ohm.
Specifications:

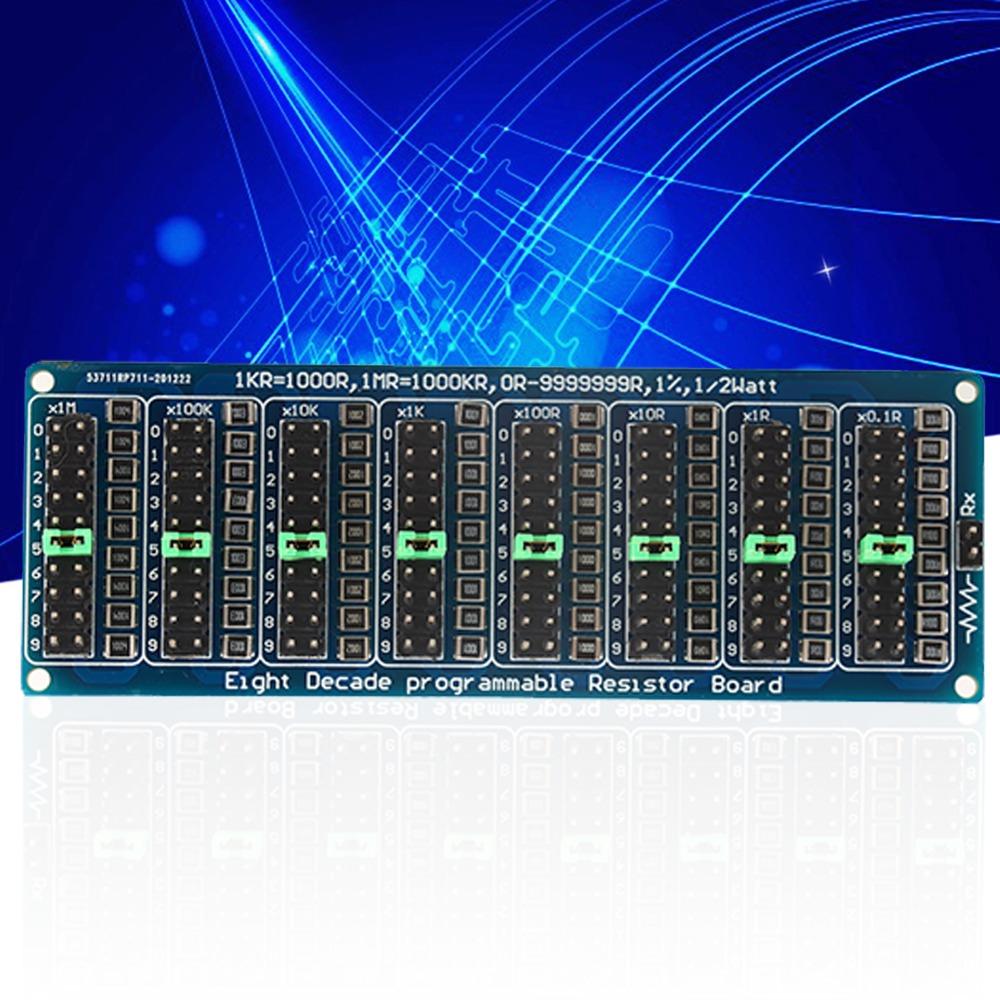

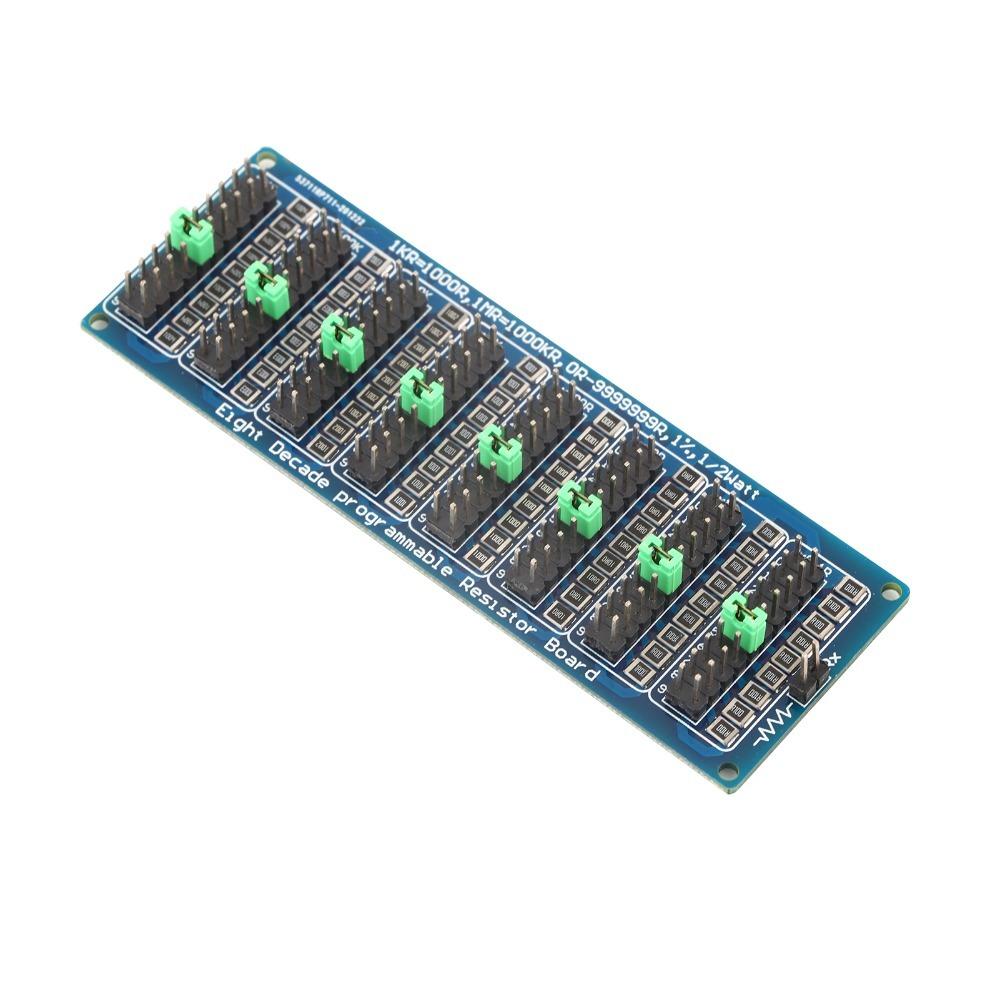

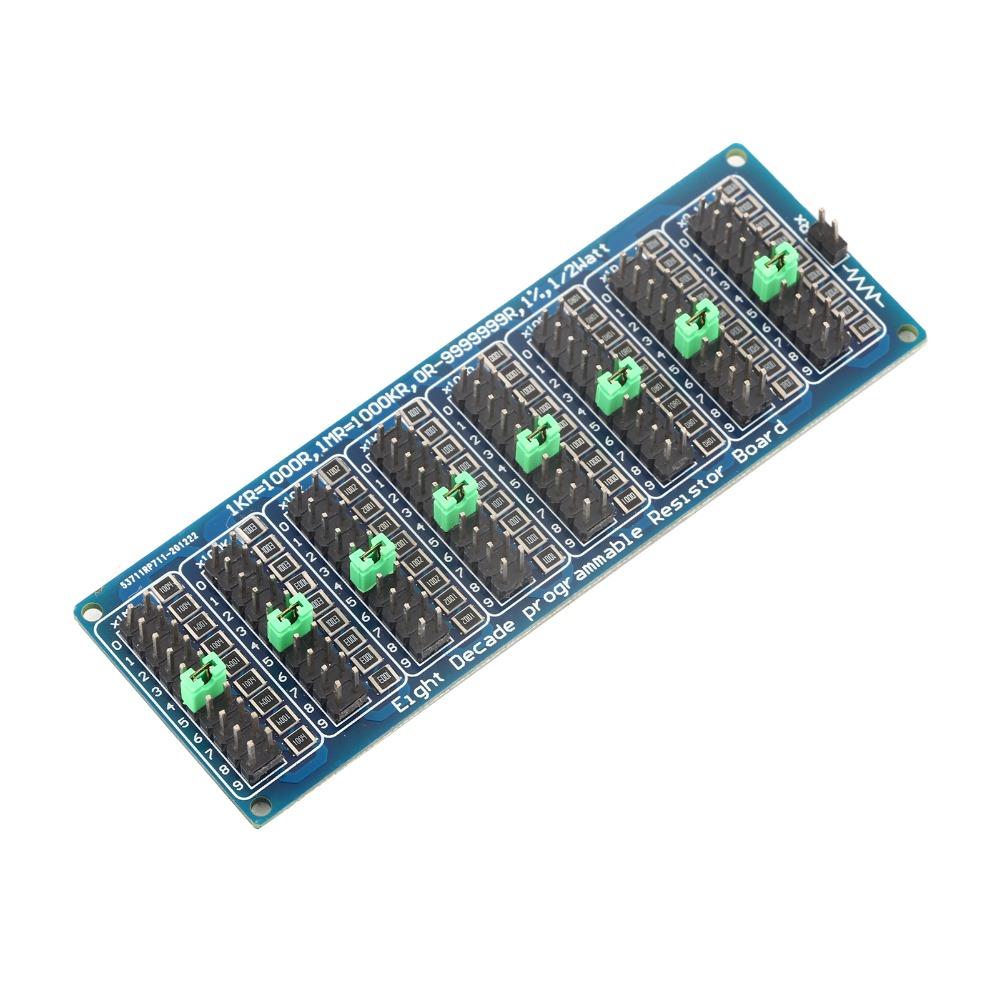

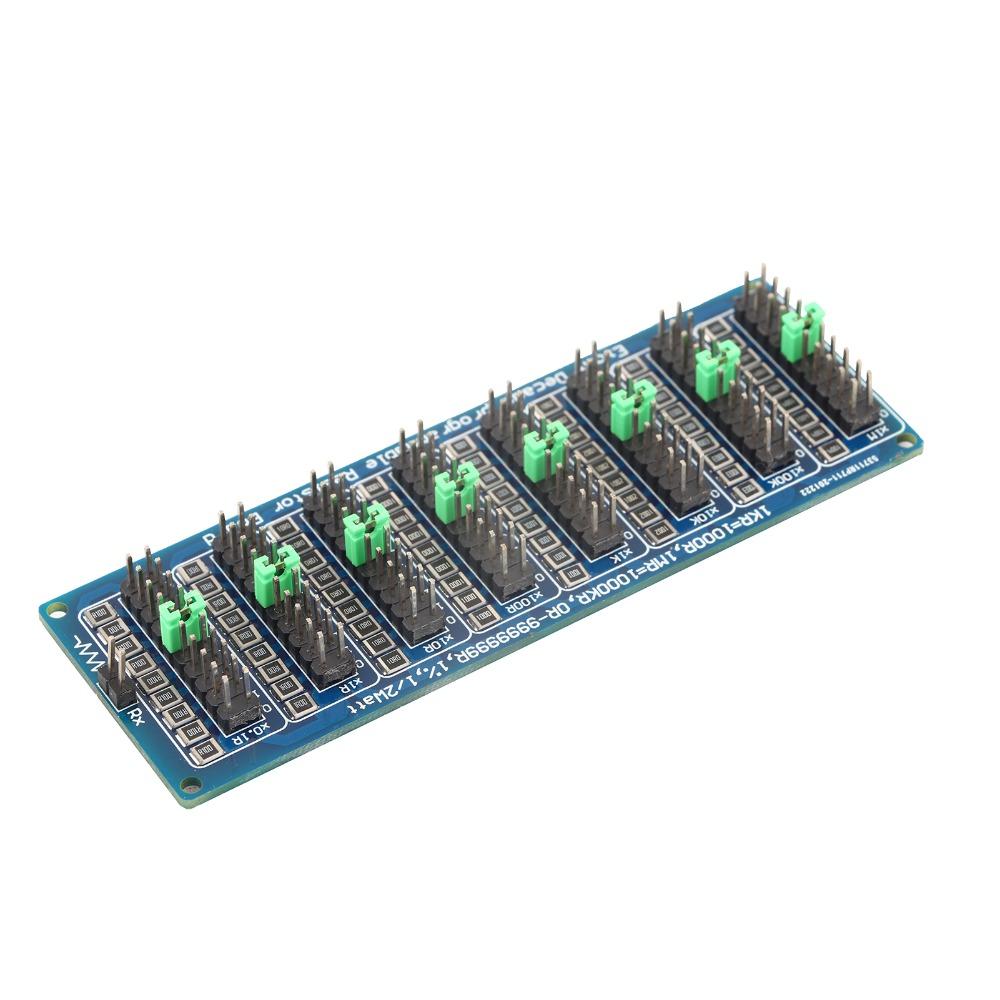

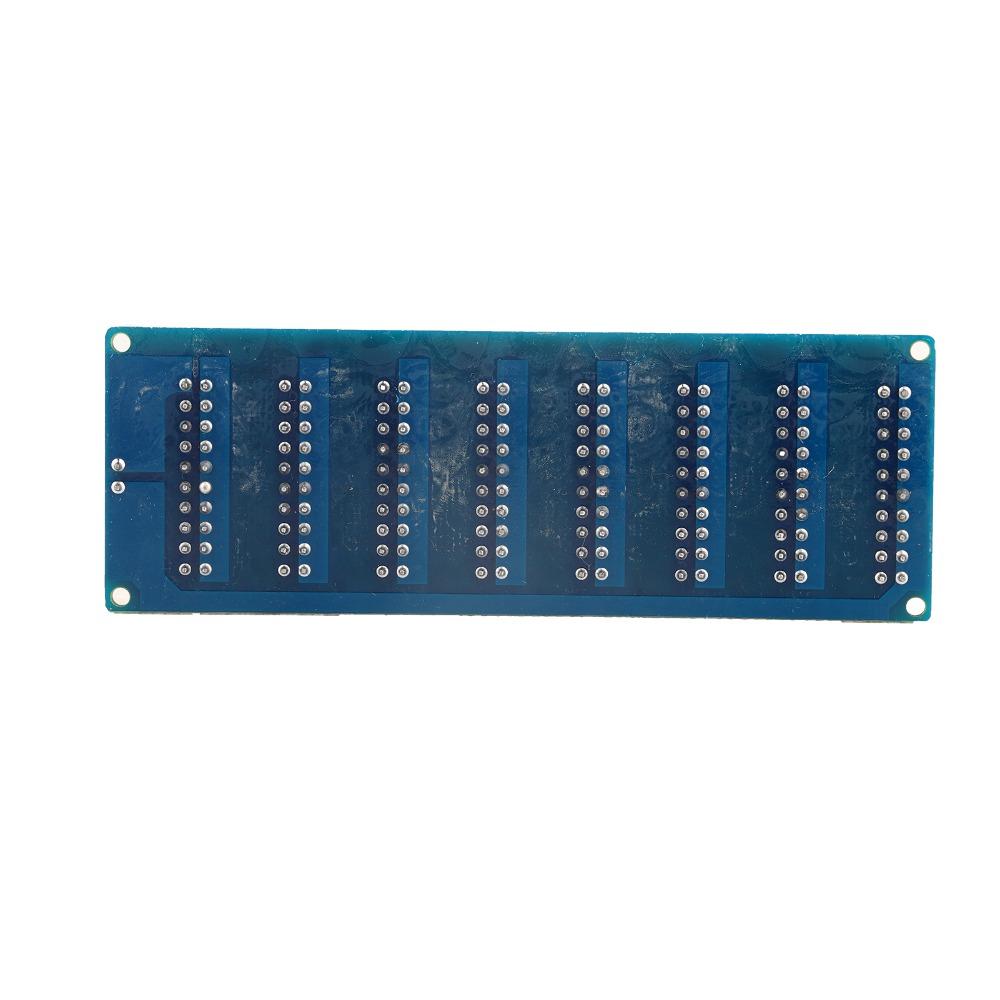

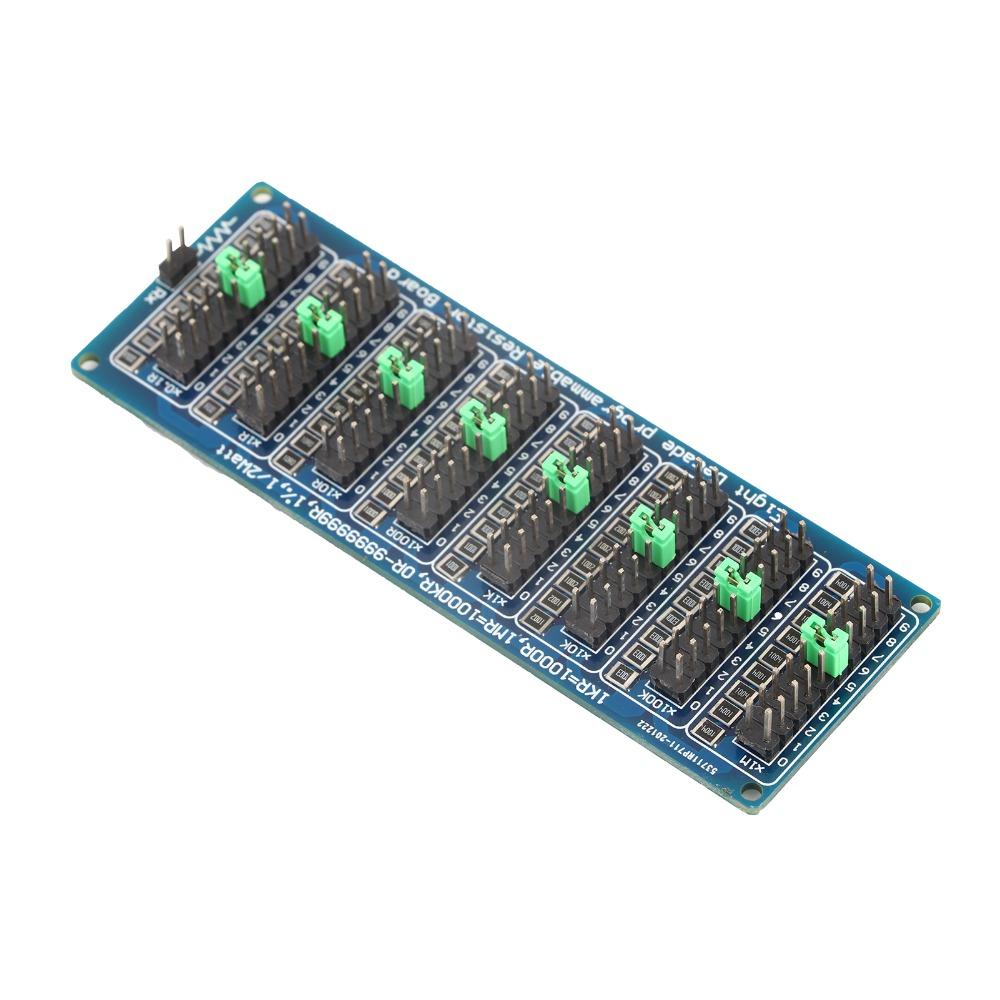

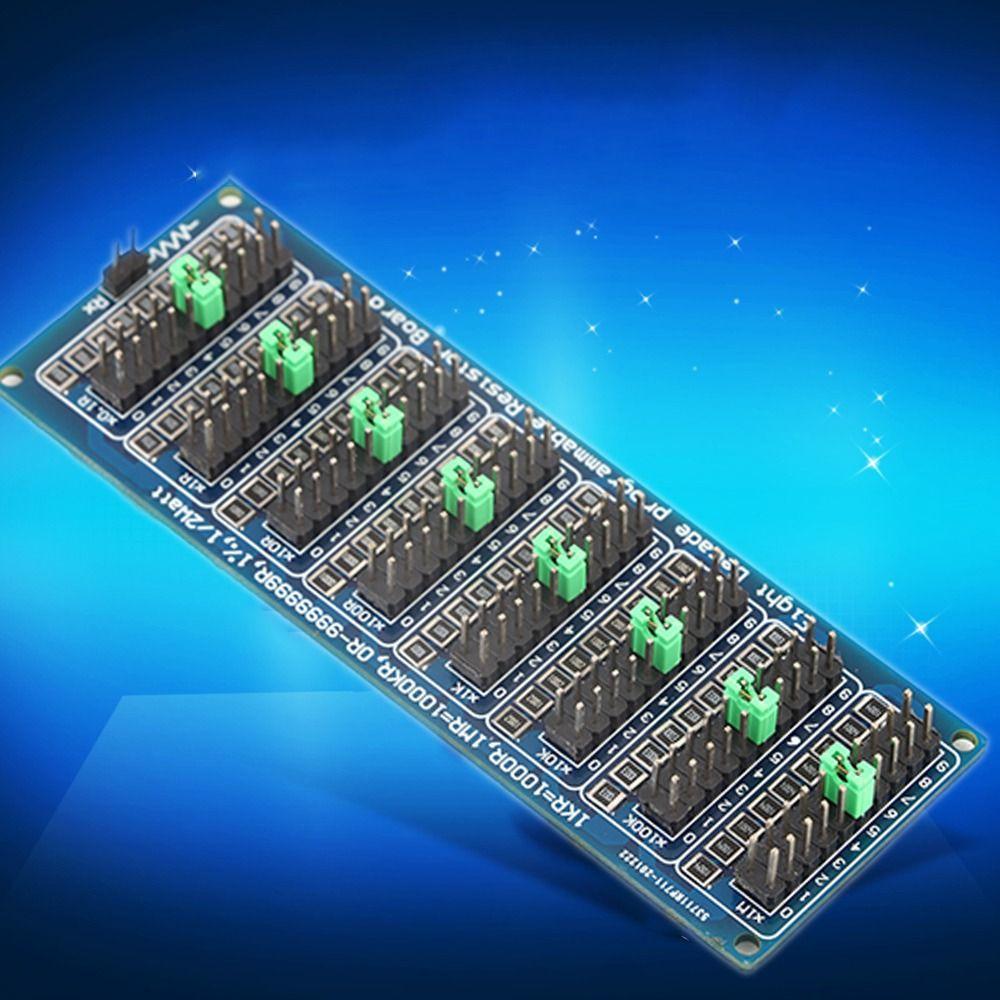

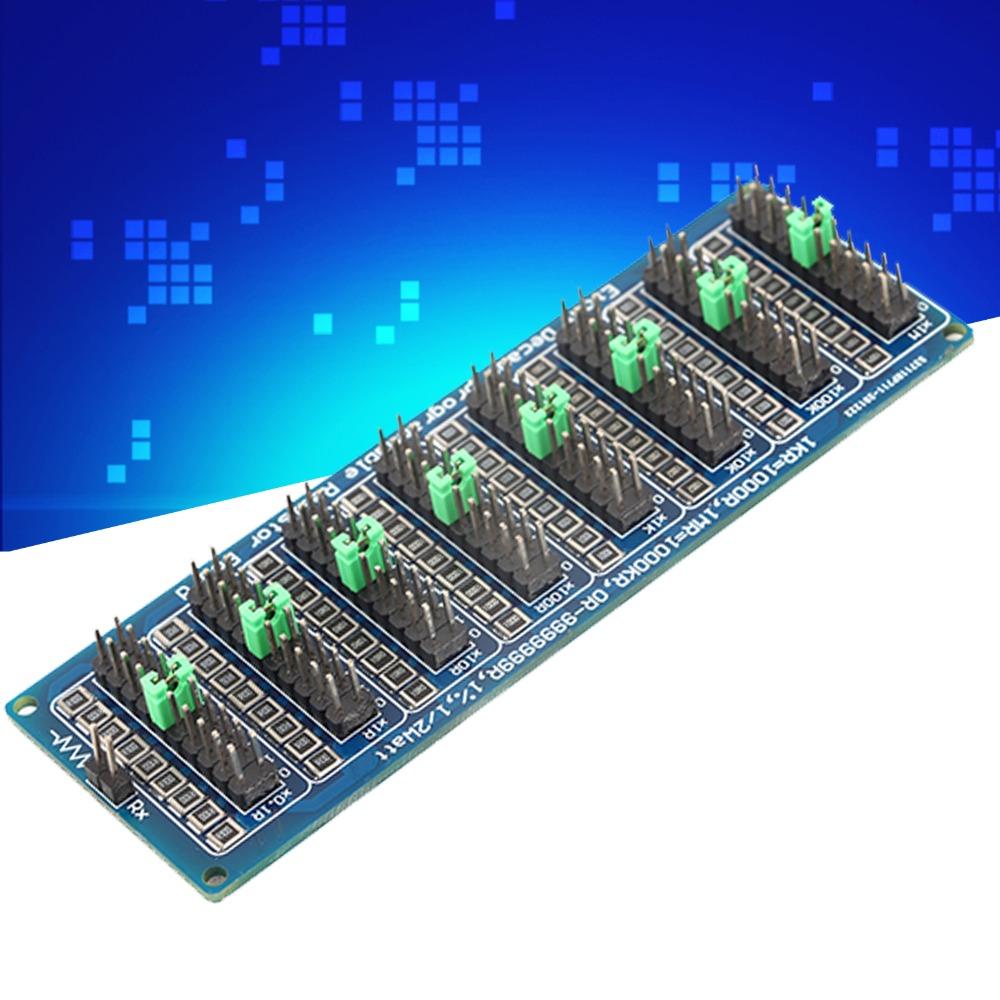

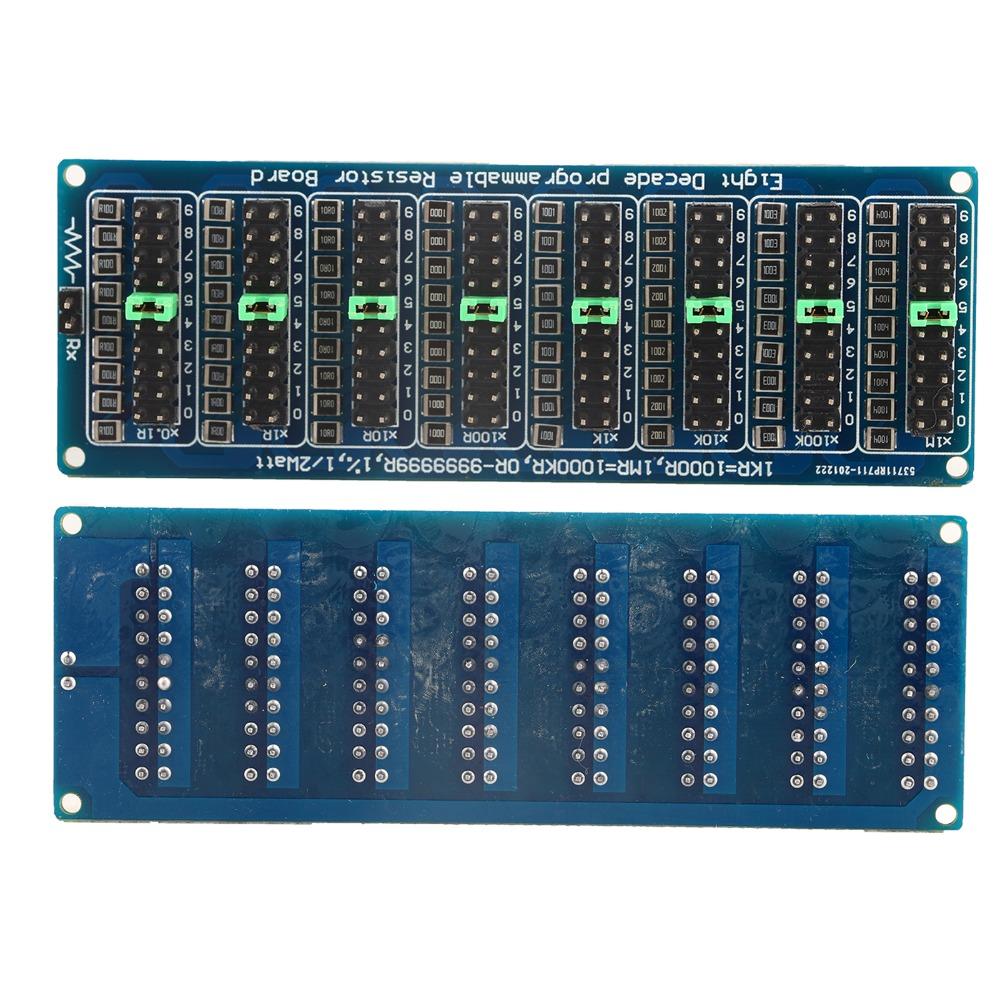

Item Type: Programmable Resistor Board
Material: FR4 Glass fiber printed circuit board
Resistance Tolerance: +/- 1%
Rated Power: 1/2W.
Programmable Resistance: 0.1 to 9,999,999 ohm, 0.1 ohm/step.

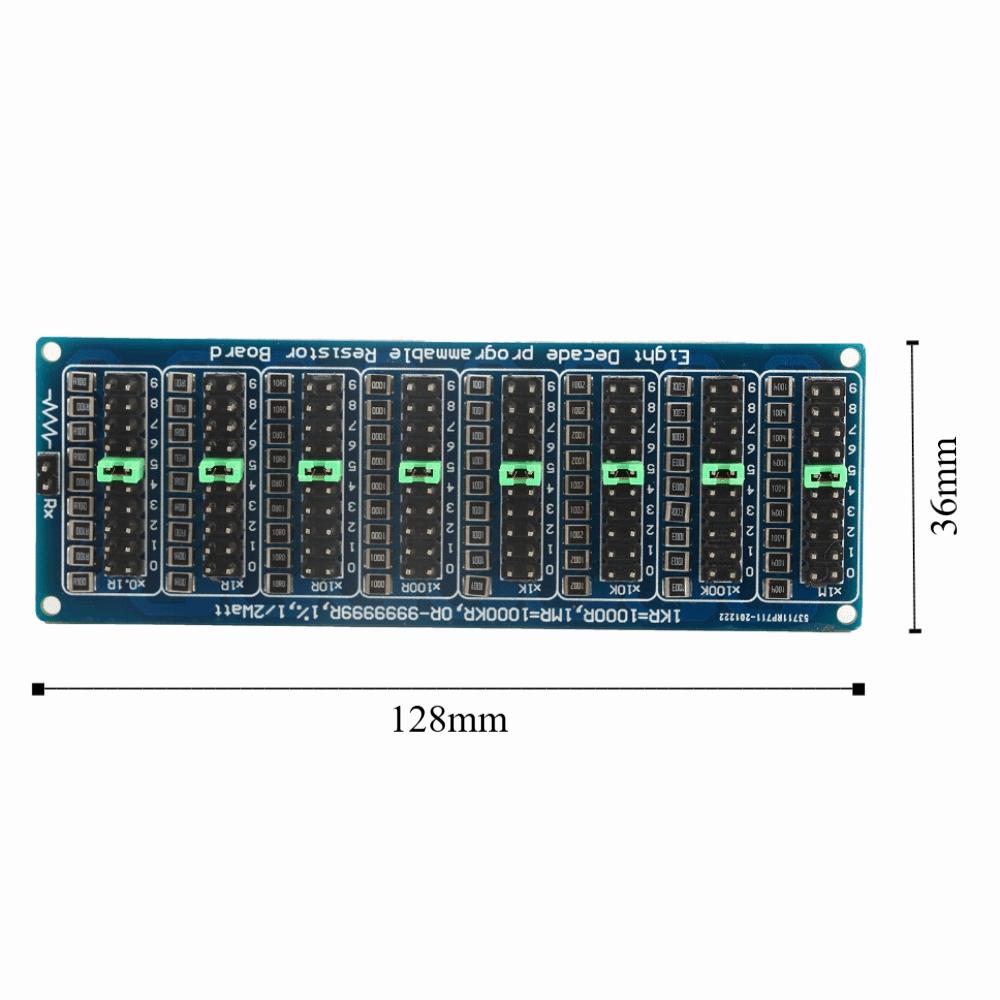

Resistor Board Size:128*36mm(5.04*1.42in)
Fixed hole center distance:121*29mm(4.76*1.14in)
Fixing hole diameter:3.1mm(0.12in)
Package List:
1 x Programmable Resistor Board
