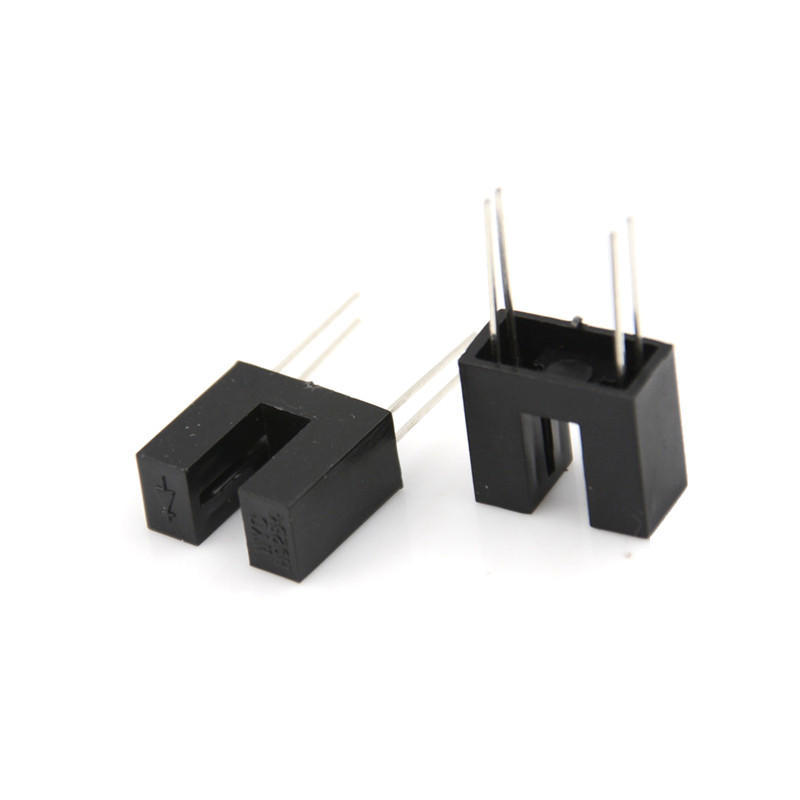

Product Name : Slotted Optical Switch;
Model : H92B4;
Output Type : Photo Transistor Peak Emission
IR Diode Reverse Voltage : 5V
Transistor Power Dissipation : 75mW;
Transistor Collector Current : 20mA
Photo Transistor Collector-emitter Voltage : 30V;
Photo Transistor Emitter-collector Voltage : 5V
Diode Power Dissipation : 100mW;
Operating Temperature Range : -55~100 Celsius Degree
Number of Pins : 4
Slot Width : 4.1mm/1/6''
Slot Depth : 8mm/0.3''
Pin Length : 11mm/0.43''
Pitch : 8mm/0.31'', 2.54mm/0.1''
Total Size : 22 x 12 x 6mm/0.9'' x 0.5'' x 0.2''(L*W*H)
Material : Plastic, Metal
Color : Black

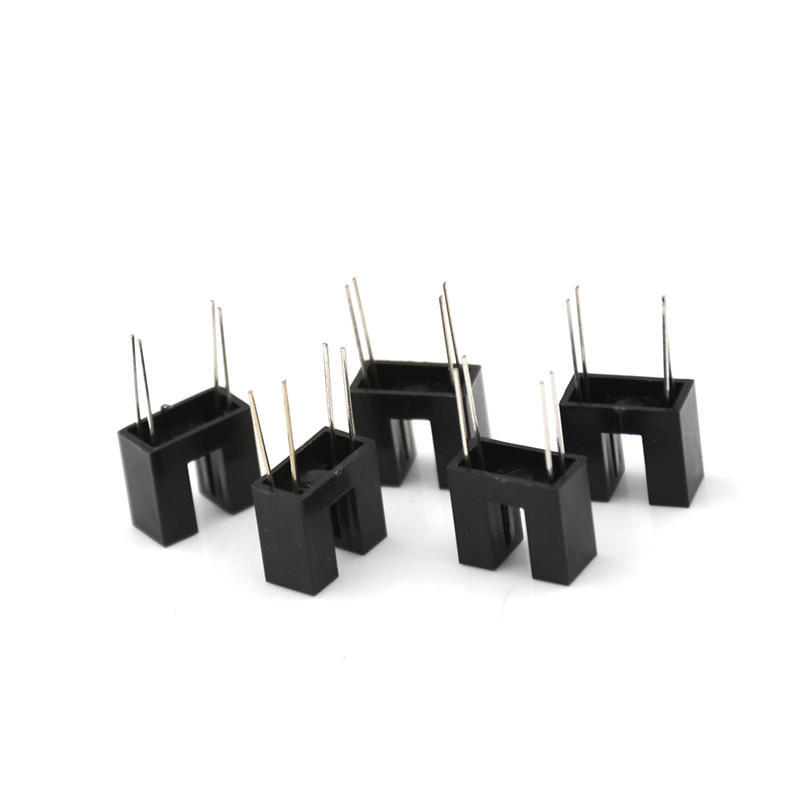

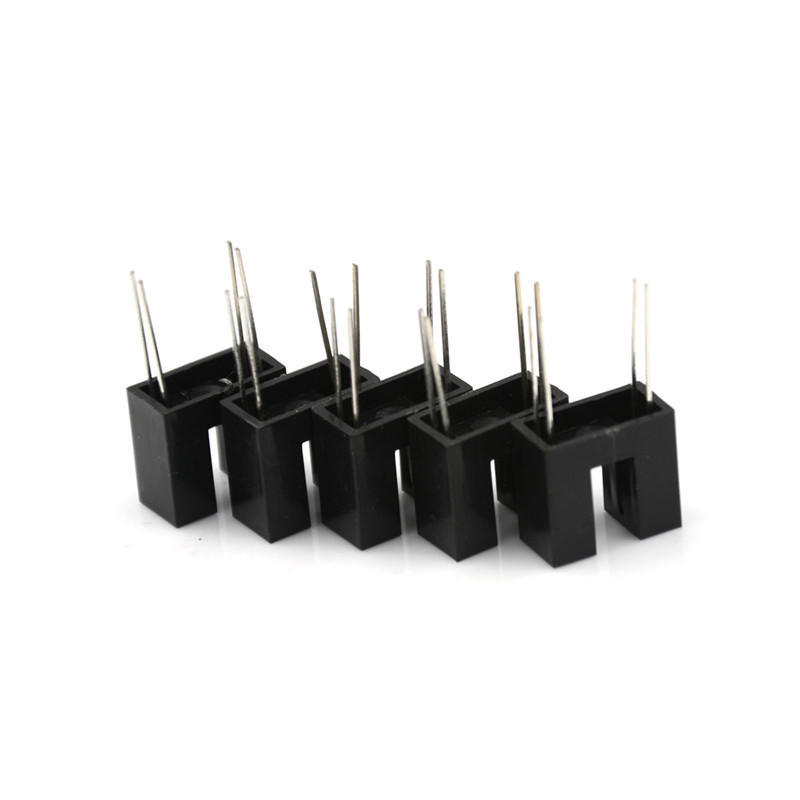

Package Content : 5 x Slotted Optical Switch
