2.Premium Base Materials: Premium engineering plastic housing, fire retardant, long service life.
3.Safe and Reliable: Our rail-type switching power supply features multiple protection functions, including short-circuit protection, overload protection, overcurrent protection, ensuring your electrical safety.
1.Parameters: Input voltage range: AC 85-264V, 47-63Hz; DC output voltage: DC 12V, maximum rated output current: 1.25A, output power: 15W.
4.compact design:The 12v dc switch converter is compact modularization design, DIN rail mount..

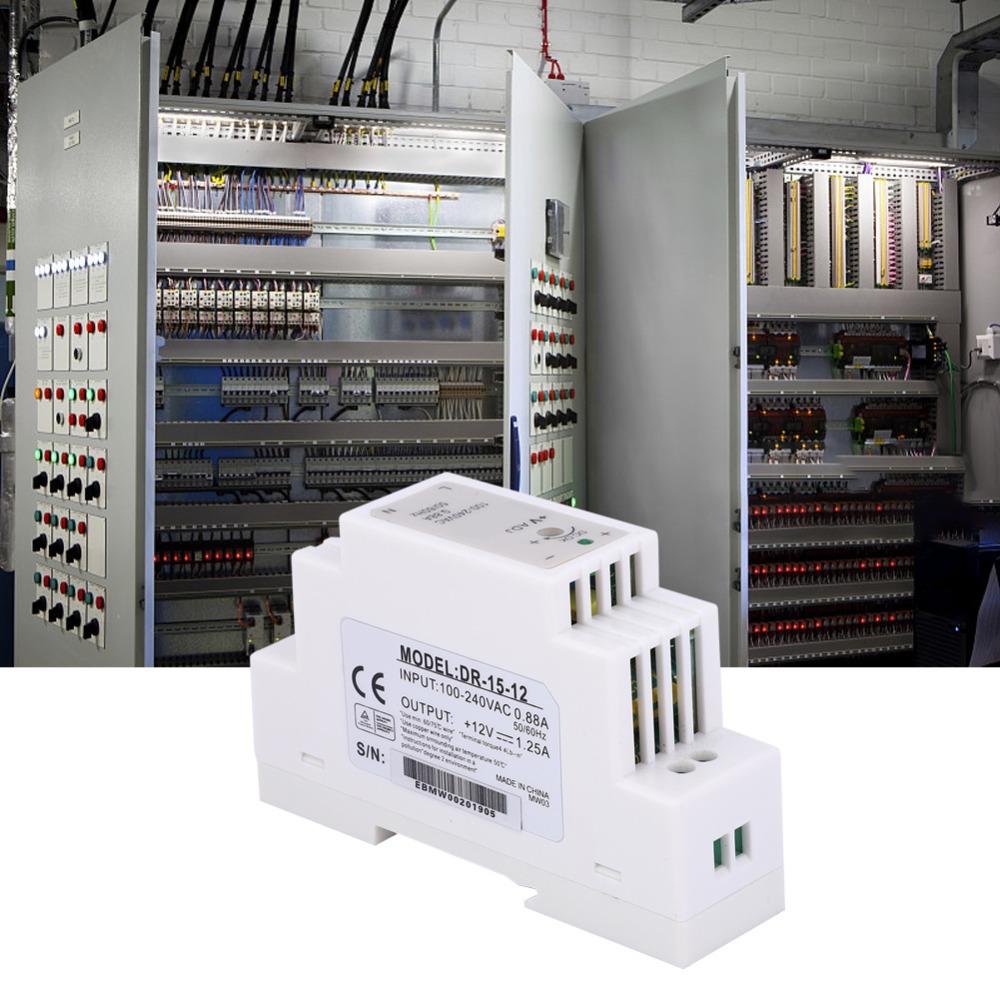

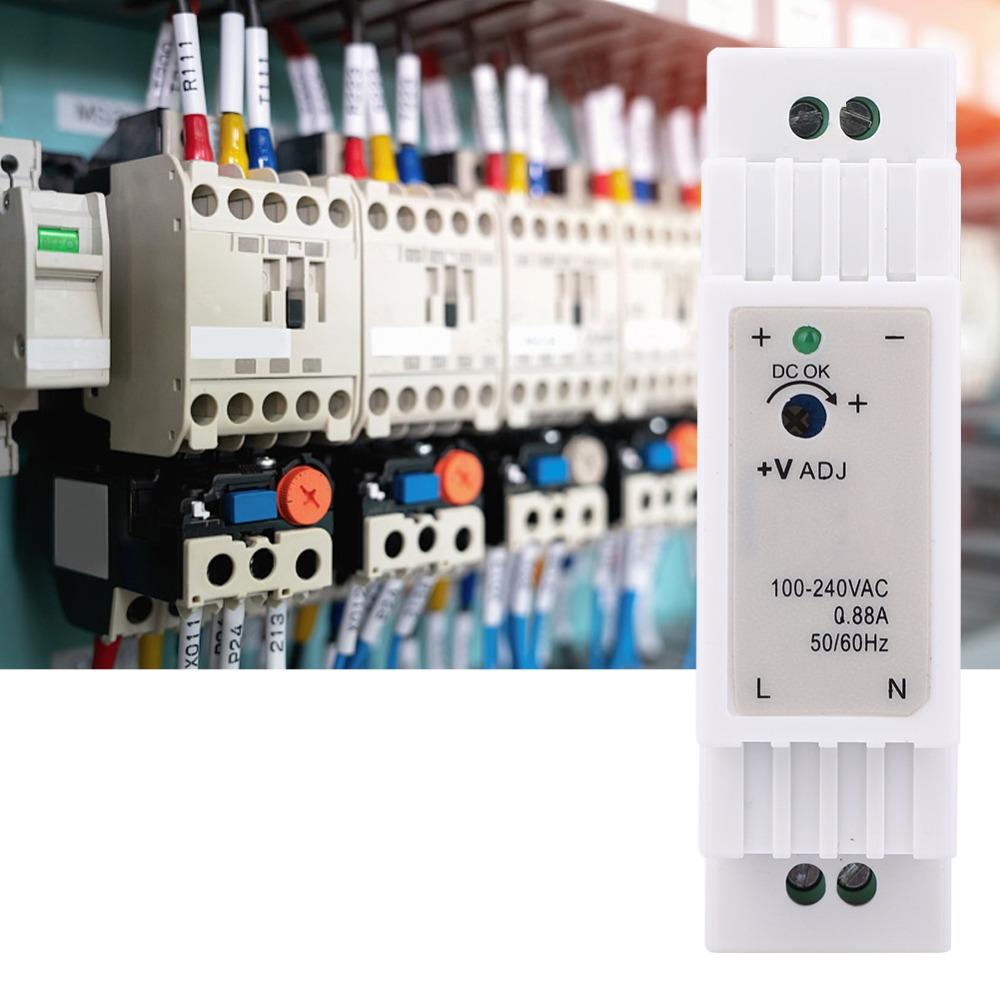

5.Widely Used: The 12v dc power supply is widely applied in:control cabinet, industrial control equipment, and other device that requires stable power supplying.
Specifications:

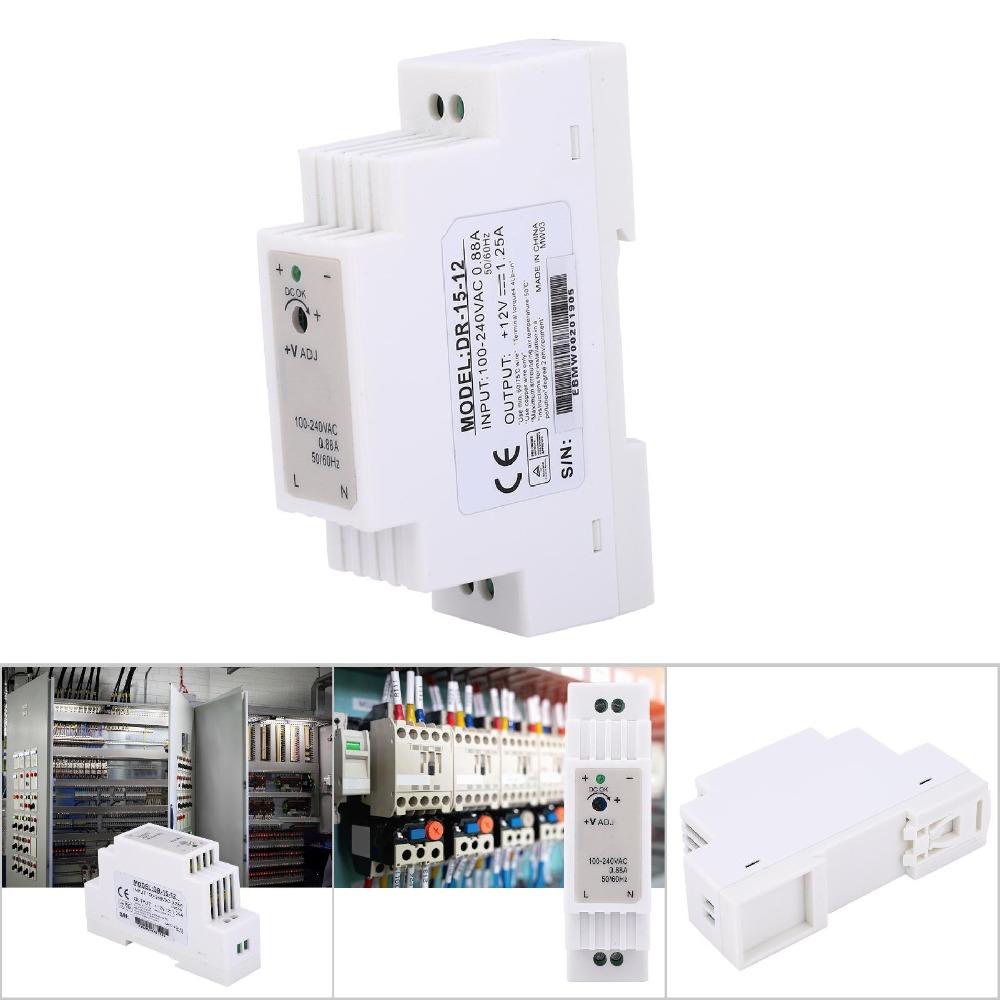

Item Type: DIN Rail Power Supply

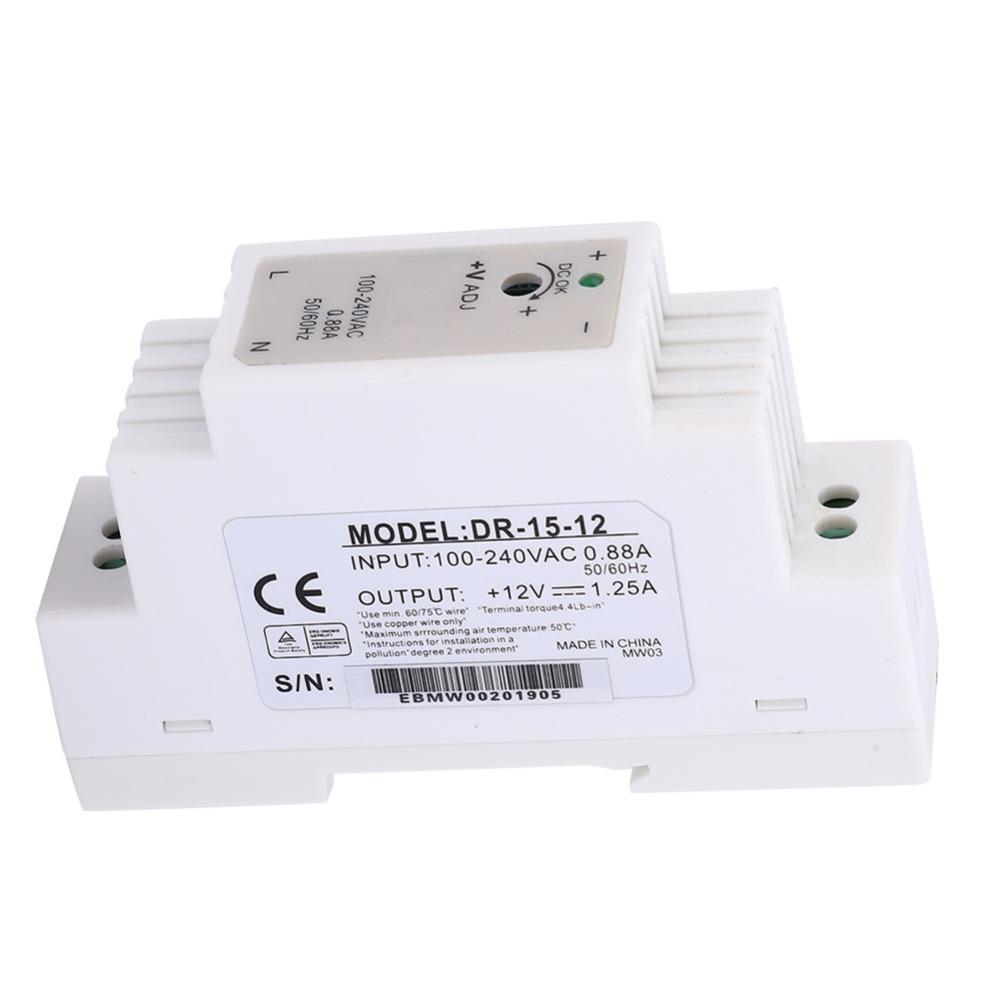

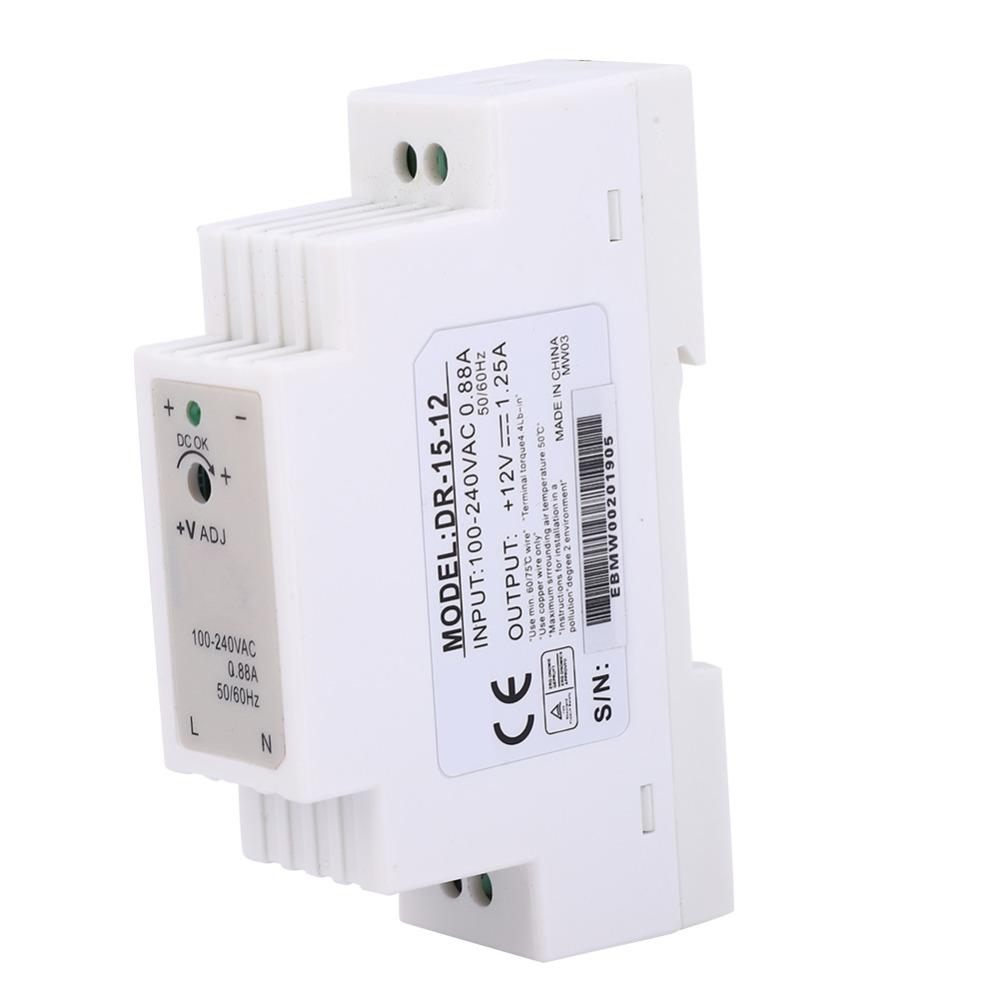

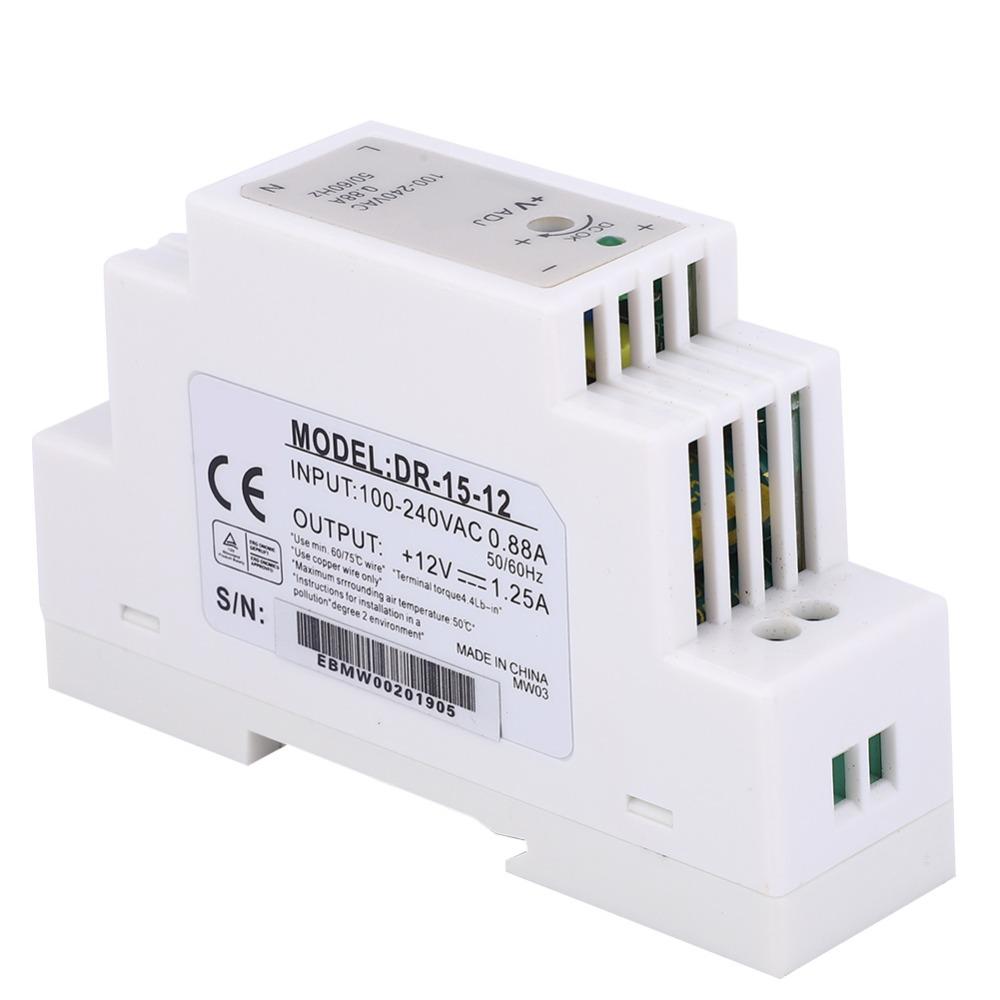

Model: DR-15-12
Type: AC/DC Power Supply
Modulation Method: Pulse Width Modulation (PWM)
Output Power: 15W
Output Current: 1.25A
DC output voltage: 12V
Input frequency: 47-63HZ
Work Efficiency: 83%
Output Fluctuation Noise: 100mvp-p
Load Regulation : ±1%
Working Temperature:-30-70 °C
Working humidity: 20-90RH
Scope of Application: Control Cabinet, Industrial Control Equipment

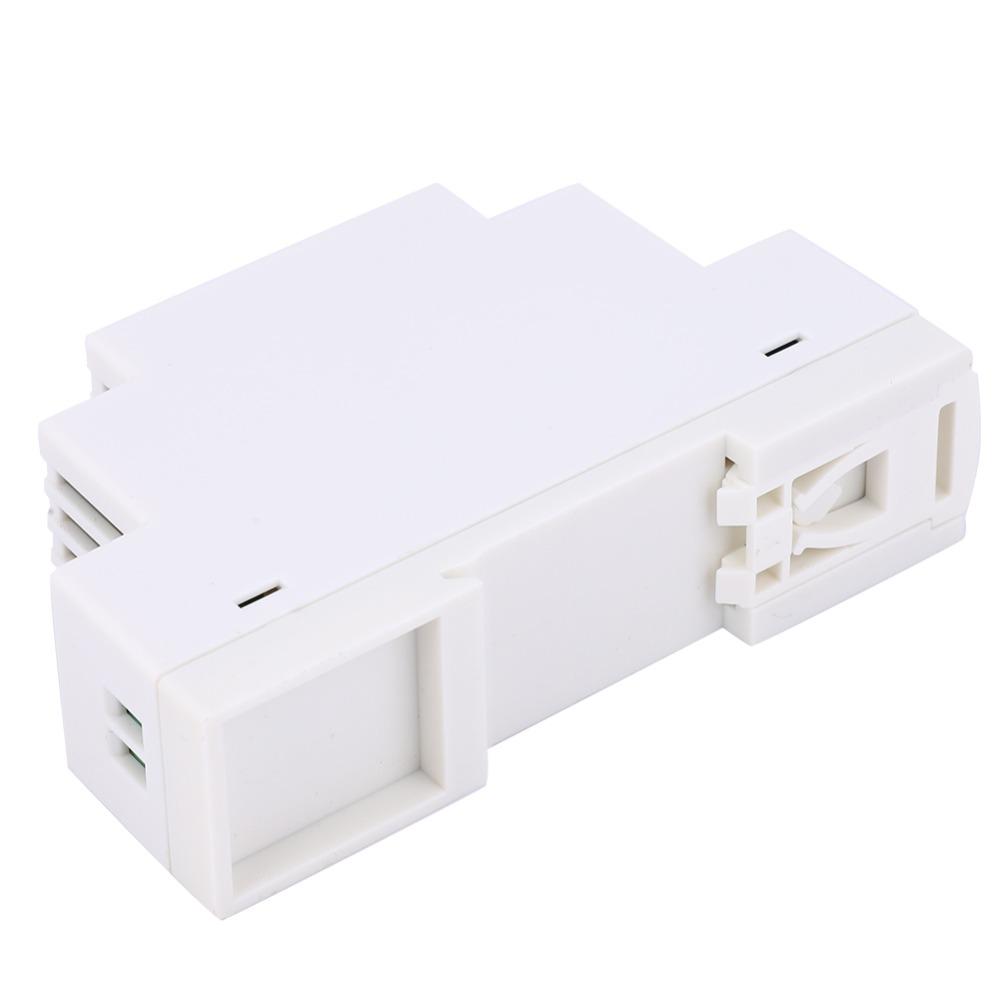

Mount Method: DIN Rail Mount
Protection Rating: High
Package List:
1 x DIN Rail Power Supply
Note:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item.

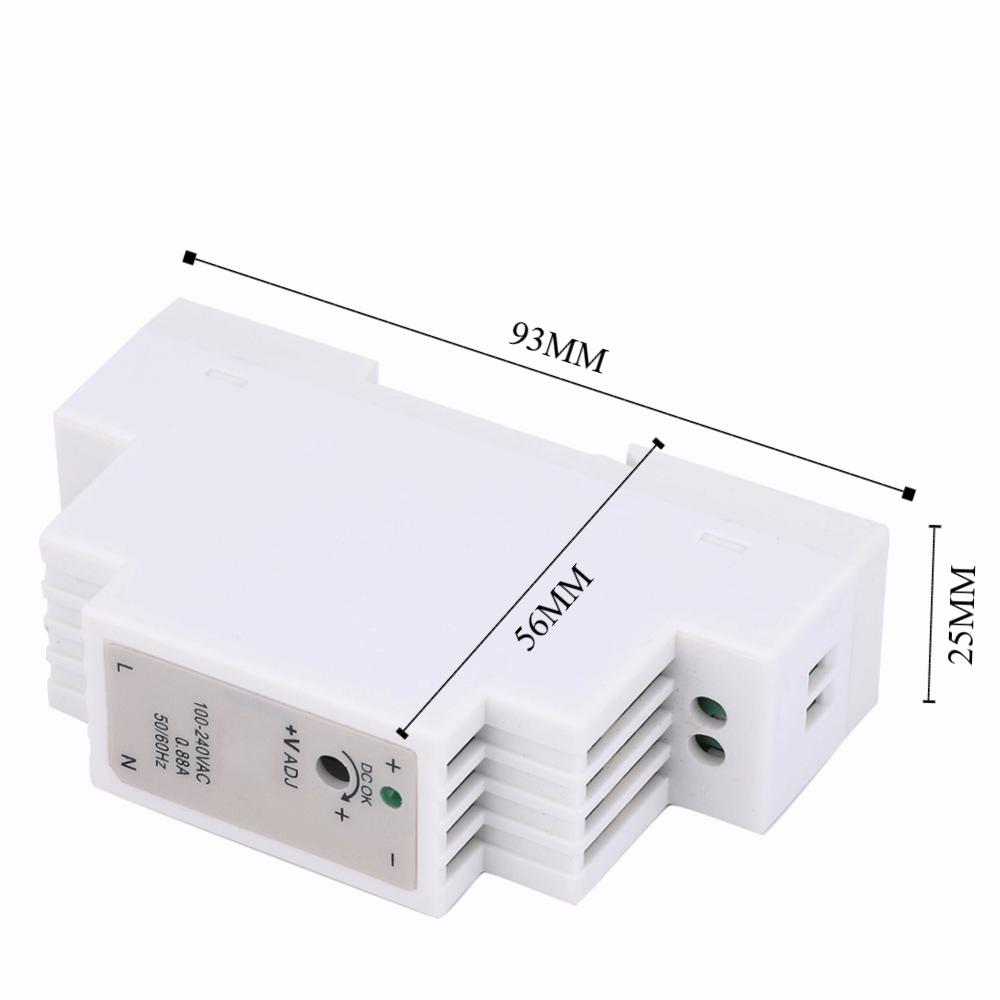

2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding.
