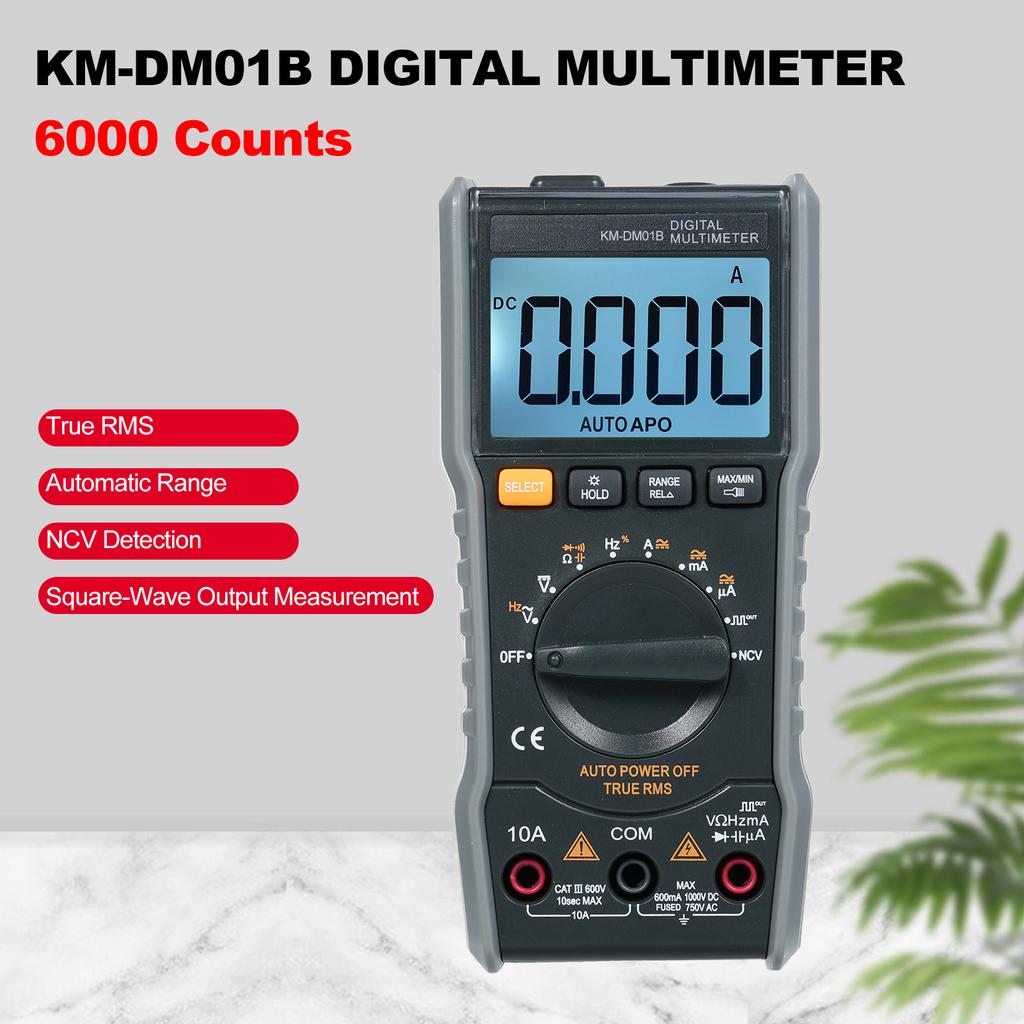

Feature:
1. Multi Functional: It can measure AC DC current, AC DC voltage, resistance, capacitance, square wave output, frequency, continuity and diode test, fire wire detection, true RMS etc.
2. LCD Large Screen: The instrument uses a large screen LCD display, 6000 counts, handwriting clear, no parallax, with a backlight and an illumination lamp to facilitate users to read the measurement display value in a dark place.
3. NCV Voltage Induction Detection: Adjust to the NCV gear, and when the nearby AC voltage is detected, an alarm sound will be issued.
4. Square Wave Testing: The inclusion of a square wave tester function makes this multimeter a must have for professionals working with digital circuits and PWM (Pulse Width Modulation) systems. This feature allows for comprehensive testing capabilities, further expanding its utility in electronics diagnostics and development.
5. Test Jack: Meticulous workmanship, reasonable design, insert the test s smoothly and tightly, with maximum input value prompt.
6. Auto Power Off: The product is AAA battery powered, After about 15 minutes of inactivity, it will automatically cut off the power, enter the hibernation mode, in the automatic shutdown mode, any key can be restarted.
7. Data Retention: One click pause, persistent display of measurement data, convenient for data recording.
8. High Quality Shell: Made of High quality ABS with a soft silicone protective cover, which is crash resistant, anti shock and has comfort hand held feeling.
9. Compact & Accurate: as small as a mobile phone, convenient to use and carry around. Built in with high performance chip to ensure its accuracy.

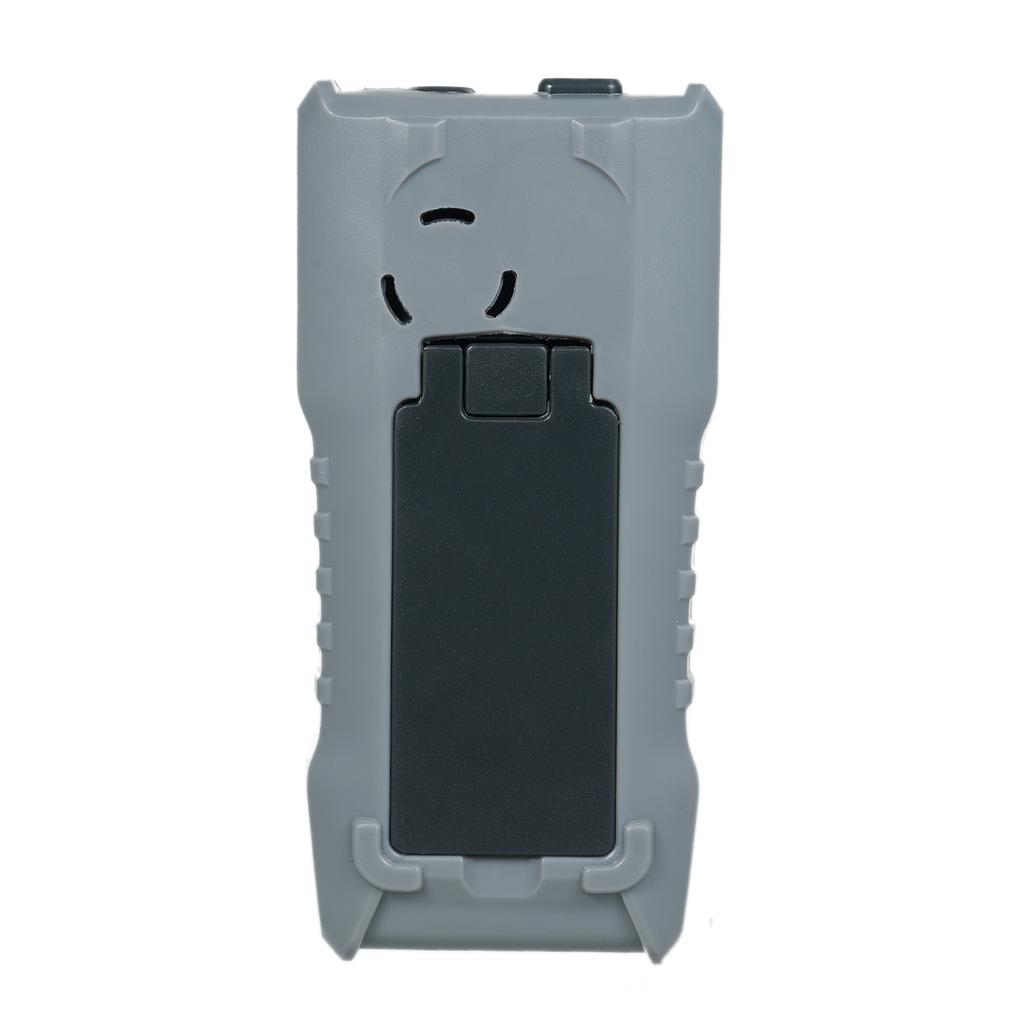

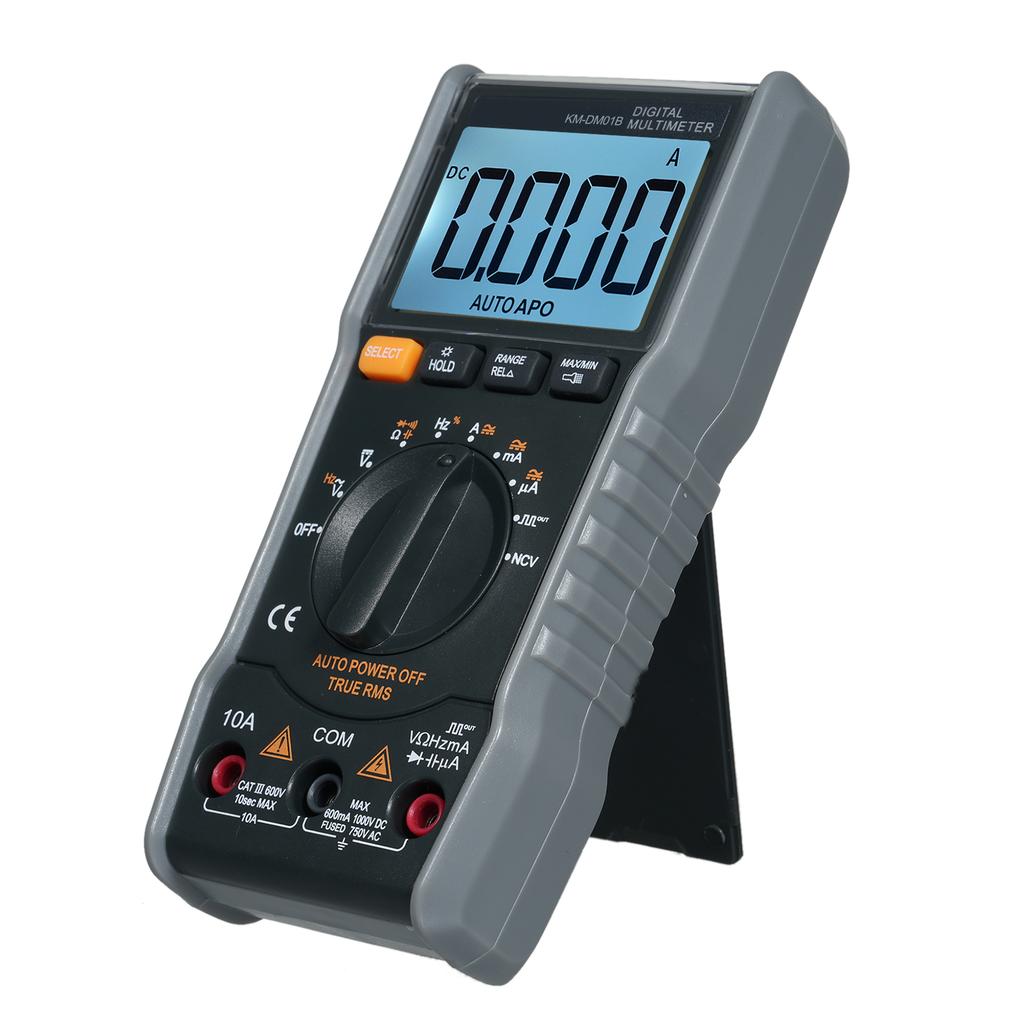

10. Back Support Frame: Innovative oblique vertical bracket design, which can be tilted at an angle after being pulled out, making it convenient to place.
Specification:
Measuring Range:
DC Voltage: 6V 60V 600V 1000V
AC Voltage: 6V 60V 600V 750V
DC Current: 600uA 6000uA 60mA 600mA 10A
AC Current: 600uA 6000uA 60mA 600mA 10A
Resistance: 600 Ohm 6k Ohm 60k Ohm 600k Ohm 6M Ohm 40M Ohm
Capacitance: 60nF 600nF 6uF 60uF 600uF 6mF 30mF
Frequency: 10Hz 100Hz 1kHz 10kHz 100kHz 1MHz 20MHz
Duty Cycle: 0.1percent 99percent
Square Wave Output: 50Hz 100Hz 200Hz 300Hz 400Hz 500Hz 600Hz 700Hz 800Hz 900Hz 1000Hz 2000Hz 3000Hz 4000Hz 5000Hz
Special Functions: Diode test, on off beep, automatic shutdown, input impedance, NCV, true RMS measurement, square wave output, average value measurement, data hold, LCD backlight, low battery prompt, flashlight...
Display:LCD
Maximum display: 5999(3 5 6) bits automatic polarity display
Measurement: double integral A D conversion
Sampling Rate: about 3 times per second
Overrange display: the most significant bit was "0L"
Working environment: 0 40 celsius , relative humidity<80percent
Power Supply: AAA 1.5V battery
Material: ABS

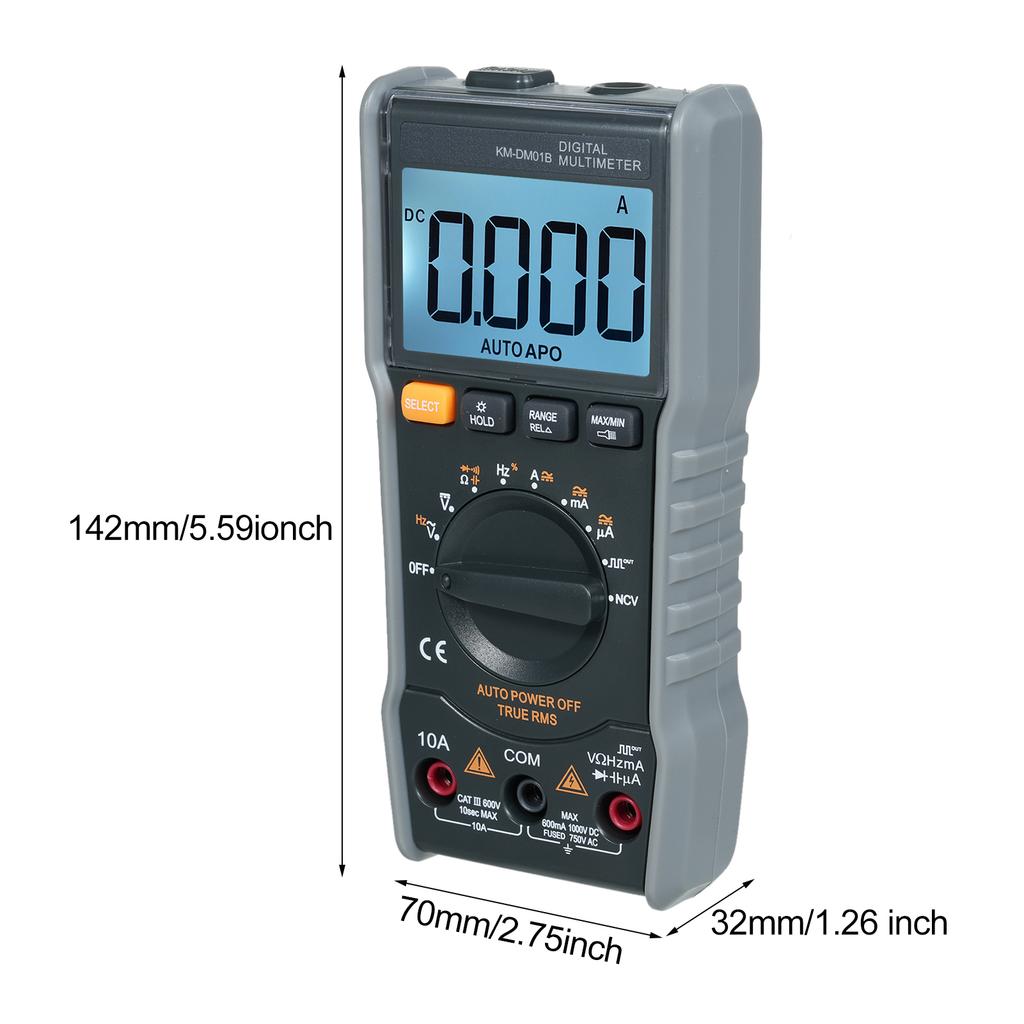

Item Size: 142 * 70 * 32 mm 5.59 * 2.75 * 1.26 inch
Item Weight: 185g 6.52oz
Package Size: 16.5 * 10 * 5 cm 6.5 * 3.94 * 1.97 inch
Package Weight: 310g 10.93oz
Package List:
1 * Digital Multimeter1 Pair * Pen2 * AAA 1.5V Battery1 * User Manual (English)
