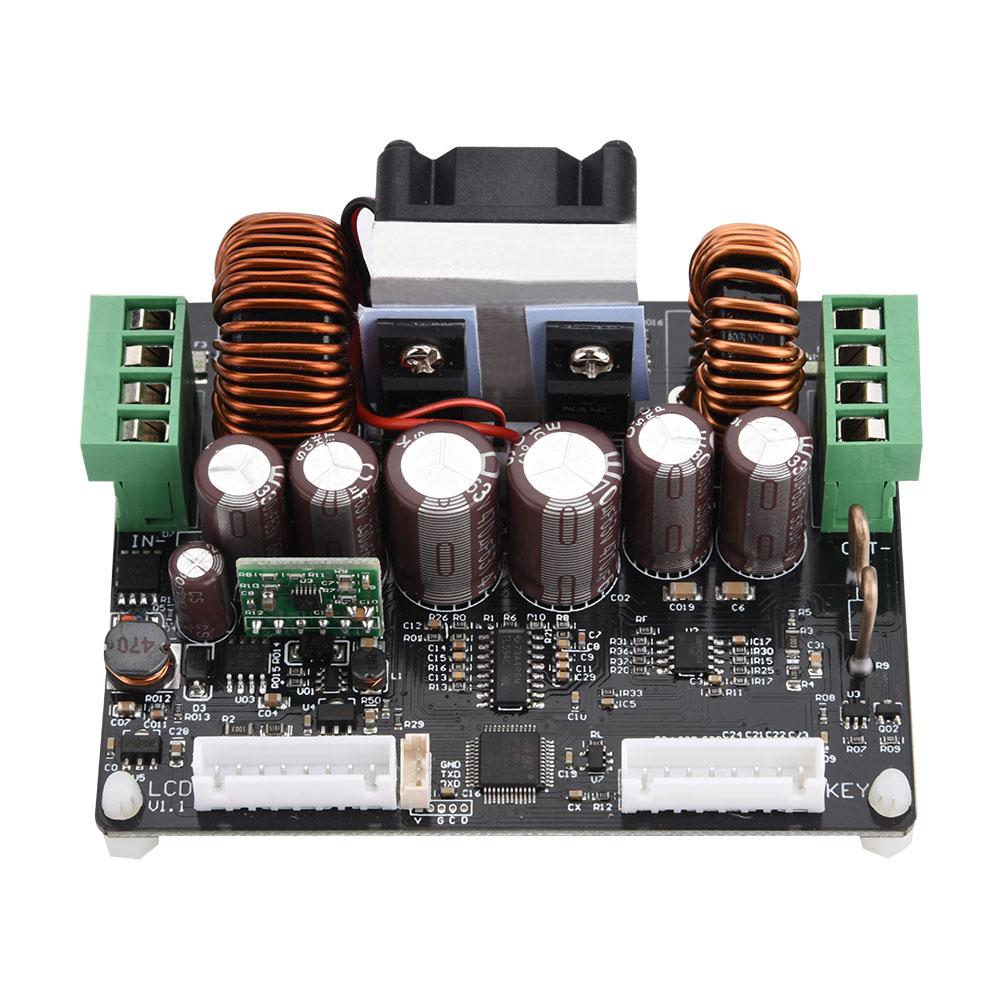

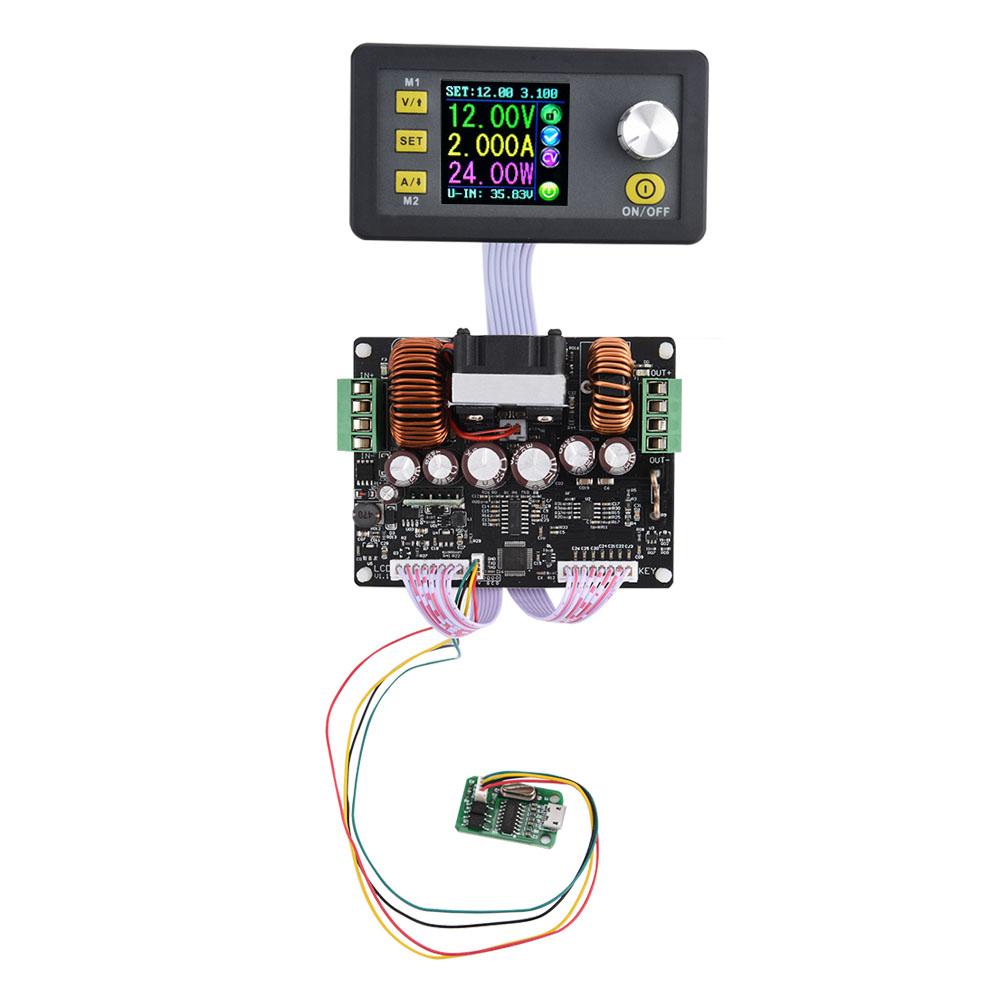

The constant voltage current programmable power supply module makes analog integration and digital control functions combined in one. With LCD display, user can view the preset voltage, input voltage, output voltage, the preset current, output current, output power, etc.
Features:

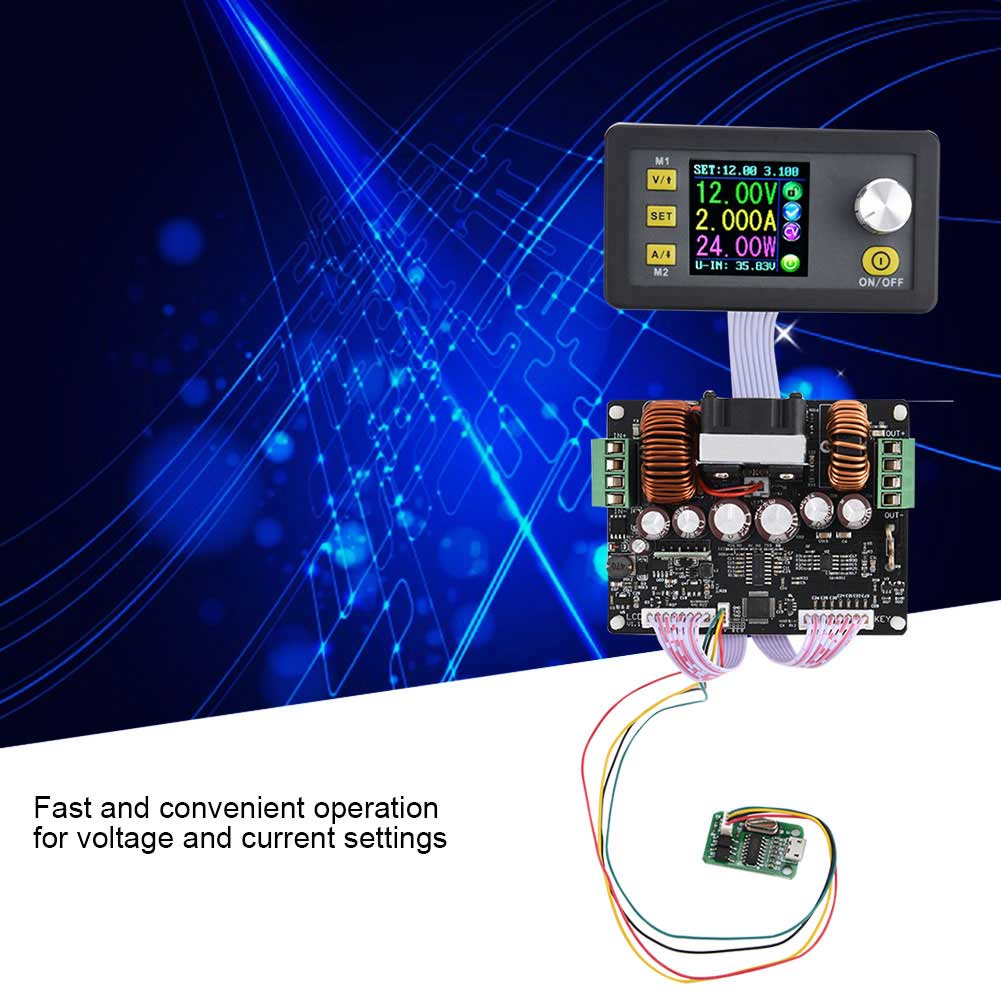

Fast and convenient operation for volt
age and current settings.

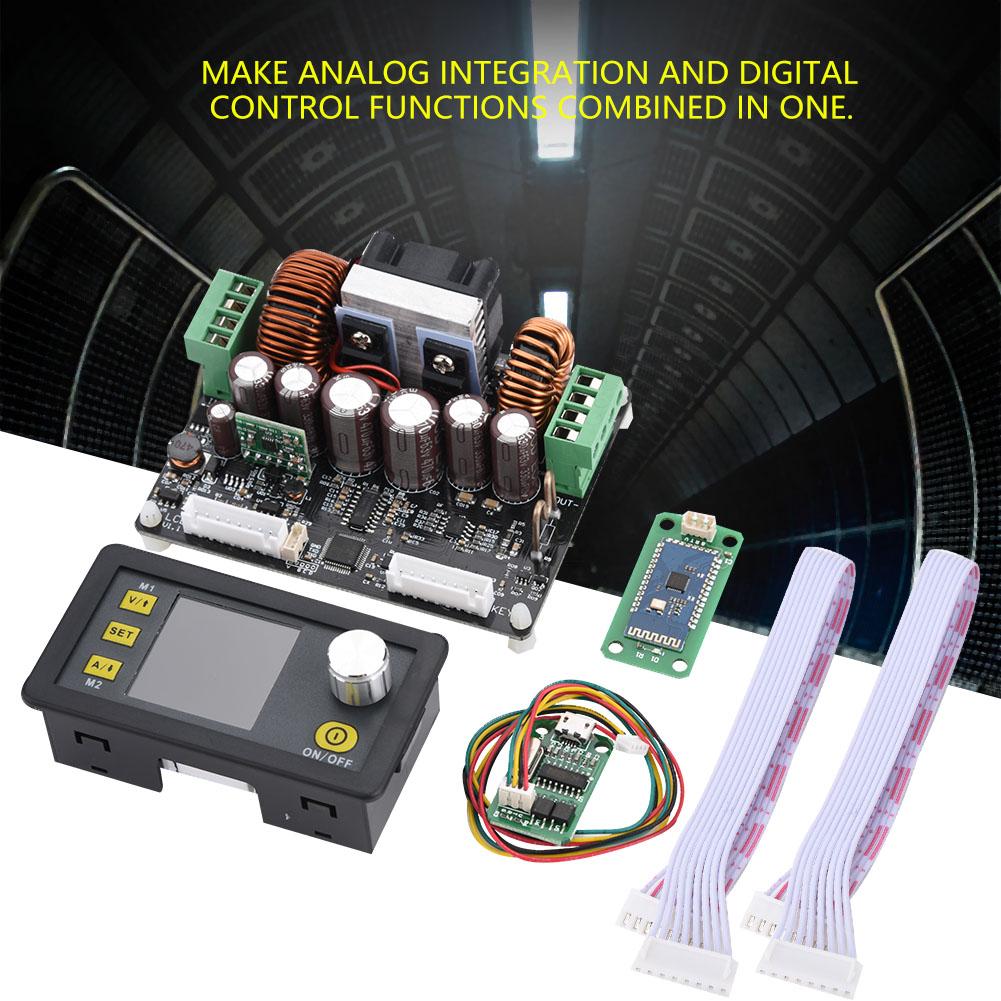

Make analog integration and digital control functions combined in one.
Can store 10 groups of preset values and quickly extract 2 groups of stored values.

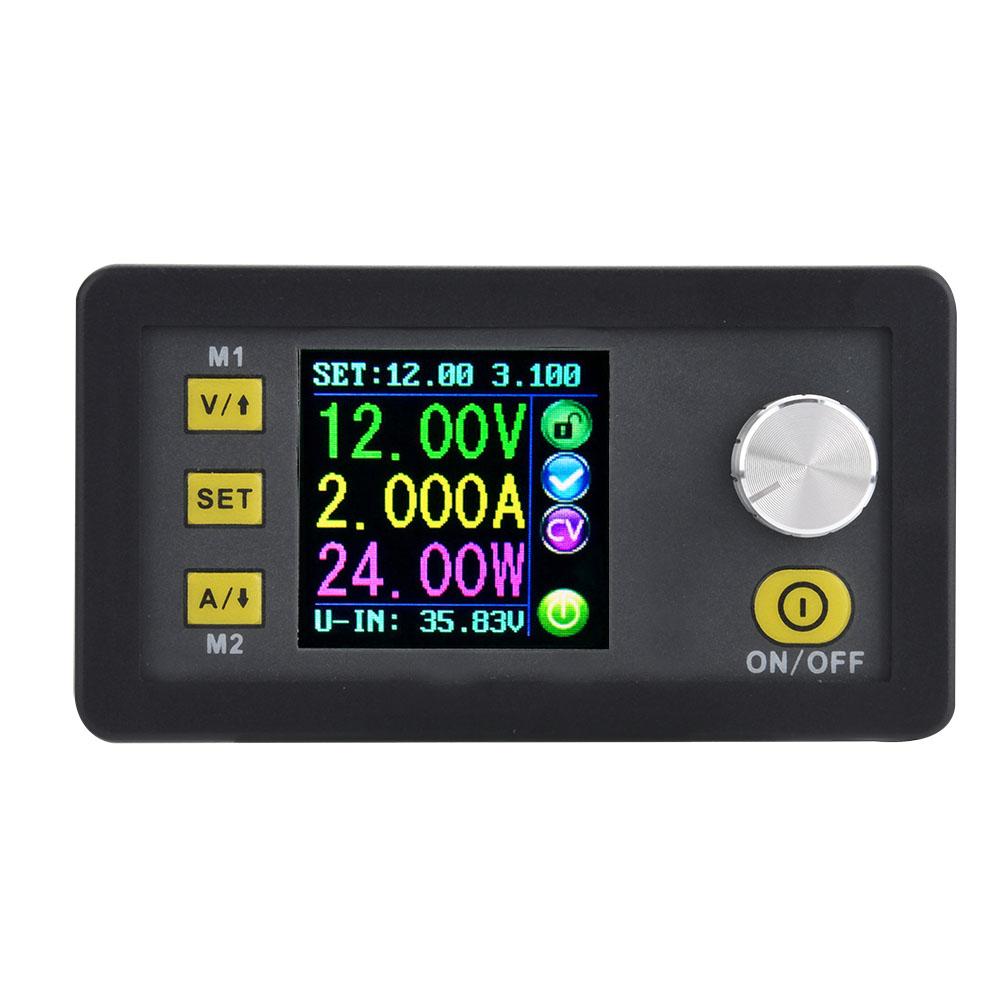

LCD display and voltmeter ammeter functions, user can view the preset voltage current, input voltage, output voltage current, output power, etc.
On the output state display area, user can see output opens or not, state of constant voltage current, output is normal or not, etc.
User can adjust over voltage, over current, over power values, data set and LCD brightness.
Advanced function, good visual effect, high operability, h
igh precision, used independently, can be inset into the device.
Specification:
Display: LCD Digital Display
Output Voltage Resolution: 0.01V
Output Voltage Accuracy: + (0.5percent + 2 digits)
Output Current Accuracy: + (0.5percent + 3 digits)
Output Ripple: Approx. 100mVpp
Connecting Wire Length: Approx. 200mm 7.9inch
Fixed Hole Center Distance: 86mm, 64mm

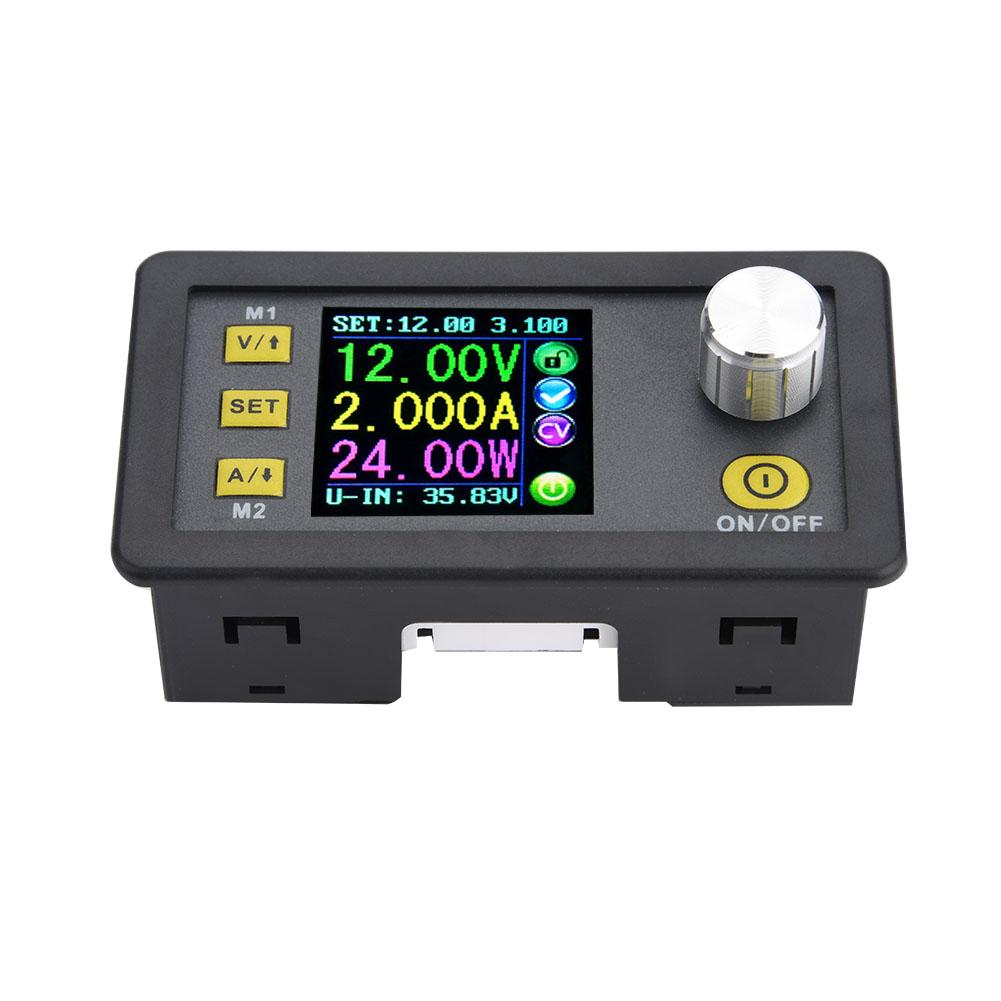

Display Module Size: Approx. 80*43*40mm 3.1*1.7*1.6inch
Display Module Opening Size: Approx. 71*39mm 2.8*1.5inch

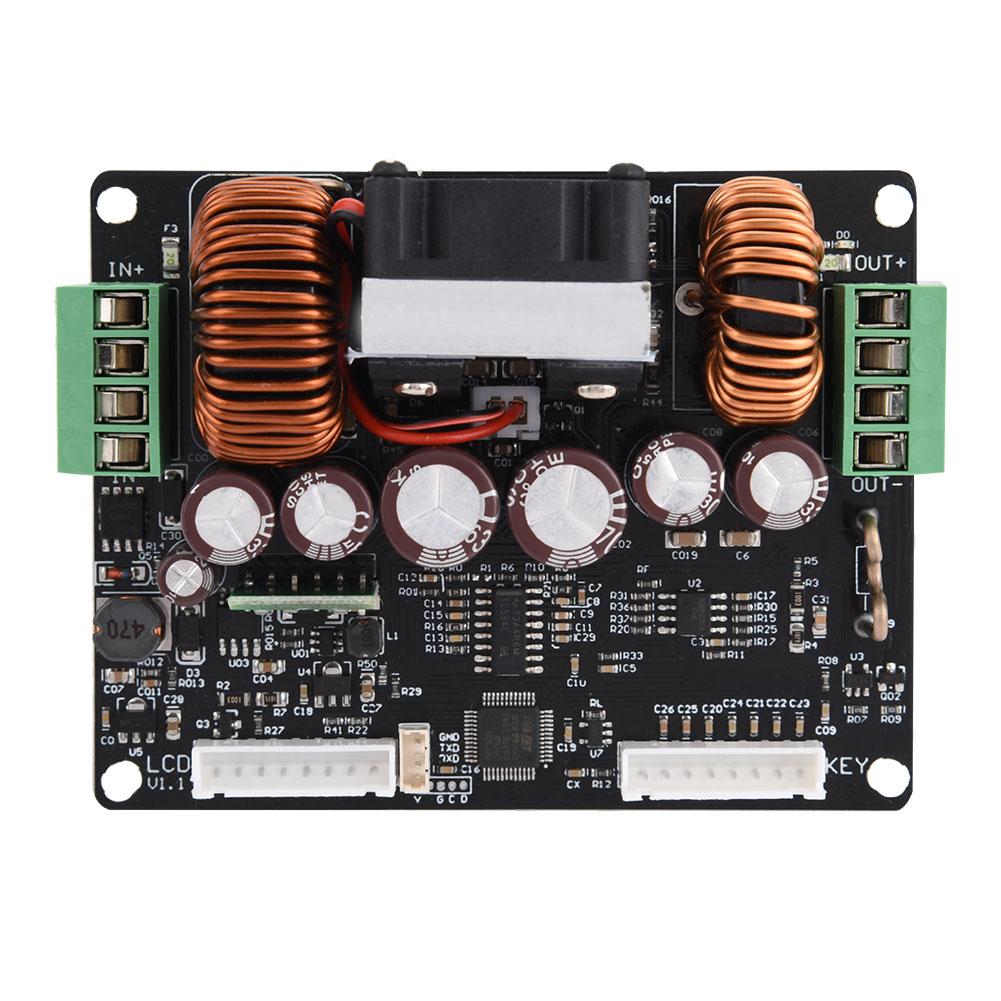

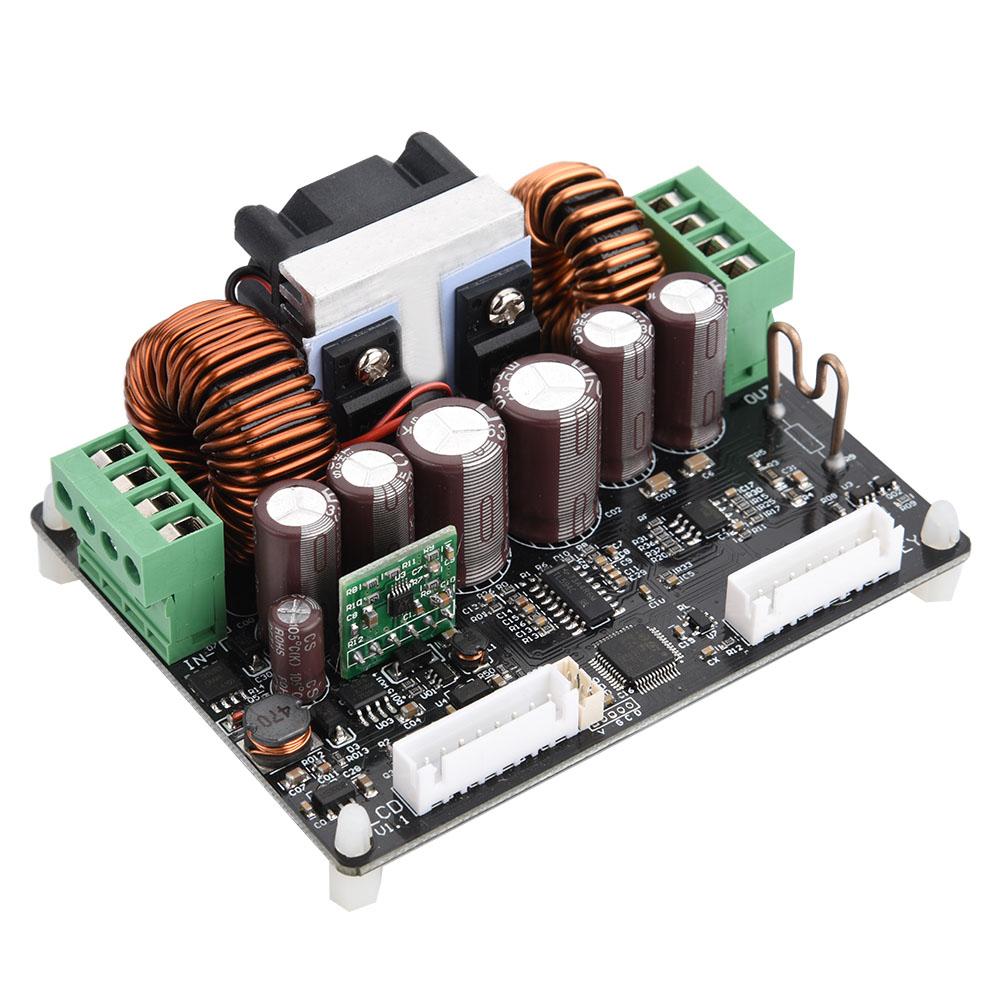

Power Module Size: Approx. 94*71*42mm 3.7*2.8*1.7inch
Package Weight: 240 294g 8.5 10.4oz
Optional Model
DPH3205
DPH5005
DPH5005 USB BT
Input
Voltage Range
DC 6 40.00V
DC 6 50.00V
Output
Voltage Range
DC 0 32.00V
DC 0 50.00V
Output
Current Range
0 5.000A
Output
Current Resolution
0.001A
Output Power
Range
0 160W
0 250W
USB Communication Function
NO
YES
Bluetooth Communication
Function
NO
YES
Max.
Allowable Input Current
10A
Full load
Output Power Supply
18 40V, Power more than 180W
28 50V, Power more than 280W
Optional Model
Packing List
DPH3205
1 * Display Module
1 * Power Module
2 * xh 8P Flat Cable
DPH5005
1 * Display Module
1 * Power Module
2 * xh 8P Flat Cable

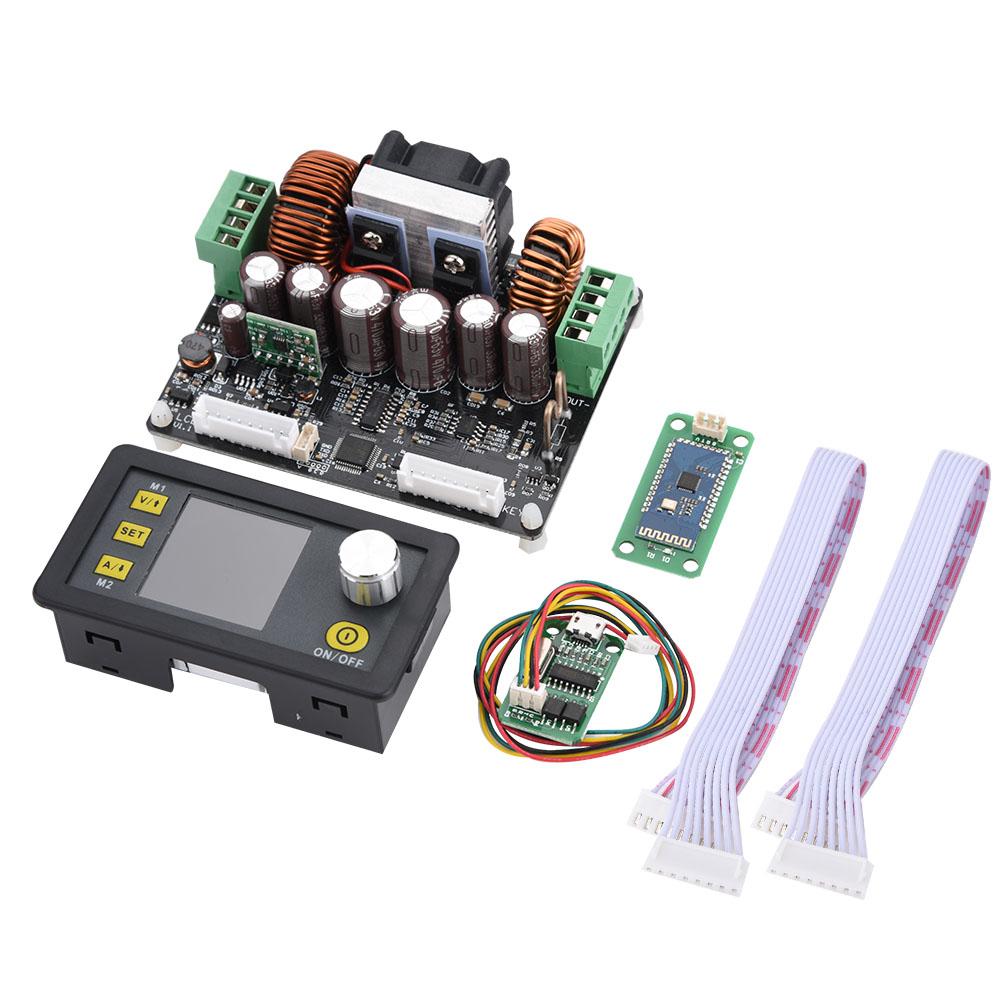

DPH5005 USB BT
1 * Display Module
1 * Power Module
2 * xh 8P Flat Cable
1 * USB Board
1 * Bluetooth Board
Note:
1. Please allow small size error due to manual measurement. Thanks for your understanding.
2. Connection between display module and power module should be according to the corresponding words. Otherwise it will not work by wrong connection.
