Description:
-Preferred material: high temperature resistance, excellent performance, enhanced hardness after heat treatment, long life, durable and practical

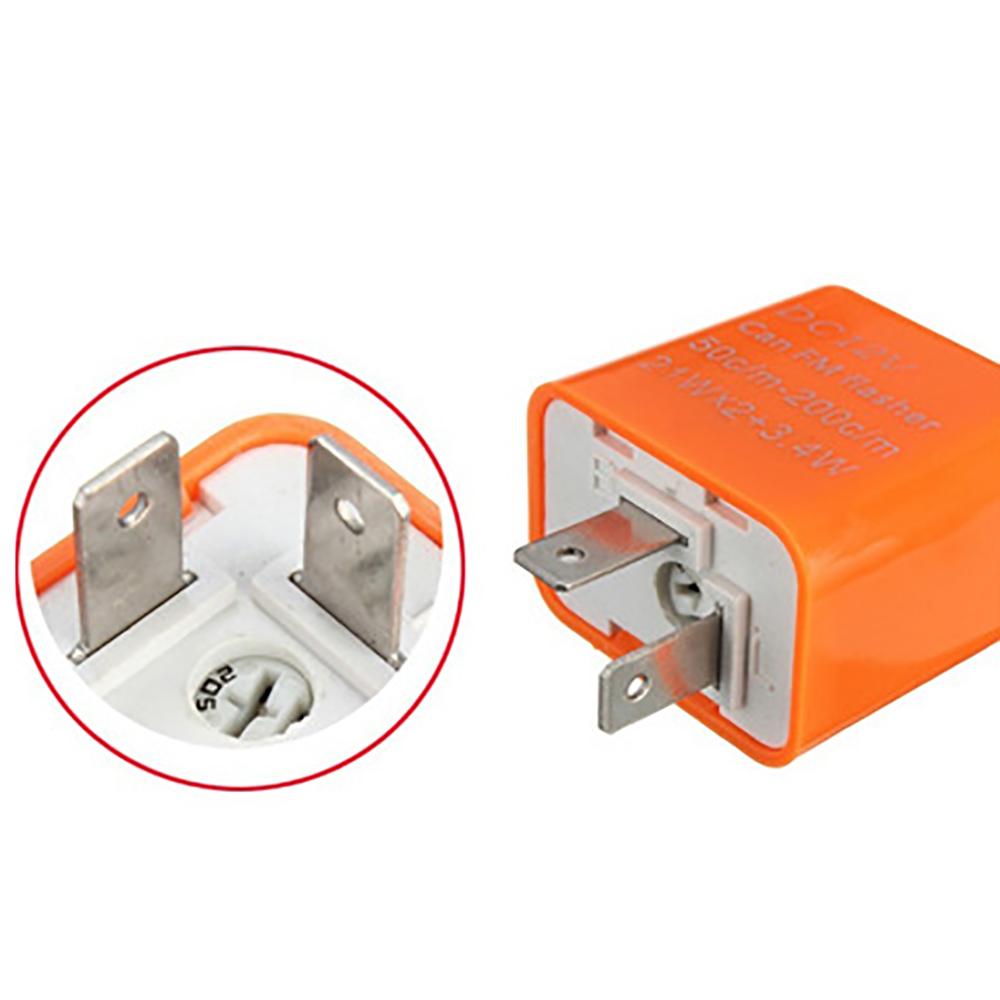

-Unique design: the cross-head hole position is used to facilitate tool adjustment, and the concave hole position design prevents the outside world from touching the adjustment column

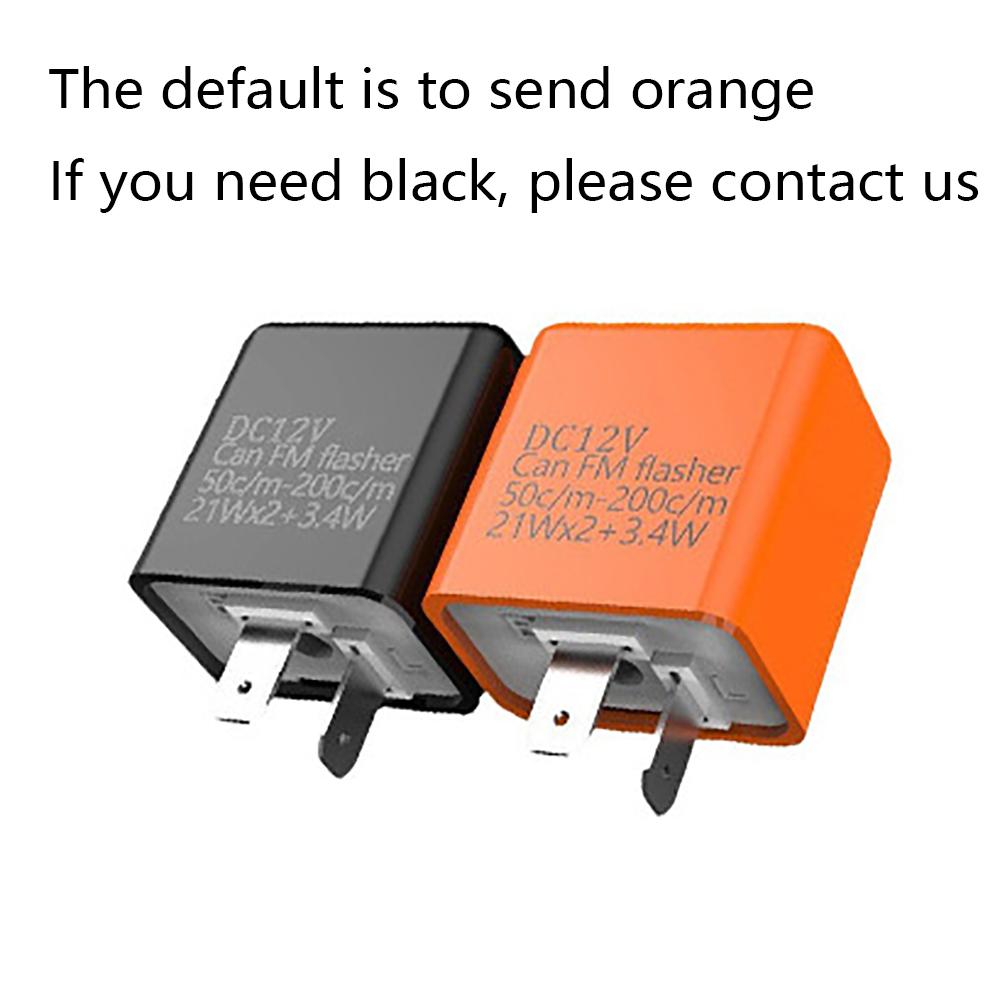

-Two colors are available: orange (black optional)

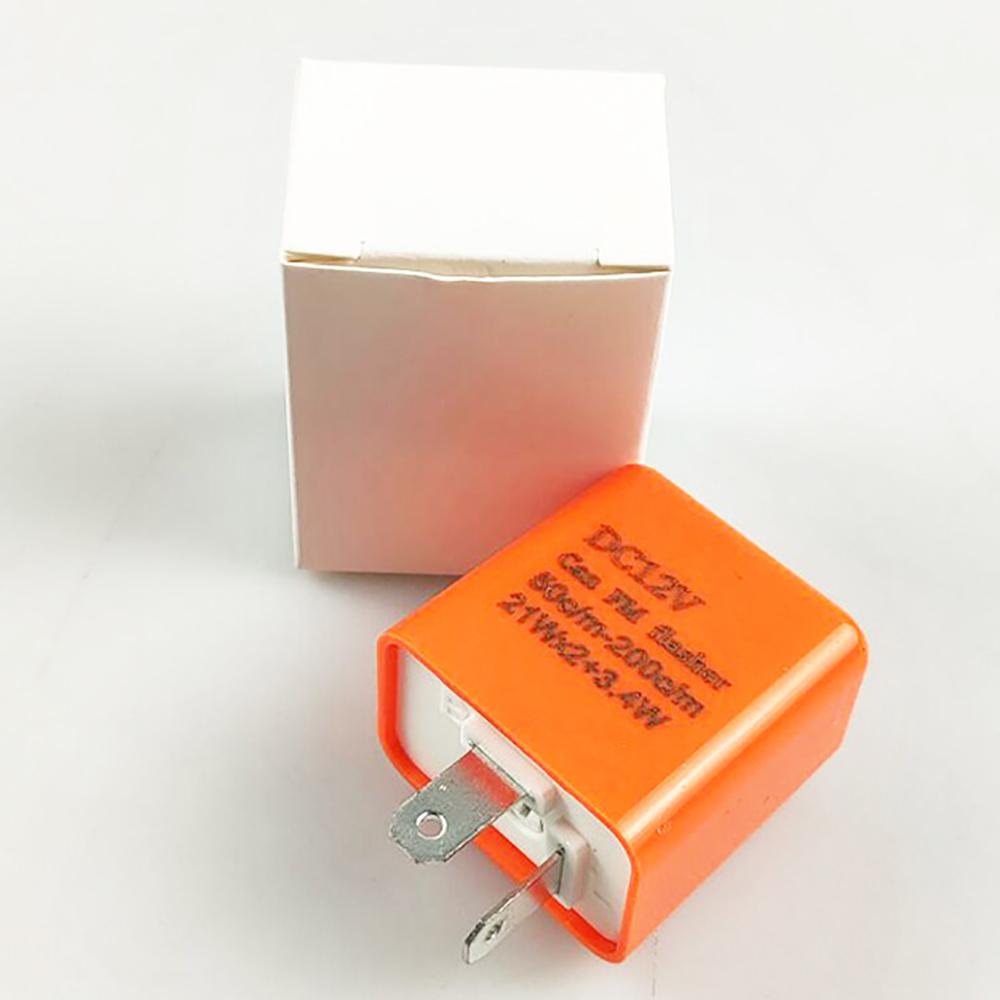

-Individually packaged: while preventing collision, the surface will not be scratched and worn

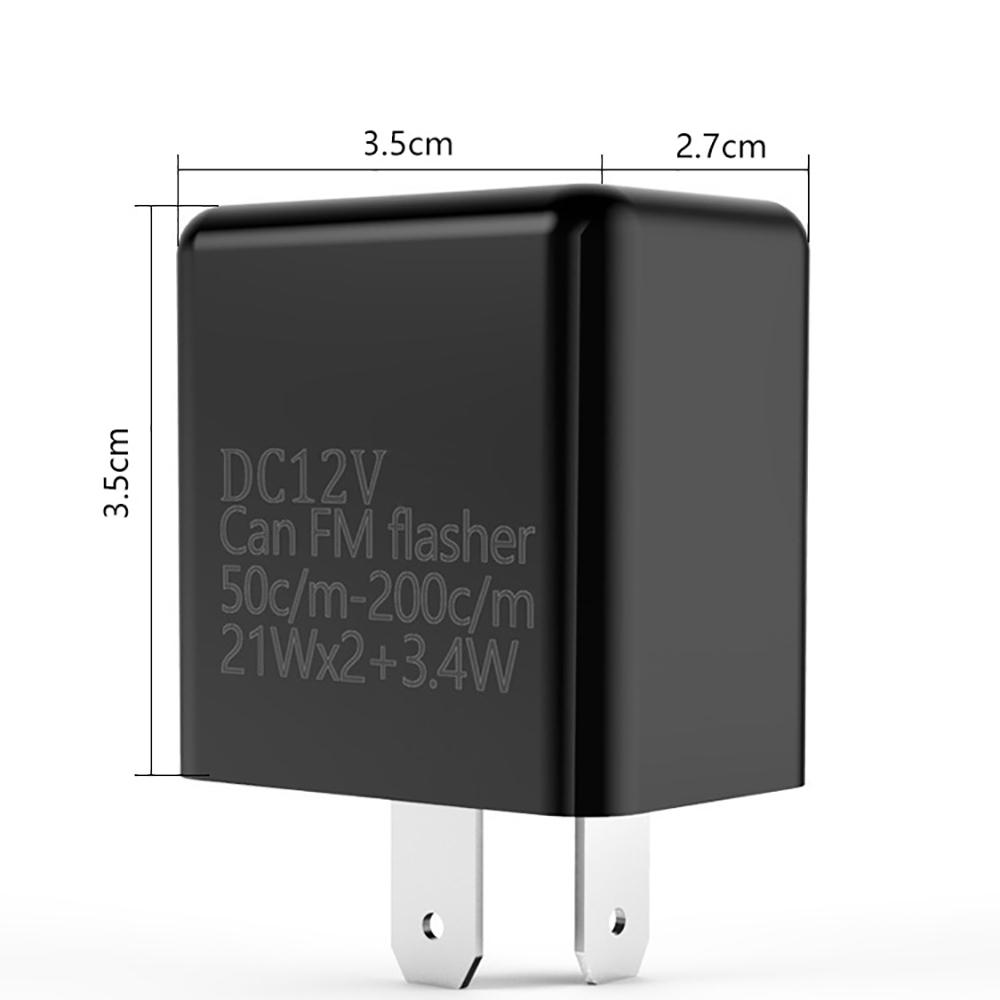

Single size: 3.7 * 5 * 2.7 white box packaging
Color:Orange
Include:2 PCS
Working voltage: Voltage DC12V, flashing frequency 50c / m-200c / m, working power 21wx2 + 3.4W
Material: plastic
Features: the flashing frequency of turn signal lamp can be adjusted, and advanced SMD patch technology is adopted. It has short-circuit automatic protection, overload automatic protection and reverse connection automatic protection, which can make the bulb work more stably. (without buzzer)
Usage: it is the third gear frequency. It turns counterclockwise faster and clockwise slower.
Installation Tips:
1. The foot position must be properly aligned during installation. If the foot is dislocated, the function of the flasher cannot be realized.
2. If the flasher is changed and the four lights are on at the same time, you need to unplug the direction indicator on the instrument panel

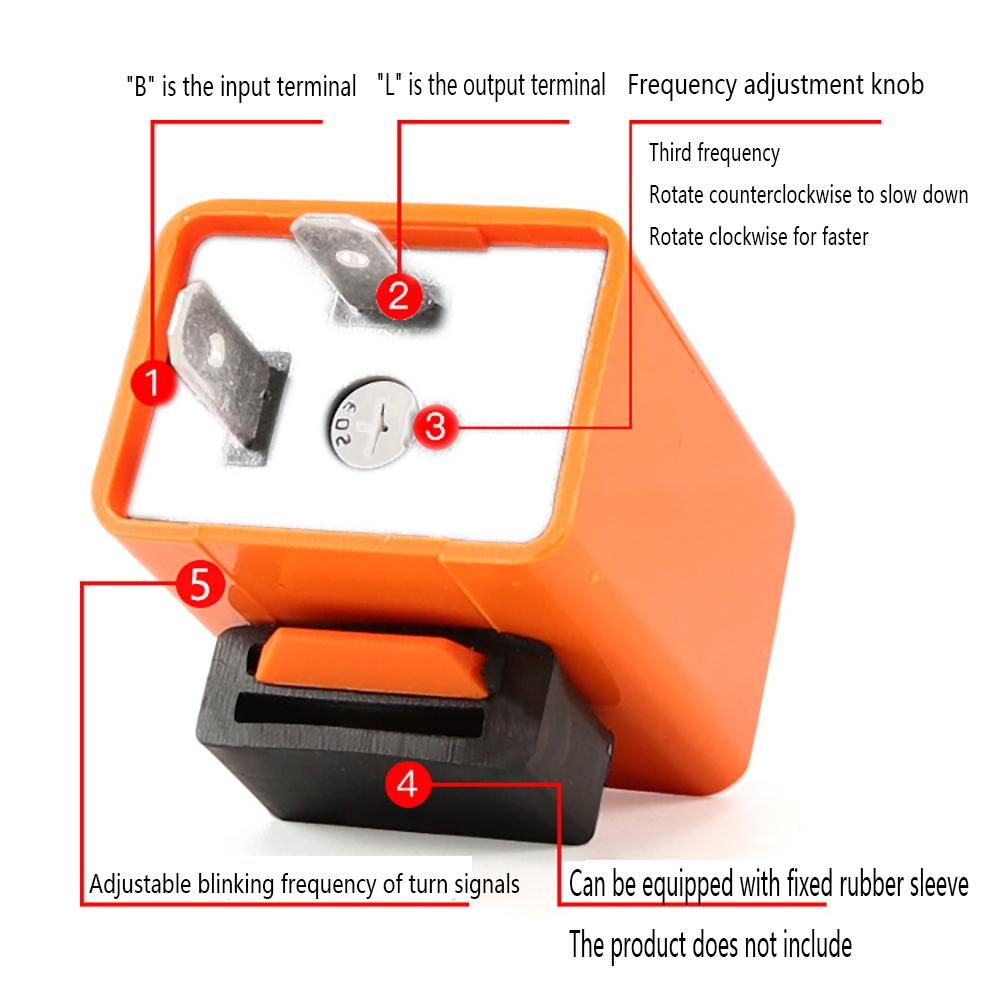

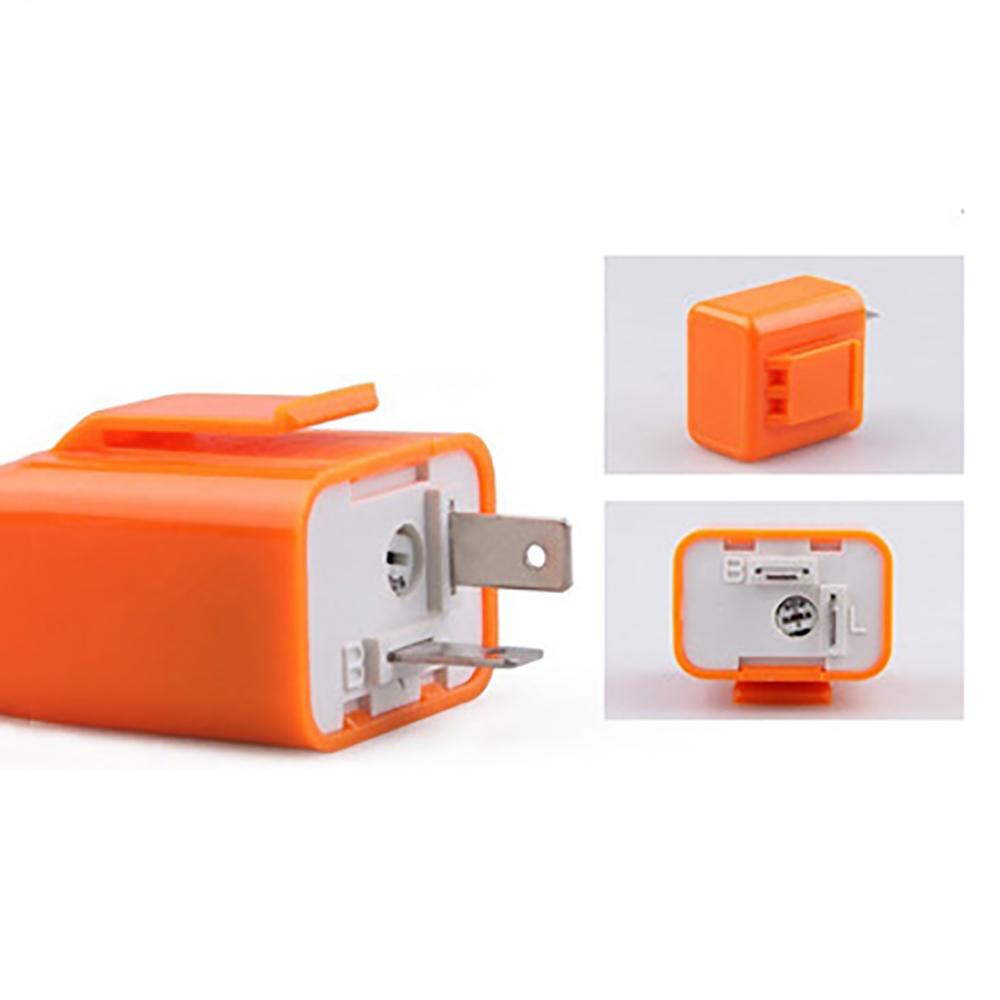

3. Pin B is the input and pin L is the output
For this YS-05 new motorcycle flasher, B is connected to the positive pole of the power supply, l is connected to the positive pole of the lamp, and the negative pole of the lamp is grounded.
Features of this flasher:
1. Adjustable frequency 50 times / min - 200 times / min
2. It can be equipped with LED lights, which are common for ordinary lights (now many riders change to LED lights, and there is a flash phenomenon, because the power of LED lights is very low, and ordinary flashers can't carry them. After using this led flasher, the LED flash phenomenon will be solved)
