Lm317 Adjustable Regulated Rectifier Filter Power Supply Board Module

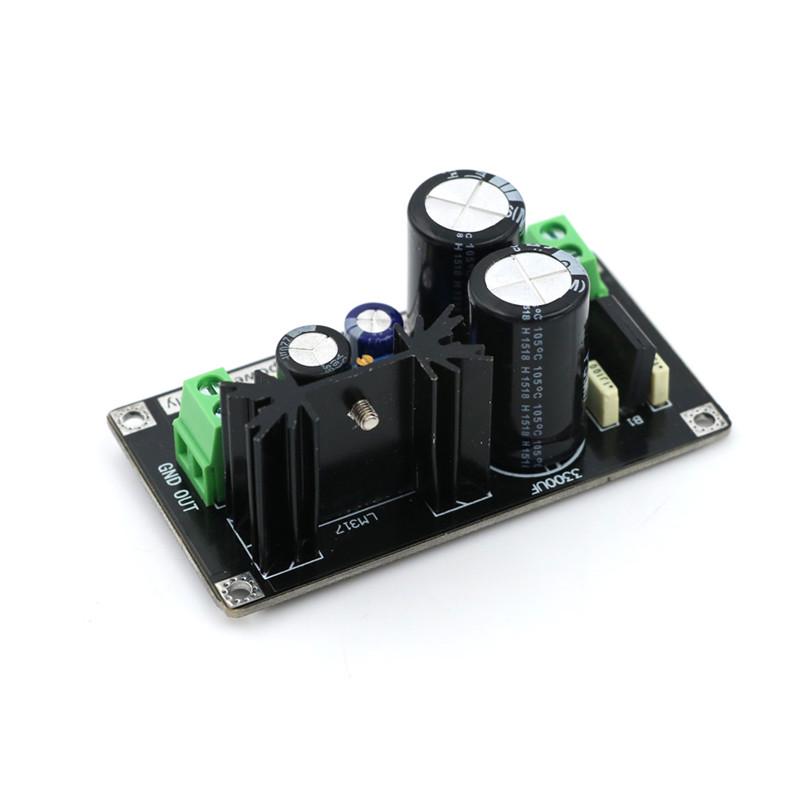

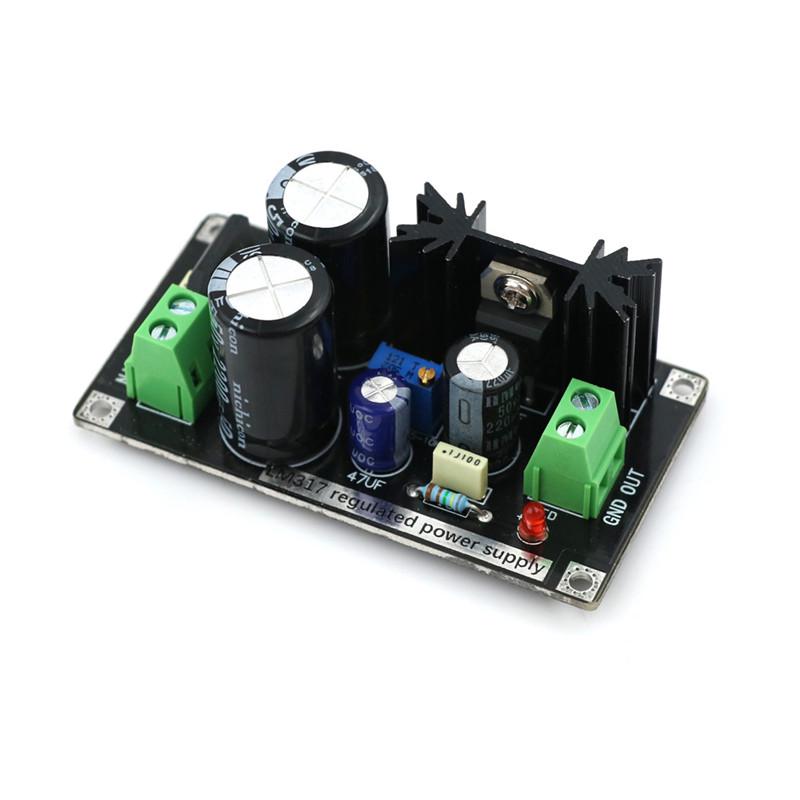

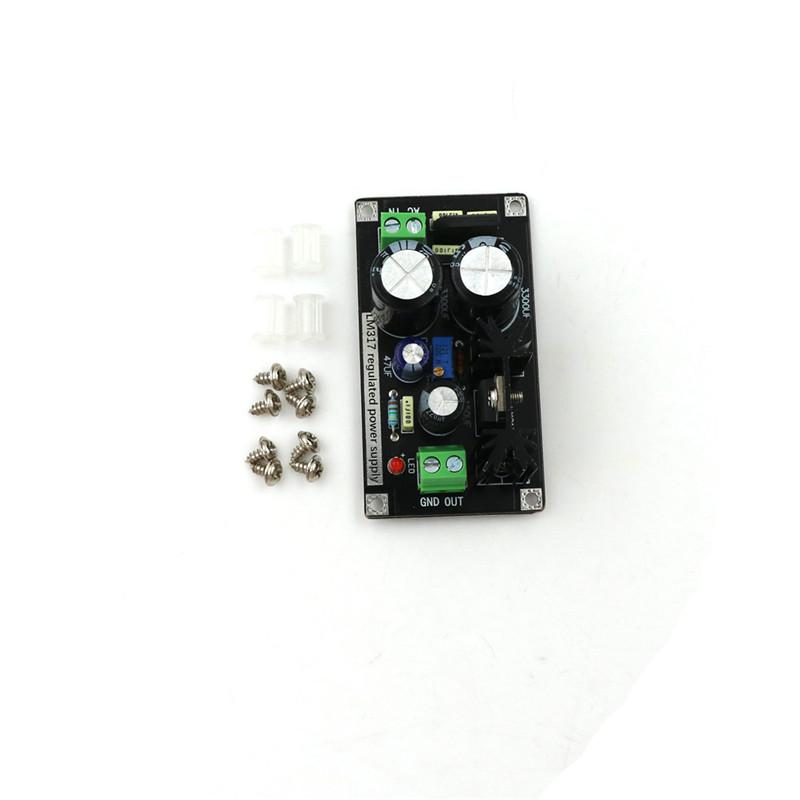

100 Brand New and High Quality.LM317 as a good regulator, with high stability, high temperature, high linearity and other characteristics, the output voltage range up to 1.25V ~ 30V continuously adjustable, the maximum operating current of more than 1A (using a large radiator or Active cooling measures). The board with a rectifier bridge, and equipped with 50V 2200uF filter capacitor, can effectively reduce the output ripple and interference.LM317 linear regulator module, the input DC voltage can be regulated output.LM317 built-in overload protection, safe area protection and other protection circuit. Normally the LM317 does not require an external capacitor, and the output capacitor can change the transient response.Voltage difference between the input and output must be more than 3V. DC Input Voltage: 5 ~ 35V;AC Input Voltage: 6 ~ 25V;DC Output Voltage: 1.25 ~ 30V adjustable.Output current range: maximum continuous operating current Less than600mA (differential pressure of not more than 10V), the pressure exceeds 10V, please ensure that the output current Less than400mA.Load regulation: 25mV;Quiescent current: 1mA;Peak output current: 1.5A;Module size: 77mm * 42mm Operating temperature range: 0 Celsius-100 Celsius (to preventover-temperature damage, can increase their own heat or use other active cooling method) Package Included:1 x LM317 Regulator Module The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
