Power Supply Module Adjustable Constant Voltage Buck Boost W/LCD Display Module
Power Supply Module Adjustable Constant Voltage Buck Boost
Color: As the pictures shown
Working Voltage: DC 5V-30V
Output Voltage: DC 0.5V-30V
Output Power: 35W
Voltage Display Accuracy: 1%
Voltage Display Resolution: 0.01V
Current Display Accuracy: 1.5%
Voltage Display Resolution: 0.001A
Conversion Efficiency: Over 88%
Working Frequency: 180KHz
Overheat Protection: 100℃
Operating Temperature Range: -20℃ ~ 100℃
Humidity Range: 0%-95%RH
Size: 79 x 43 x 38 mm
Anti-reverse Protection: Yes
Reflow Protection: Yes
Output Short-circuit Protection: Yes
Over-voltage Protection: Yes
Over-current Protection: Yes
Power Protection: Yes
Over Temperature Protection: Yes
Package Included:
1 x Power Supply Module
Application:
Ordinary Power Supply
Battery Charger
LED Drive Power Supply
Instrument Voltage Display
Test The Meter
Circuit Testing
Power Conversion
Features:
Power saving mode.
Work status indication.
Solar charging function.
High quality radiators and shields.
Support for enabling/disabling output.
The buck/boost voltage is automatically adjusted.
Adjustable constant voltage constant current output.

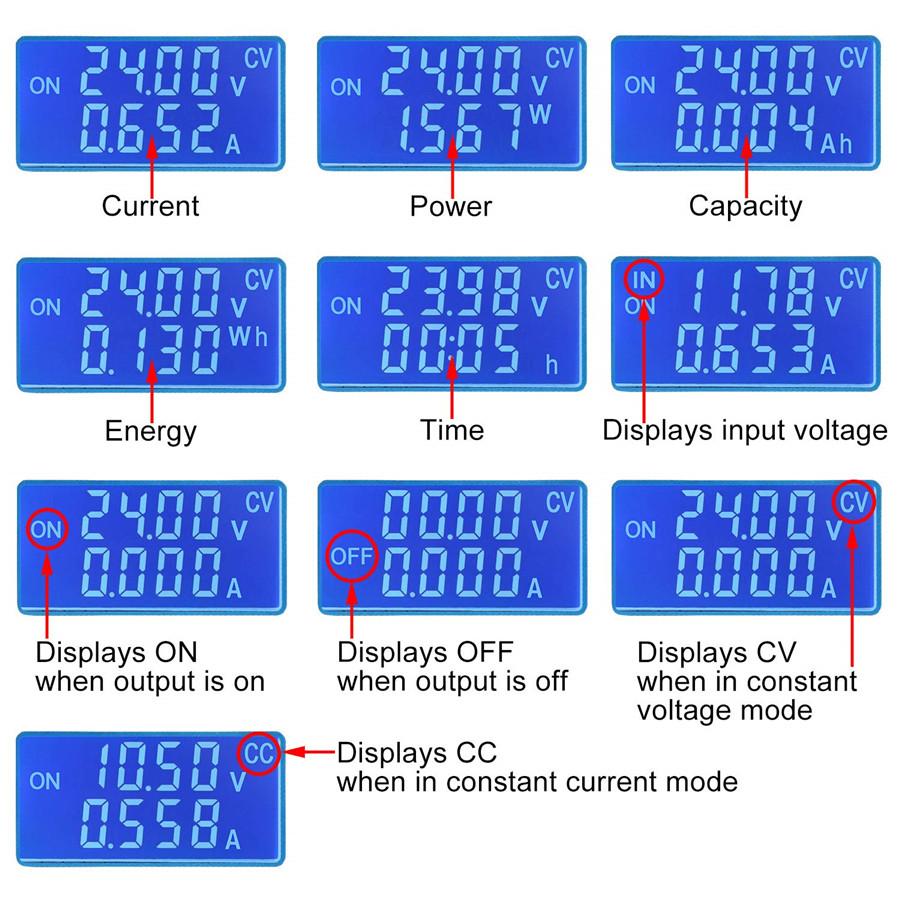

LCD high-definition display, support for multi-parameter display.
Notes:
1.Manual measuring, please allow 1 ~ 5 mm error,thank you.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.Please understand, thank you!
