Requency Test Board Demo Kit RF Demo Kit NanoVNA RF Test Module Board Filter Attenuator Module for

Name: Requency Test Board Demo Kit RF Demo Kit NanoVNA RF Test Module Board Filter Attenuator Module for
SKU: 683541fefede2d01535e6d13
Price: 412 CZK
Availability: InStock

Aktuální cena

Cena 412 Kč

včetně DPH

Barva

Jako na obrázku

Země odeslání

Spojené království
Čína

Plánované doručení 6-20 listopad

Doručení: 81 Kč

Podmínky vrácení zboží a peněz

Bezpečné platby

Online podpora v českém jazyce

Dokumenty o bezpečnosti a shodě

Popis

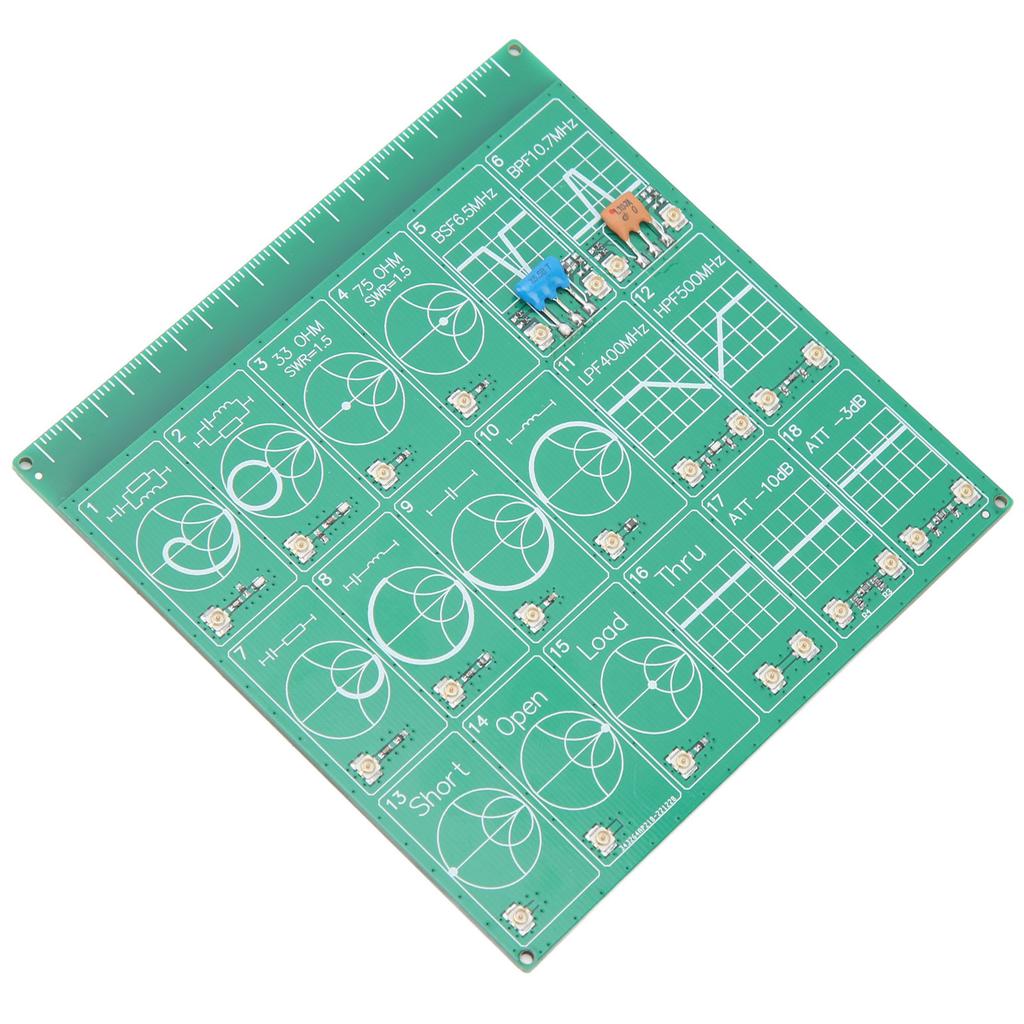

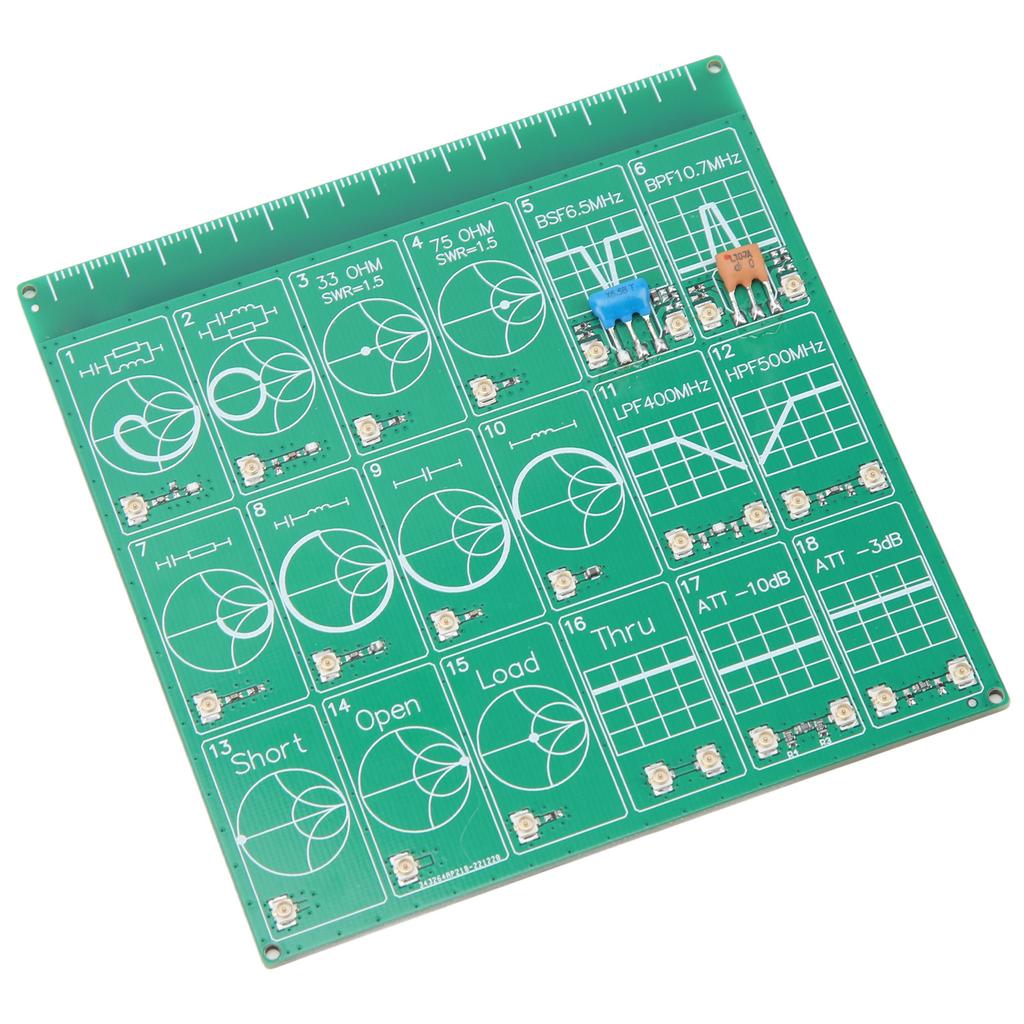

Feature: 1. Main Application: Requency test board demo kit is used for learning vector network analyzer VNA, calibration and learning. 2. Circuit Resistor And Notch Filter: RLC series parallel circuit 1. RLC series parallel circuit 2. 33 ohm resistor, SWR standing wave=1.5. 75 ohm resistor, SWR standing wave=1.5. BSF ceramic notch filter, center frequency 6.5MHz. BPF ceramic filter, center frequency 10.7MHz. 3. Circuit Capacitance Inductance Filter: RC series circuit. LC series circuit. Capacitance. Inductance. LPF self made low pass filter with a 3dB bandwidth of 400MHz. HPF self made high pass filter with a 3dB bandwidth of 500MHz 4. Calibration Circuit And Attenuation Circuit: Short circuit calibration circuit. Open circuit calibration circuit. 50 ohm load calibration circuit. Straight through. 10dB attenuation circuit. 3dB attenuation circuit. 5. Package List: Package Included 1x RF Tester Board, 2 x 20cm Adapter Cable, providing you great using experience. Specification: Item Type: RF Test Board Product Material: PCB Weight: Approx. 49g 1.7oz Adapter Cable Length: Approx. 20cm 7.9in. Package List: 1x RF Tester Board2 x Adapter Cable Main Application: Requency test board demo kit is used for learning vector network analyzer VNA, calibration and learning. Circuit Resistor And Notch Filter: RLC series parallel circuit 1. RLC series parallel circuit 2. 33 ohm resistor, SWR standing wave=1.5. 75 ohm resistor, SWR standing wave=1.5. BSF ceramic notch filter, center frequency 6.5MHz. BPF ceramic filter, center Circuit Capacitance Inductance Filter: RC series circuit. LC series circuit. Capacitance. Inductance. LPF self made low pass filter with a 3dB bandwidth of 400MHz. HPF self made high pass filter with a 3dB bandwidth of 500MHz Calibration Circuit And Attenuation Circuit: Short circuit calibration circuit. Open circuit calibration circuit. 50 ohm load calibration circuit. Straight through. 10dB attenuation circuit. 3dB attenuation circuit. Package List: Package Included 1x RF Tester Board, 2 x 20cm Adapter Cable, providing you great using experience.
