Label:Yes
Special reminder:
Net weight: 30g
Note that this is not a power module, and the motor must be connected to adjust the speed. If the motor is not connected, the output of the multimeter remains unchanged.
The motor can be connected without distinguishing between positive and negative. When the running direction is not consistent with the expected direction, the direction can be changed by adjusting the wire sequence.
With switch function and forward and reverse rotation function
Size Description
2. Not suitable for speed regulation of DC brushless motors; It cannot be used as a Pressure regulator or voltage stabilizer
Please note:

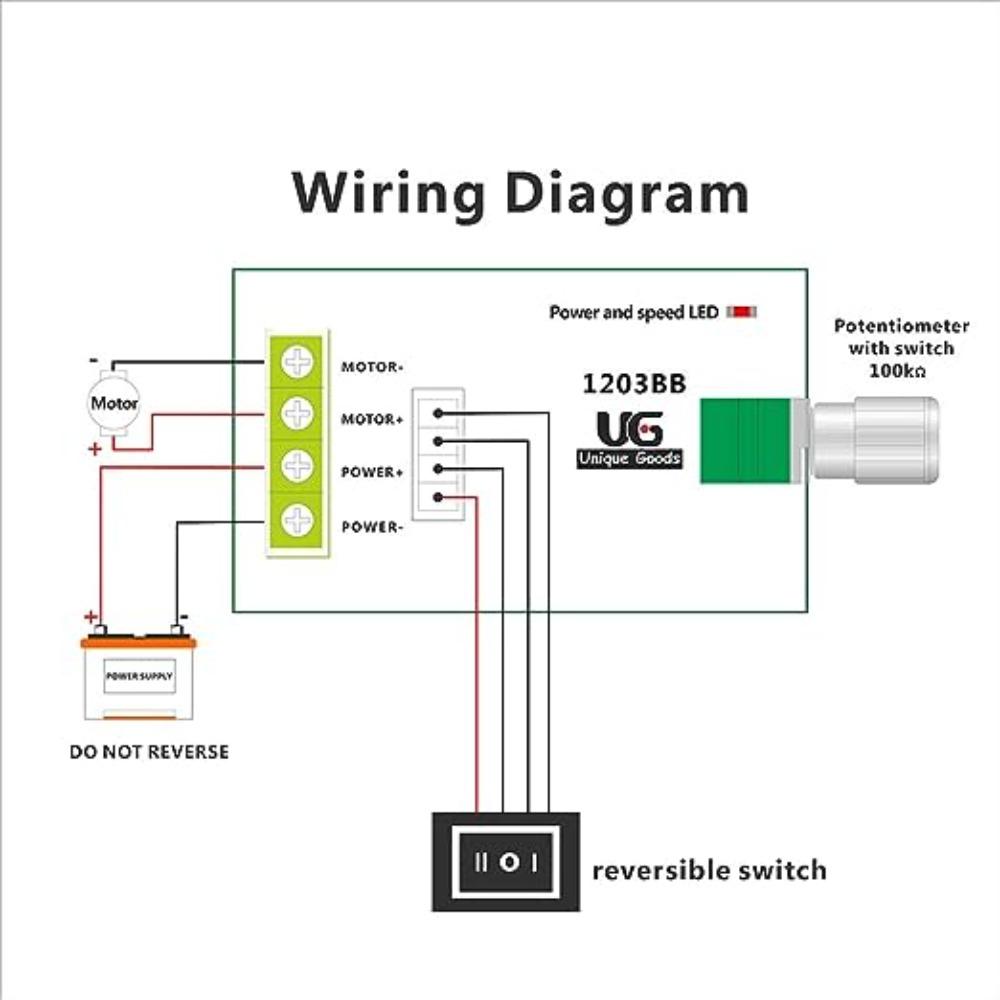

The DC motor governor is connected to a DC power supply,
Never directly connect to household 220V AC power,
1. This governor is used for DC brushless motors.
Within the voltage range of DC6-28V input, the applicable current is within 3A
Size: length, width, 50mm * 32mm, height, approximately 15mm
Package Including:

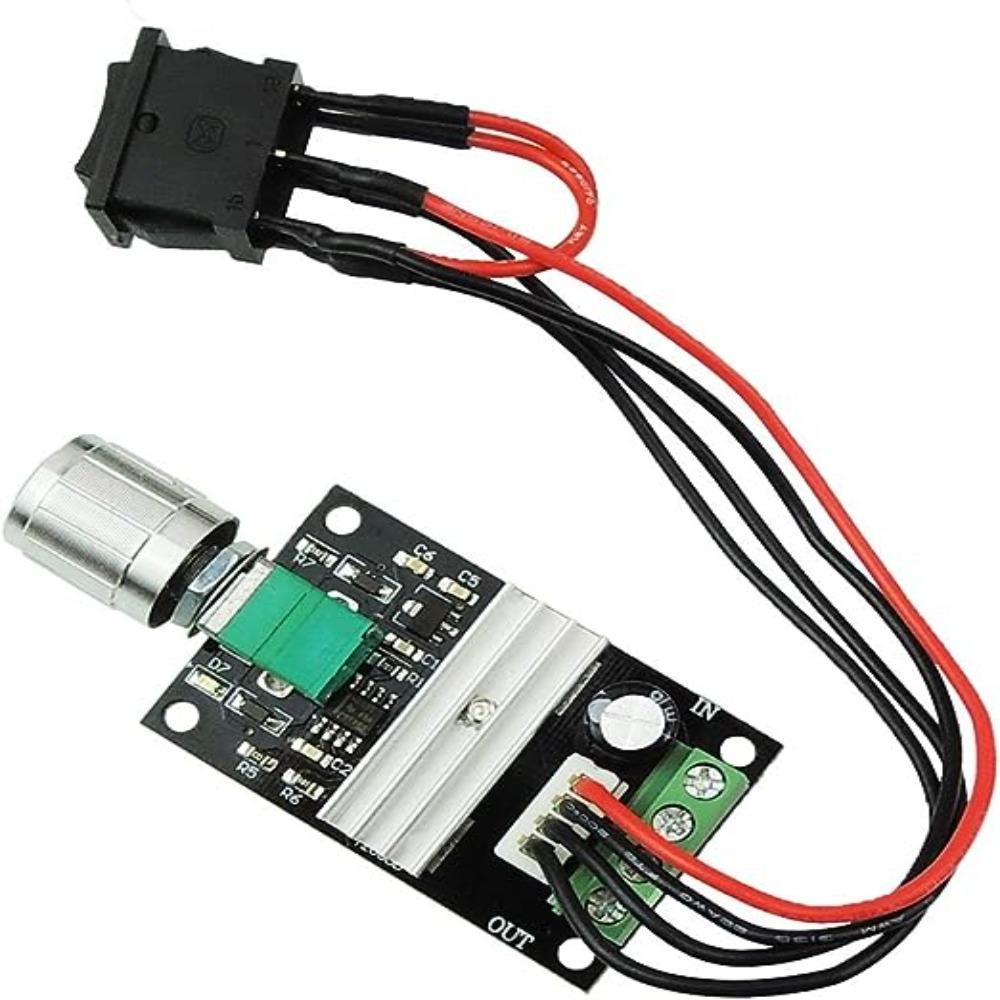

1 x DC Motor Speed Controller
Wide voltage range: This DC motor speed controller is suitable for input voltages ranging from DC6-28V, providing flexibility and compatibility with various power sources.
High current capability: With an applicable current within 3A, this speed regulator can handle high-power motors up to 80W, ensuring efficient and reliable motor control.
Switch function and forward/reverse rotation: The built-in switch function allows for easy control of motor operation, while the forward and reverse rotation function provides versatility in motor direction.
Compact size and lightweight design: Measuring only 50mm x 32mm x 15mm and weighing just 30g, this motor speed controller is compact and lightweight, making it easy to install and integrate into various applications.
Easy motor direction adjustment: The motor can be connected without distinguishing between positive and negative, and the running direction can be easily changed by adjusting the wire sequence, providing convenience and flexibility in motor direction control.
