The wireless access fixed station is a wireless fixed voice and data access device adopting the GSM technology standard, and can quickly provide fixed wireless telephone communication services and data services by using the GSM network within the coverage of the GSM cellular network. It is suitable for fixed telephones that are not easy to be wired. It can directly replace fixed telephones and replace Internet data services. The product design is standard and open. Discover new business application areas for GSM network operators. This device provides a standard DTMF counterattack signal, which can accurately identify the call on, and provide counter signal billing for PBX switches, voice boards, and call centers. You can also pick up telephone landlines, alarms, recording boxes, and more.
Features:
1. LCD display, signal value display, call status display, etc.
2. The card slot is newly upgraded, which is convenient for viewing the contact between the card and the chip. It is also beneficial to some customers who use Cato.
3. With automatic step down circuit, you can directly use the 12V power supply of the security alarm system.
5. Adopt anti noise circuit design, anti noise and anti interference

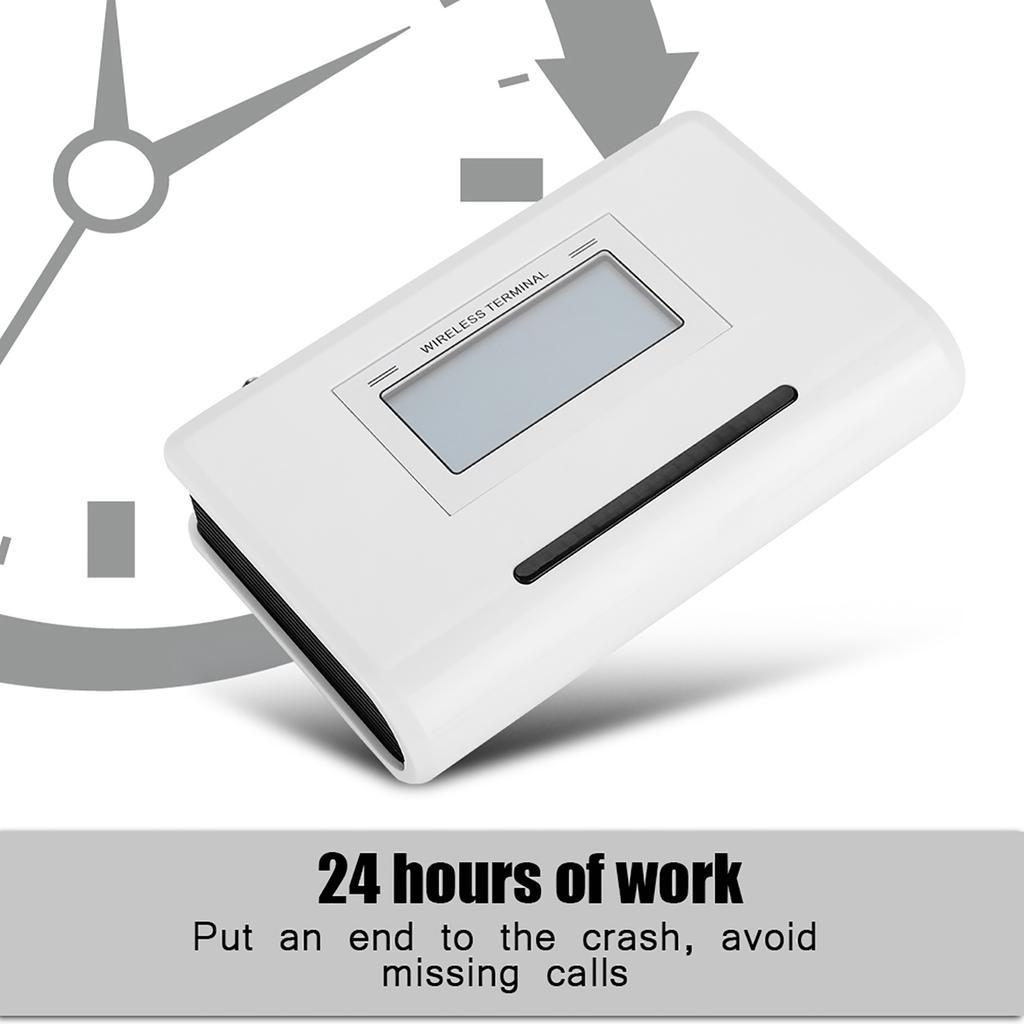

6. 24 hours of work, built in watchdog automatic detection, all round to avoid the occurrence of crashes, to prevent the crash, to avoid missed calls.
7. Adopt industrial wireless communication module, cooperate with high quality signal to enhance the antenna, the signal is relatively strong, and the call quality is clear and stable.
Typical application:
1. Establish a wireless
public telephone system in the city, set up a fixed telephone booth, and carry out a public telephone service.
2. In public transportation, such as trains, buses, taxis, cruise ships and other transportation areas to carry out public business, to solve the travel needs of travelers.
3. It can be used together with the IC card wireless access fixed station Intelligent network wireless access fixed station, coin operated telephone, etc., to form an unattended public telephone system.
4. It is used as an emergency communication telephone next to the expressway to quickly report traffic accidents and quickly deal with traffic accidents.
5. It is used to solve the temporary communication needs of the public in rural areas, mountainous areas, islands, etc., where communication lines are difficult, temporary places, remote areas where wired telephones are not available, or uneconomical places.
6. As an emergency communication means in flood control command, mountain fire prevention, etc., quickly report the disaster situation and minimize the disaster situation.
Specification:
Color: White
Working mode: GSM 900 1800MHz, can use 2G 3G 4G card, can connect multiple communication products
Peak power: 0.25W 0.5W
Power consumption: static less than 25mA, emission less than 300mA
Sensitivity: 104 dB
Ambient temperature: 10 degrees C +40 degrees C
Operating humidity: 45percent to 90percent (without condensation)
Atmospheric pressure: 86 106 Pka
Ambient noise: <60 dB
Antenna connection: SMA antenna connector
Skyline: glue stick antenna
Antenna length: 280cm 110.2in
Antenna height: 20cm 7.9in
Telephone line length: 145cm 57.1in
Host size: 16 * 10 * 3.5cm 6.3 * 3.9 * 1.4in
Weight: approx. 431g

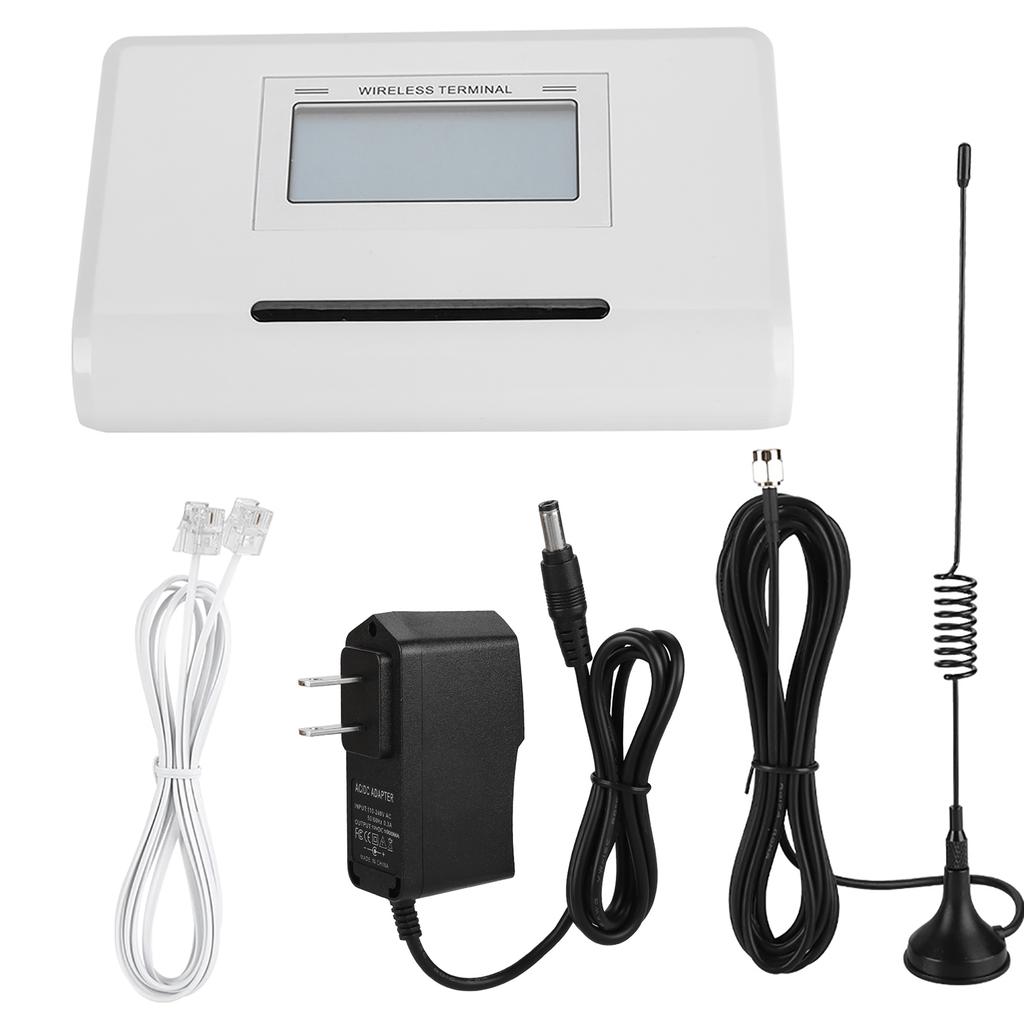

Package list:
1 * Box
Host
1 * Telephone Line
1 * Power Cord
1 * Antenna
1 * English Manual
.
