3.Adjustable Sensitivity: The sensitivity can be adjusted through the digital potentiometer to meet different fire detection needs.
2.60-Degree Detection Angle:Featuring a 60-degree detection angle, the module is tuned to be responsive to the flame spectrum, aiding in the identification of various fire types.
4.Compact & Easy to Install:With compact dimensions of 50x26mm(1.97x1.02in) and a thickness of 19mm(0.75in), the module includes mounting holes for straightforward and secure installation.
5.Versatile Applications:Suitable for fire detection in a variety of settings, including homes, offices, and industrial facilities.
1.760-1100nm Wavelength Detection:This flame sensor module can detect flames or light sources with wavelengths ranging from 760 to 1100nm. The flame test distance for lighter is 80cm(31.50in), the larger the flame, the farther the test distance should be.
Specifications:

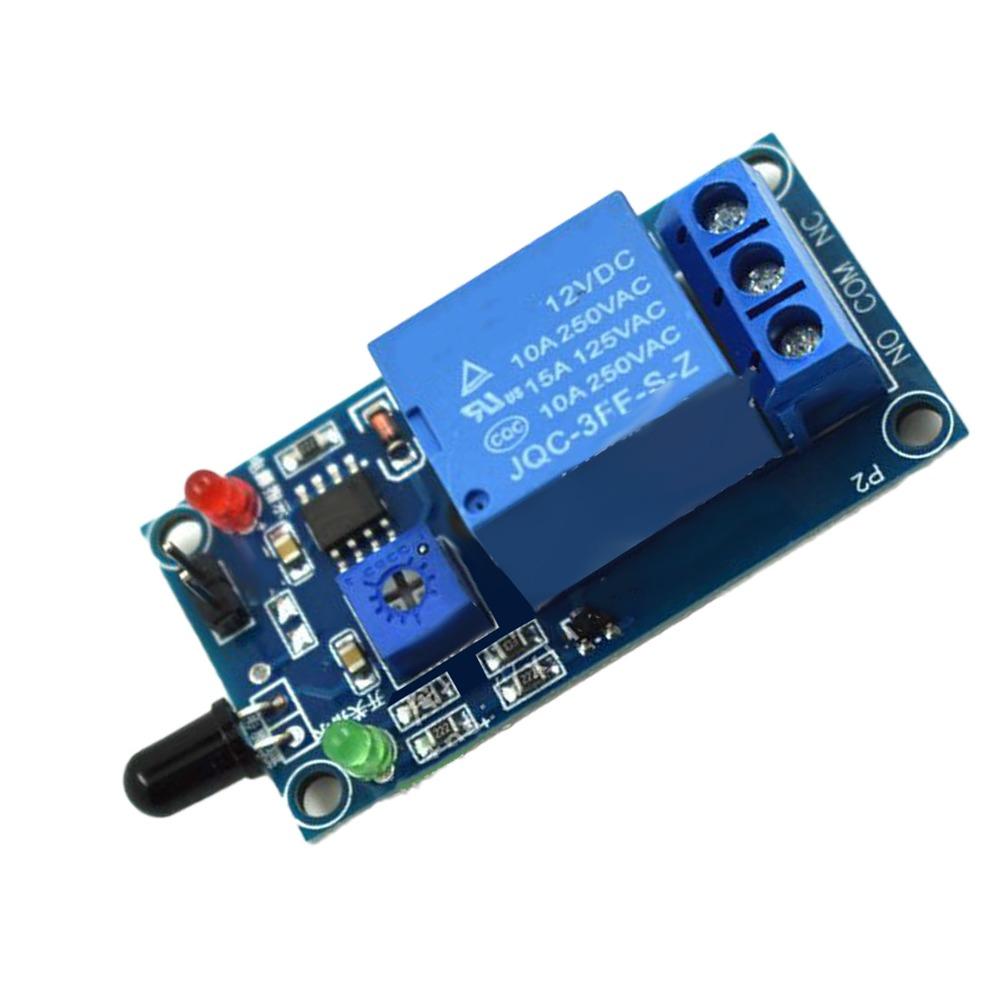

Item Type: IR Flame Sensor Module
Material: PVC
Power Supply Voltage: 12VDC
Current: >150mA
Load: 250V 10A AC or 30V 10A DC
Color: Blue
Size: Approx. 50*26*19mm(1.97*1.02*0.75in)
Application: Various flames, fire source detection, relay output, can be connected to 220V high current equipment and electrical appliances
Package List:
1 x IR Fire Sensor Module
Note:
1.The flame sensor is most sensitive to flames and also responds to sunlight, which is generally used for flame alarm and other purposes.
2.By adjusting the potentiometer, the flame intensity that the sensor can detect can be set. When the flame intensity exceeds the set threshold, the relay pulls in, and the common terminal is connected to the normally open terminal; when the flame intensity is lower than the set threshold, the relay disconnects, and the common terminal is connected to the normally closed terminal.

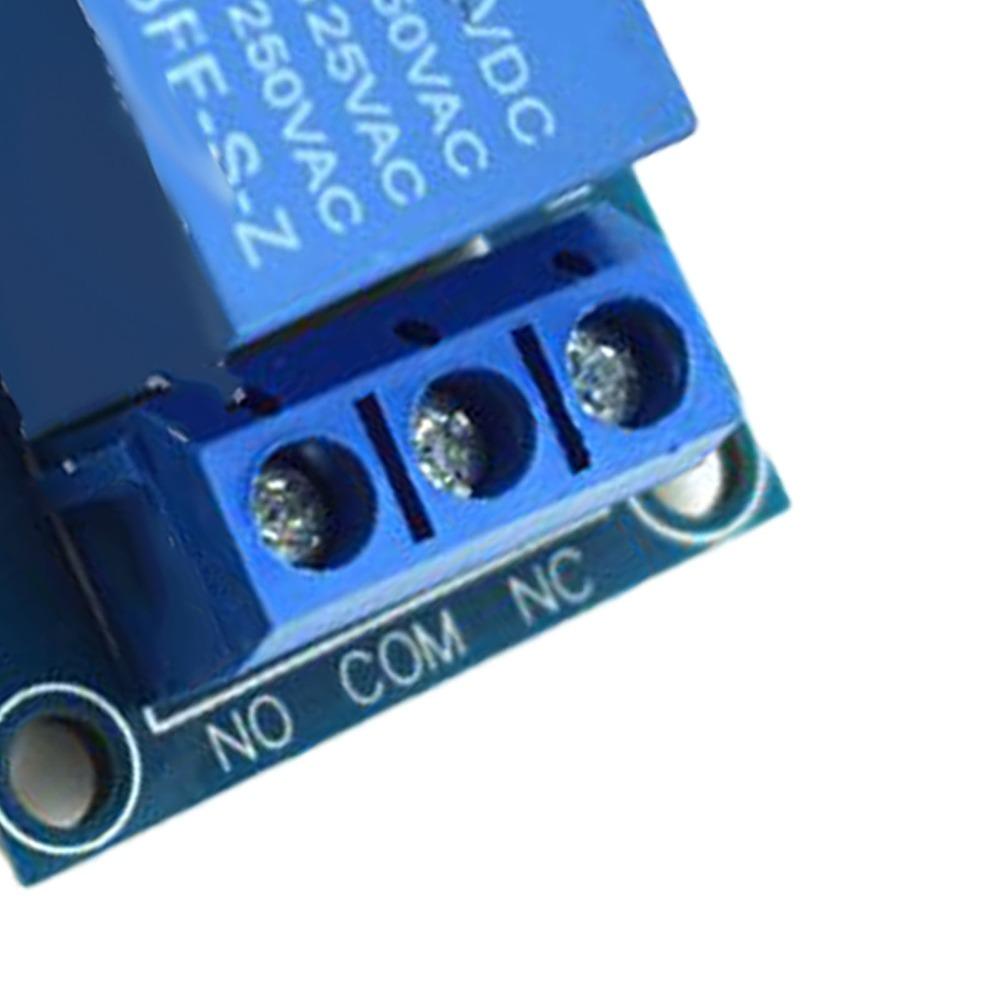

3.The three terminals (common terminal, normally open terminal, and normally closed terminal) are equivalent to a two-way switch. When the relay coil is energized, the common terminal is connected to the normally open terminal; when there is no electricity, the common terminal is connected to the normally closed terminal.
4.A certain distance must be maintained between the sensor and the flame to avoid the sensor from being damaged by high temperature. The test distance for a lighter flame is 80 cm(31.50 in), and the larger the flame, the longer the test distance.
