Features:
The
frequency converter interface (AVI+, AVI) is isolated from the
computer and the main control circuit, Strong antiinterference ability
Support for Windows XP, WIN7, WIN8, WIN10, support for 64bit systems,
support for laptops, support for tablets.
The external wide voltage input, 1224V, and antireverse function.
Can be accessed by
emergency stop, the knife, limit, back to zero, etc., to ensure computer
security.
All the way through the optocoupler isolated 010V analog voltage output, you
can control the input voltage from 010V analog voltage converter to control the
spindle speed
To provide PWM output (5V level), can be controlled by the PWM spindle
control.
Provide 4 output port
(5V level), can be connected with the relay module
optocoupler, water control, spray and so on.
Can be accessed by a total of yang or common cathode, the input level of 5V,
with optocoupler input stepper motor driver.

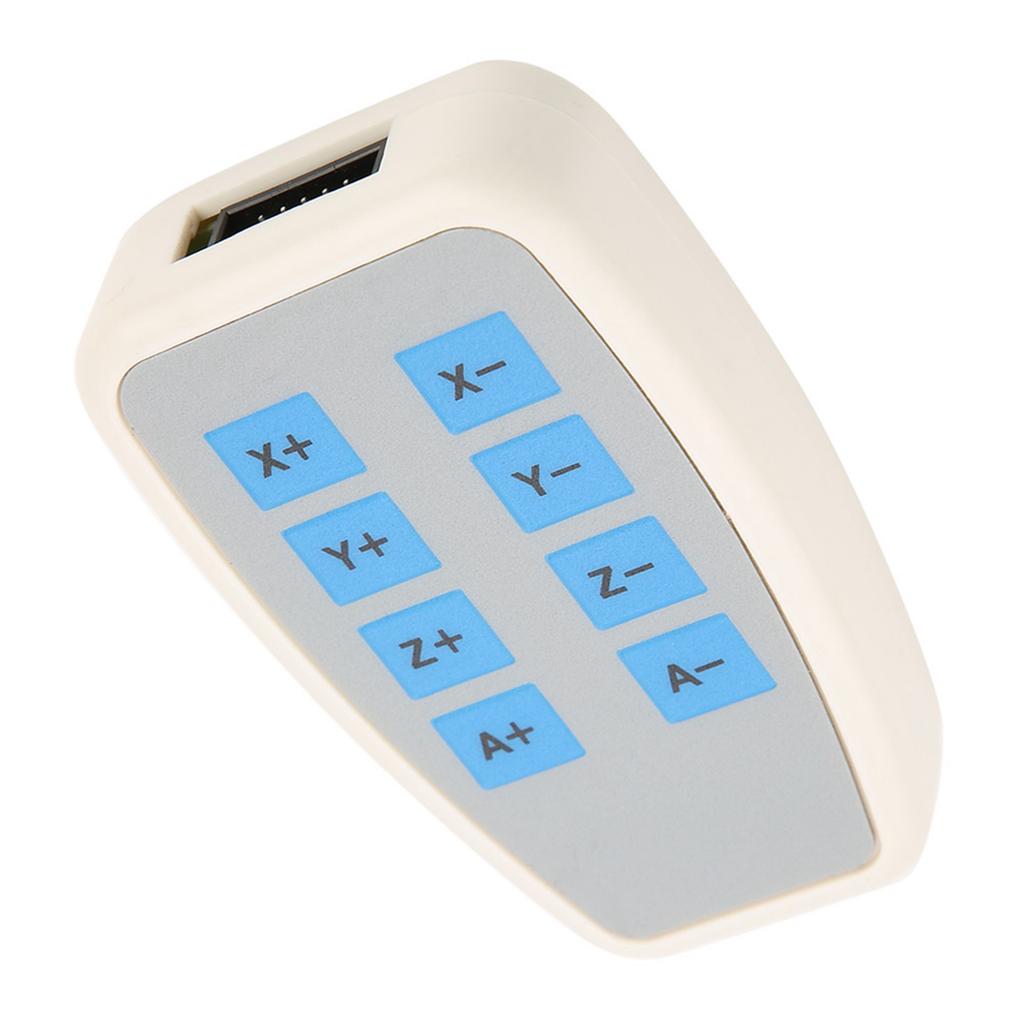

To provide electronic hand wheel interface.
Specifications:
Type:USB Interface Board
Board Size: 9.8 x 6cm 3.96 x 2.36in
Jog handler size:10*6*2.5cm3.9*2.4*1in
Weight: Approx.229g8.1oz
Package list:
1 x interface board
1 x Jog handler
1 x USB cable
1 x flat cable
.The frequency converter interface (AVI+, AVI) is isolated from the computer and the main control circuit, Strong antiinterference ability
Provide 4 output port (5V level), can be connected with the relay module optocoupler, water control, spray and so on.
Support for Windows XP, WIN7, WIN8, WIN10, support for 64bit systems, support for laptops, support for tablets.
The external wide voltage input, 1224V, and antireverse function.
Can be accessed by a total of yang or common cathode, the input level of 5V, with optocoupler input stepper motor driver.
